Page 9: Figure 1 figure 3 figure 5, Figure 2 figure 4 figure 6

SHOWN FROM INSIDE

OF STRUCTURE

SHOWN FROM INSIDE

OF STRUCTURE

SHOWN FROM INSIDE

OF STRUCTURE

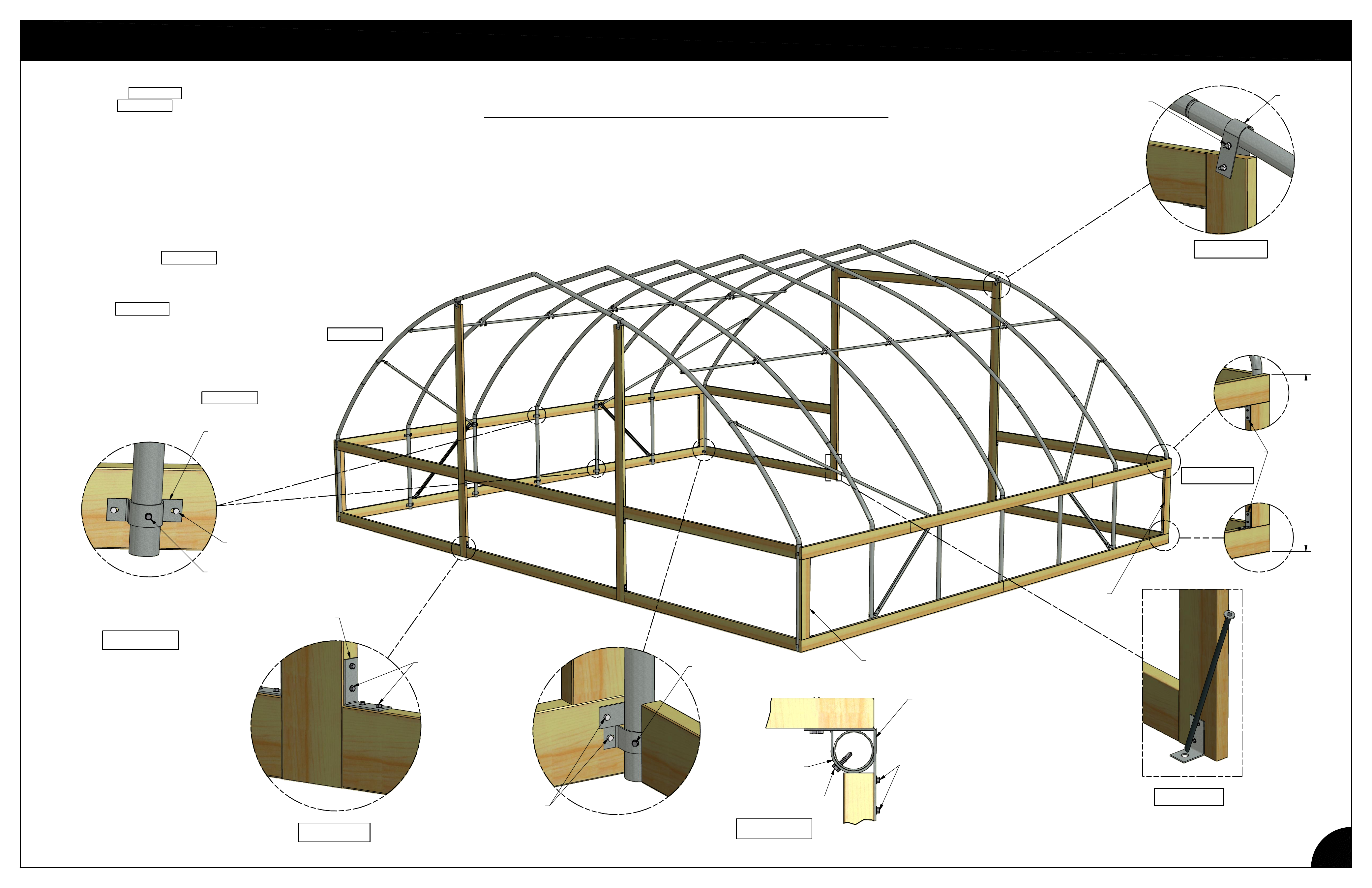

END FRAME & SIDE RAIL HARDWARE

REV: AH-120507

1. ATTACH LOWER SIDE RAILS USING "U" CLAMPS AND 1 1/2"
LAG SCREWS. FIGURE 1 USE END STRAP TO ATTACH RAIL
IN CORNER. FIGURE 2

2. THE UPPER SIDE RAILS ARE NOT NECESSARY FOR THE
GROUND-TO-GROUND ROOF POLY APPLICATIONS. IF UPPER SIDE
RAIL IS REQUIRED, USE 1.66" U-CLAMP & 1.66" END STRAP.

NOTE: IF STRUCTURE WAS PURCHASED WITH THE OPTIONAL DOOR,
SEE PAGE 7 FOR FRAME INSTALLATION INSTRUCTIONS.

3. FOR CUSTOM DOOR OPENINGS, DETERMINE DOOR WIDTH
AND HEIGHT. ATTACH AND PLUMB DOOR JAMBS USING
FITTING AS SHOWN. FIGURE 3 FOR POLY-TEX ROLL-UP END
DOORS, FRAME OPENING TO 8'-0" x 8'-0"

4. SECURE BASE AND INTERMEDIATE RAILS USING "L" BRACKETS
AS SHOWN. FIGURE 4

5. ATTACH FILLER BOARD ON CORNERS AS SHOWN. FIGURE 5

6. SECURE SPIKE ANCHOR BRACKET TO DOOR JAMBS
USING WOODTIGHT SCREWS. DRIVE SPIKE
THROUGH BRACKET TO SECURE VERTICAL
FRAMING AND DOOR JAMB. FIGURE 6

FIGURE 1

FIGURE 3

FIGURE 5

END

SIDE

FIGURE 2

FIGURE 4

FIGURE 6

SHOW FROM INSIDE

OF HOUSE

1 1/2" LAG SCREW

"U" CLAMP

3/8" X 2 1/2" CARRIAGE BOLT,

3/8" LOCK WASHER, &

3/8" HEX NUT

"L" BRACKET

1 1/2" LAG SCREW

"L" BRACKET

END STRAP

1 1/2" WOODTIGHT
SCREWS

FILLER BOARD

FILLER

BOARD

50"

U-BRACKET

1/4"-14 x 1" SELF
DRILLING SCREW

CORNER
MOUNT

*** NOTE: LUMBER SUPPLIED BY OTHERS ***

THE LUMBER MATERIAL LIST THAT POLY-TEX RECOMMENDS IS:

TREATED 2 x 6 MATERIAL 12' PIECES FOR THE LOWER
RAILS - PERIMETER DISTANCE PLUS 10%.

OWNER'S CHOICE OF 2 x 4 OR 2 x 6, 12' PIECES FOR OTHER
RAIL LOCATIONS - PERIMETER DISTANCE PLUS 10%.

ADDITIONALLY - TWO 10' PIECES FOR THE FILLER
BOARDS AND THREE FOR EACH END. (NOT REQUIRED
FOR OPTIONAL STEEL DOOR FRAME.)
