FIGURE 1
INSTRUCTIONS:
1. ASSEMBLE FRAME ON A FLAT SURFACE.
2. SLIDE C-BRACKETS ON FRAME SECTIONS AT DIMENSIONS SHOWN.
3. SECURE HOOP SECTIONS USING (2) 1/4"-14 X 1" SELF DRILLING SCREWS. FIGURE 1
4. SECURE STRUTS AND BOTTOM CHORD WITH C-BRACKETS ACCORDING TO FIGURES 2-4
5. PROCEED WITH FRAME INSTALLATION ON PAGE 5.

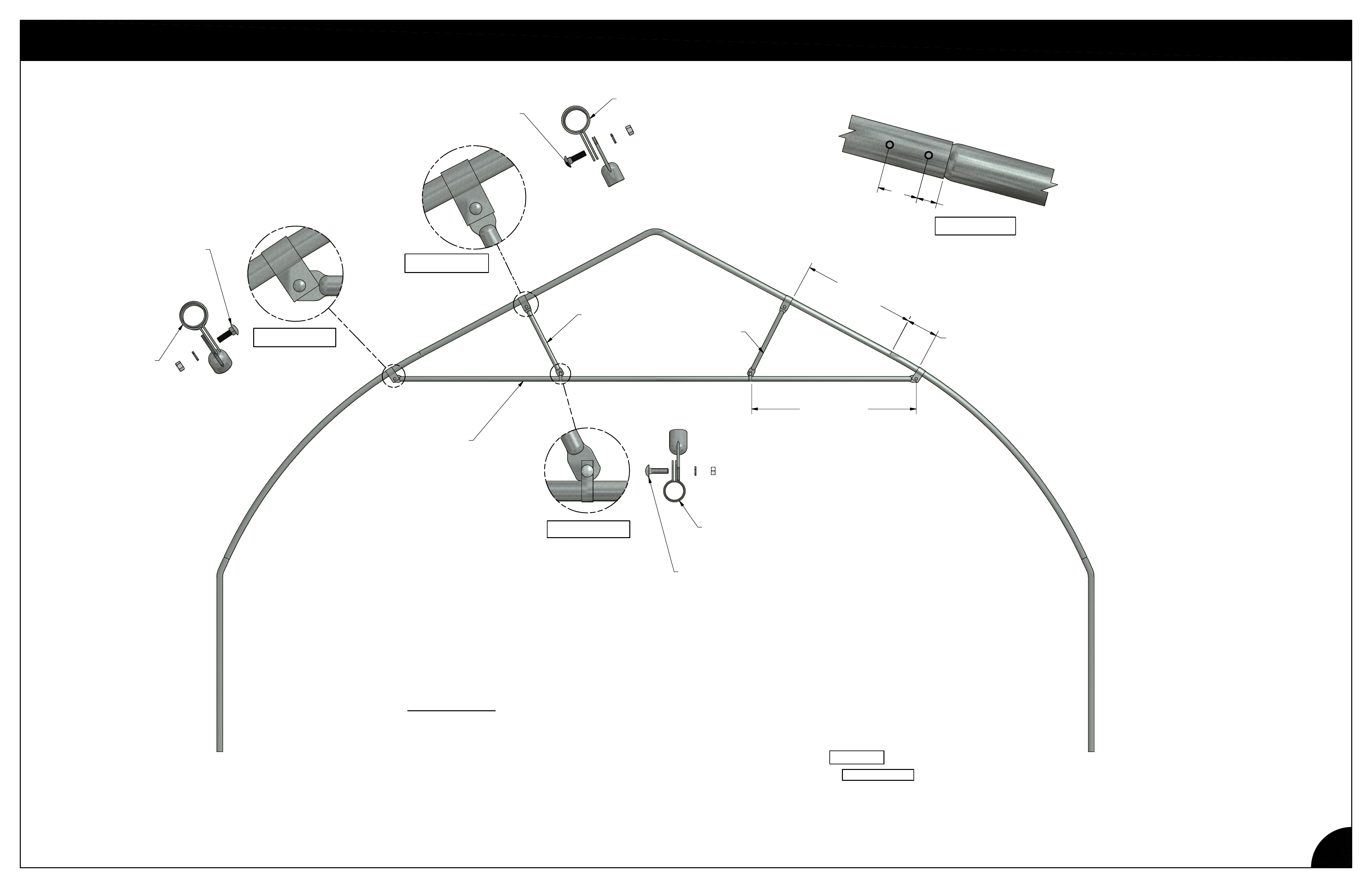

OPTIONAL 20ft GOTHIC TRUSS ASSEMBLY
14
REV: AH-120507
FIGURE 2
FIGURE 4
FIGURE 3
2"
1"
C-BRACKET
3/8" x 1 1/4"
CARRIAGE BOLT,
3/8" LOCK WASHER, &
HEX NUT
3/8" x 1 1/4"
CARRIAGE BOLT,
3/8" LOCK WASHER, &
HEX NUT
C-BRACKET
1.375" BRACE
BAND
5/16" x 1 1/4" CARRIAGE
BOLT, 5/16" LOCK WASHER,
& HEX NUT
145" CHORD
22 1/8" STRUT
22 1/8" STRUT
30 15/16"
BOTH ENDS
45 5/16"
BOTH ENDS
8 11/16"
BOTH ENDS
