Poly-Tex FieldPro Gothic - Manual (Page 4)

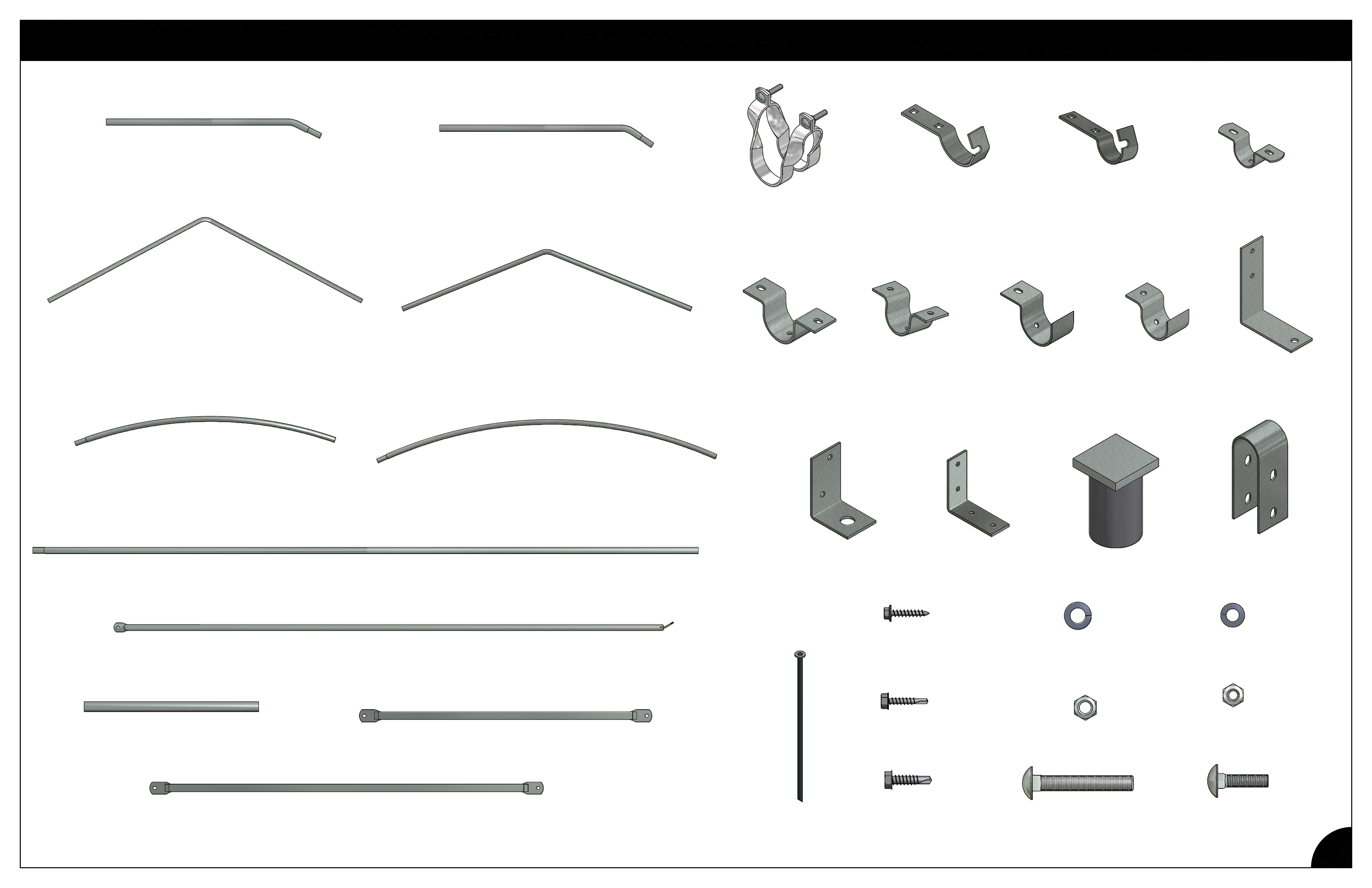

PART IDENTIFICATION - 20' & 24' GOTHIC HIGH TUNNEL
1
REV: AH-120507
HP3503
HT PEAK BRACE 111"
GS2404 - GROUND STAKE 36"
FT4042
CROSS CONNECTOR
FT2079
LONG SPEED
HOOK (2")
FT2080
LONG SPEED
HOOK (1.66")
FT2119
PURLIN FASTENER
1.315
FT2057
2" U-CLAMP
FT2106
R.F. END STRAP
FT1990
R.F. "L" BRACKET
BMS1130
18" SPIKE
HT1000
2" DRIVING TOOL
HP3505 - DIAGONAL BRACE 58"
HP3506 - DIAGONAL BRACE 78"
NB1872
5/16" HEX NUT
NB1862
5/16" LOCK WASHER
NB1807
1 1/2" WOODTITE
SCREW
NB1804
#12-14 x 1" SELF
DRILLING SCREW
NB1832
5/16" X 1 1/4"
CARRIAGE BOLT
FT2104
1.66" U-CLAMP
NB1833
3/8" x 2 1/2"
CARRIAGE BOLT
NB1874
3/8" HEX NUT
NB1864
3/8" LOCK WASHER
FT4053
U-BRACKET
FT2118
SPIKE ANCHOR
BRACKET
FT2117
END STRAP
HP3540
HT STRAIGHT SIDE (GOTHIC 20')
GOTHIC STYLE (20')
HP3543
HT STRAIGHT SIDE (GOTHIC 24')
GOTHIC STYLE (24')
HP3541 - HT PEAK SECTION (GOTHIC 20') HP3544 - HT PEAK SECTION (GOTHIC 24')
HP3542 - HT MIDDLE SECTION (GOTHIC 20')
HP3545 - HT MIDDLE SECTION (GOTHIC 24')
NB1809
1/4"-14 x 1" SELF
DRILLING SCREW
FT2000
CORNER MOUNT
CF1009
RIDGE PURLIN 11'
COMMON GABLE COMPONENTS
