DOOR END FRAME INSTALLATION
7
REV: AH-120507

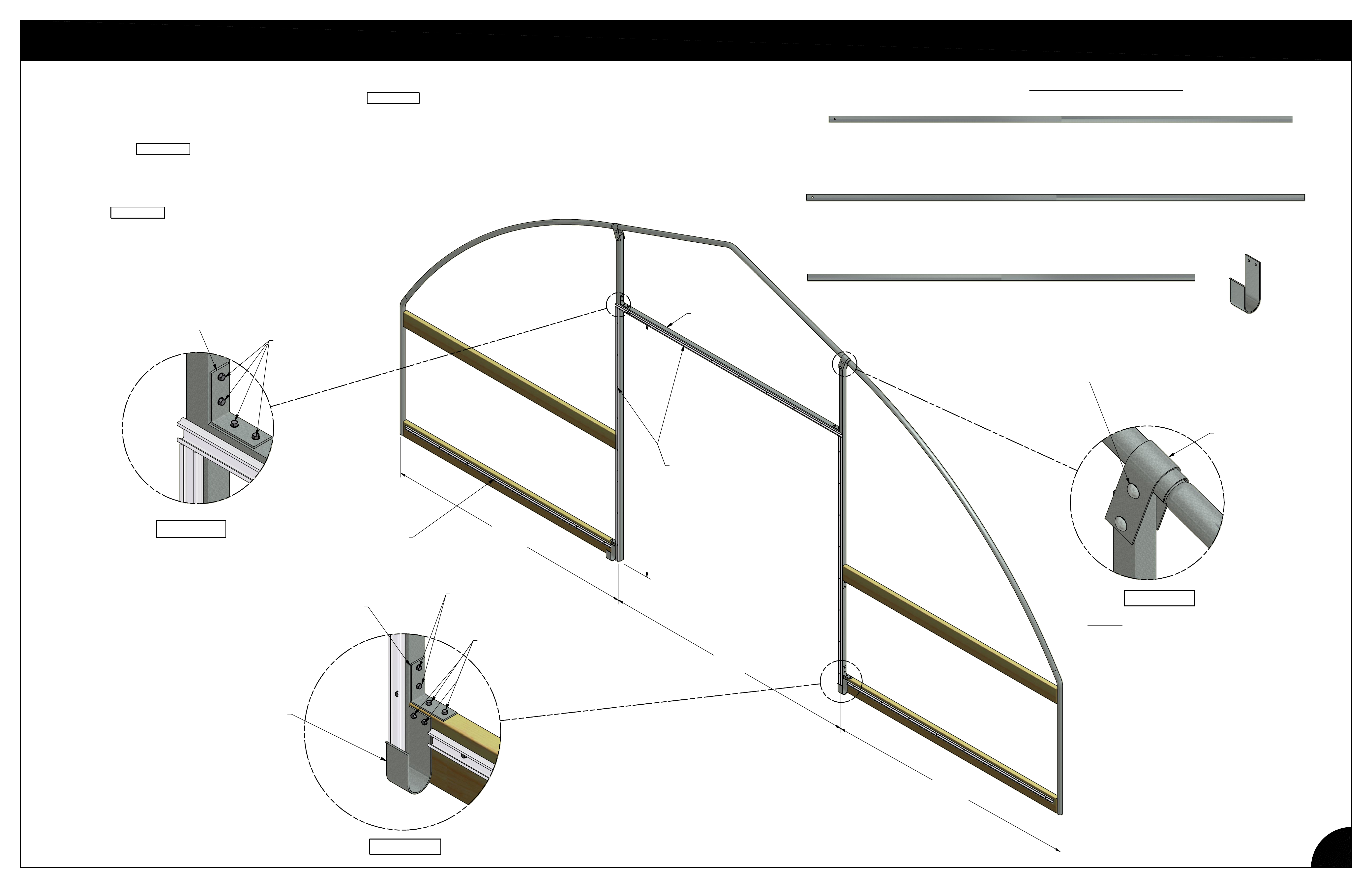

FIGURE 1
1. SLIDE THE DOOR JAMBS OVER THE GROUND STAKES. ATTACH THE DOOR JAMBS TO THE FRAME
OF STRUCTURE MAKING SURE THE JAMBS ARE PLUMB. FIGURE 1 MEASURE 8'-0" FROM THE FINISHED
GRADE, TO MARK THE LOCATION OF THE BOTTOM OF THE DOOR HEADER.
2. AFTER LEVELING THE DOOR HEADER USE TWO "L" BRACKETS TO ATTACH THE DOOR HEADER TO THE
DOOR JAMBS. FIGURE 2
3. OBTAIN WOOD END RAILS NOT SUPPLIED WITH FieldPro AND DOOR JAMB PACKAGES. MEASURE
THE DISTANCE BETWEEN THE SIDE OF THE FRAME AND THE DOOR JAMBS TO CUT THE WOOD. TO
ATTACH THE WOOD END RAILS TO FRAME AND DOOR JAMBS, USE THE "L" BRACKET AND WOOD TIGHT
SCREWS. FIGURE 3
4. INSTALL WIGGLE WIRE BASE AS PER DIAGRAM.
5. SECURE POLY SHEETING TO WIGGLE WIRE
BASE WITH WIGGLE WIRE.
FIGURE 2
FIGURE 3
HT1010
DOOR HEADER (8')
RC1316
ROLL-UP DOOR
CRADLE
HT1004
END VERT/DR JAMB (20' GOTHIC)
HT1006
END VERT/DR JAMB (24' GOTHIC)
NOTE:
MAKE SURE HOLE IS TO THE
TOP OF DOOR JAMB ASSEMBLY
L-BRACKET
#12-14 x 1" SELF
DRILLING SCREWS
U-BRACKET
3/8" X 2 1/2" CARRIAGE BOLT,
3/8" LOCK WASHER, &
3/8" HEX NUT
L-BRACKET
#12-14 x 1" SELF
DRILLING SCREWS
#9 x 1 1/2"
WOOD TIGHT
DOOR HEADER
8'
CRADLE
7'-1
1 1
/4"
8'-1
1/2
"
7
'-
1
1 1
/ 4
"
FASTEN WIGGLE WIRE BASE
TO DOOR FRAME WITH
#12-14 x 1" SELF DRILLING
SCREWS EVERY 12" BOTH
JAMBS AND HEADER
FASTEN WIGGLE WIRE BASE TO
WOOD RAILS WITH #9 x 1 1/2"
WOOD TIGHT SCREW EVERY
12" BOTH SIDES
PART IDENTIFICATION
