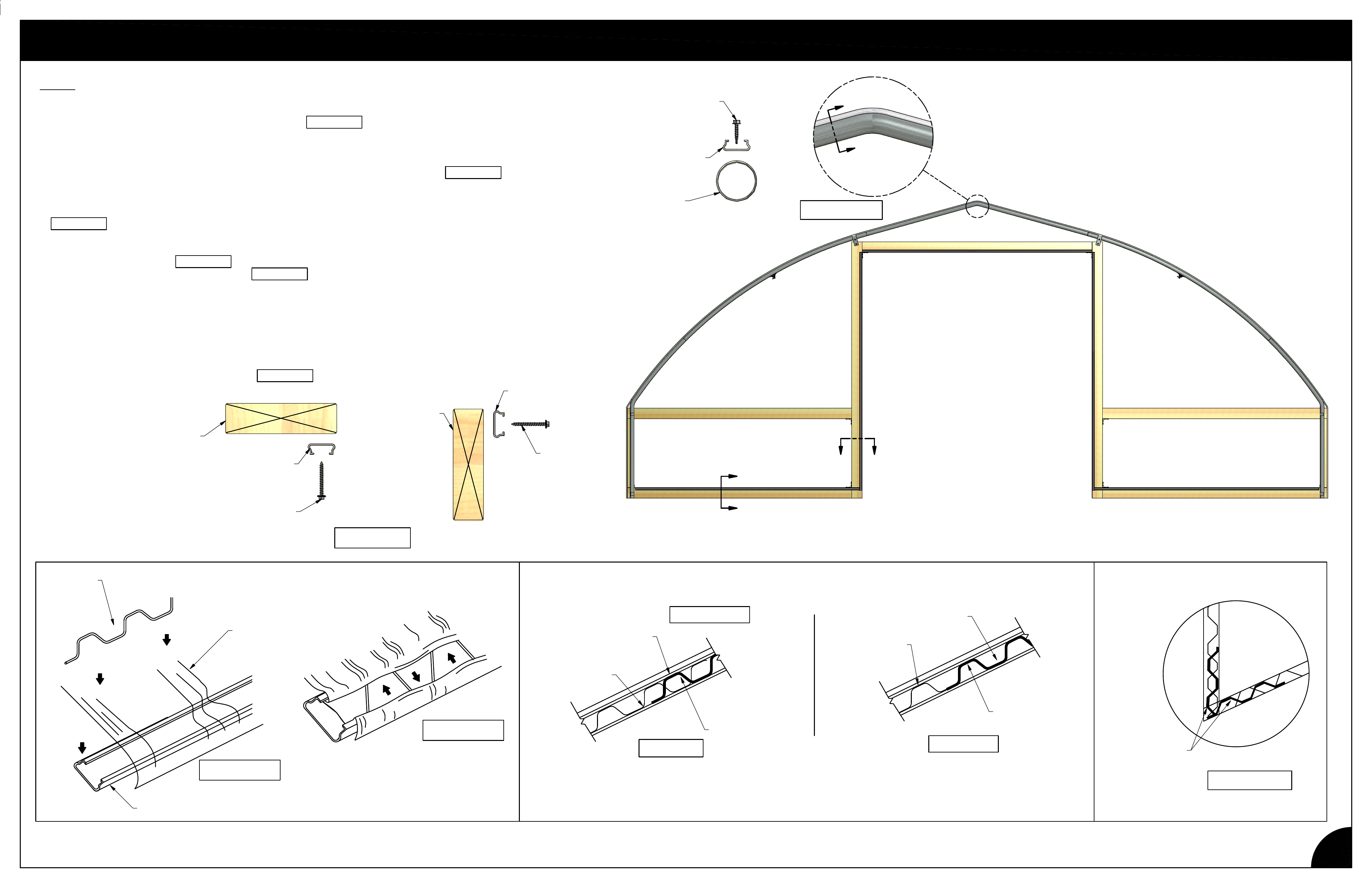

END WALL POLY INSTALLATION
8
REV: AH-120507
FIGURE 6
A
A
SECTION A-A
SECTION B-B
SECTION C-C
NOTE: REFER TO PAGE 7 FOR OPTIONAL METAL JAMB.
1. ATTACH WIGGLE WIRE BASE ON THE OUTSIDE FLUSH WITH THE TOP OF THE BASE
BOARD AND THE EDGES OF THE DOOR JAMB. FIGURE 1
2. INSTALL WIGGLE WIRE BASE OVER END FRAMES BEGINNING AT THE BOTTOM OF THE
WOOD FRAMING ON EACH SIDE. INSTALL WIGGLE WIRE BASE OVER TOP OF THE END
WALL FITTINGS. (DO NOT INTERUPT WIGGLE WIRE BASE AT FITTINGS) FIGURE 2
3. AFTER THE WIGGLE WIRE BASE IS ATTACHED, POSITION THE POLY FILM OVER THE
HIGH TUNNEL END FRAME BEING SURE TO HAVE EQUAL EXCESS FILM ON ALL SIDES.
FIGURE 3
4. THEN INSTALL THE WIGGLE WIRE USING A SIDE TO SIDE MOTION WHILE SEATING THE
WIRE INTO THE BASE. FIGURE 4 WHEN INSTALLING WIGGLE WIRE, BE SURE TO
OVERLAP ONE SECTION AT JOINTS. FIGURE 5
5. IF THE POLY IS INSTALLED ON A COOL DAY, IT WILL EXPAND AS THE
TEMPERATURE WARMS. IT MIGHT BE NECESSARY TO RETIGHTEN THE SHEET OF
PLASTIC. AFTER THE WIGGLE WIRE HAS BEEN INSTALLED, PRESS ALL WIGGLE WIRE
FIRMLY INTO BASE TO ENSURE IT HAS BEEN SEATED PROPERLY.
6. AFTER ALL WIGGLE WIRE IS INSTALLED, CUT AND INSTALL ADDITIONAL 12" PIECES OF
WIRE TO REINFORCE ALL CORNERS. FIGURE 6
FIGURE 2
FIGURE 1
FIGURE 2
FIGURE 5
RIGHT
WRONG
POLY
WIGGLE
WIRE
POLY-FASTENER
FIRST WIGGLE
WIRE SECTION
SECOND WIGGLE
WIRE SECTION
OVERLAP
ONE SECTION
FIRST WIGGLE
WIRE SECTION
SECOND WIGGLE
WIRE SECTION
8"-12" WIGGLE
WIRE
BASE
BOARD
HIGH
TUNNEL
FRAME
WIGGLE WIRE
BASE
WIGGLE WIRE
BASE
FIGURE 4
FIGURE 3
NO OVERLAP
DOOR JAMB
BOARD
WIGGLE WIRE
BASE
#12-14 x 1" SELF
DRILLING SCREW
@ 1'-0" ON CENTER TYP
WOODTIGHT
SCREW @ 1'-0"
ON CENTER
TYP
WOODTIGHT SCREW
@ 1'-0" ON CENTER TYP
