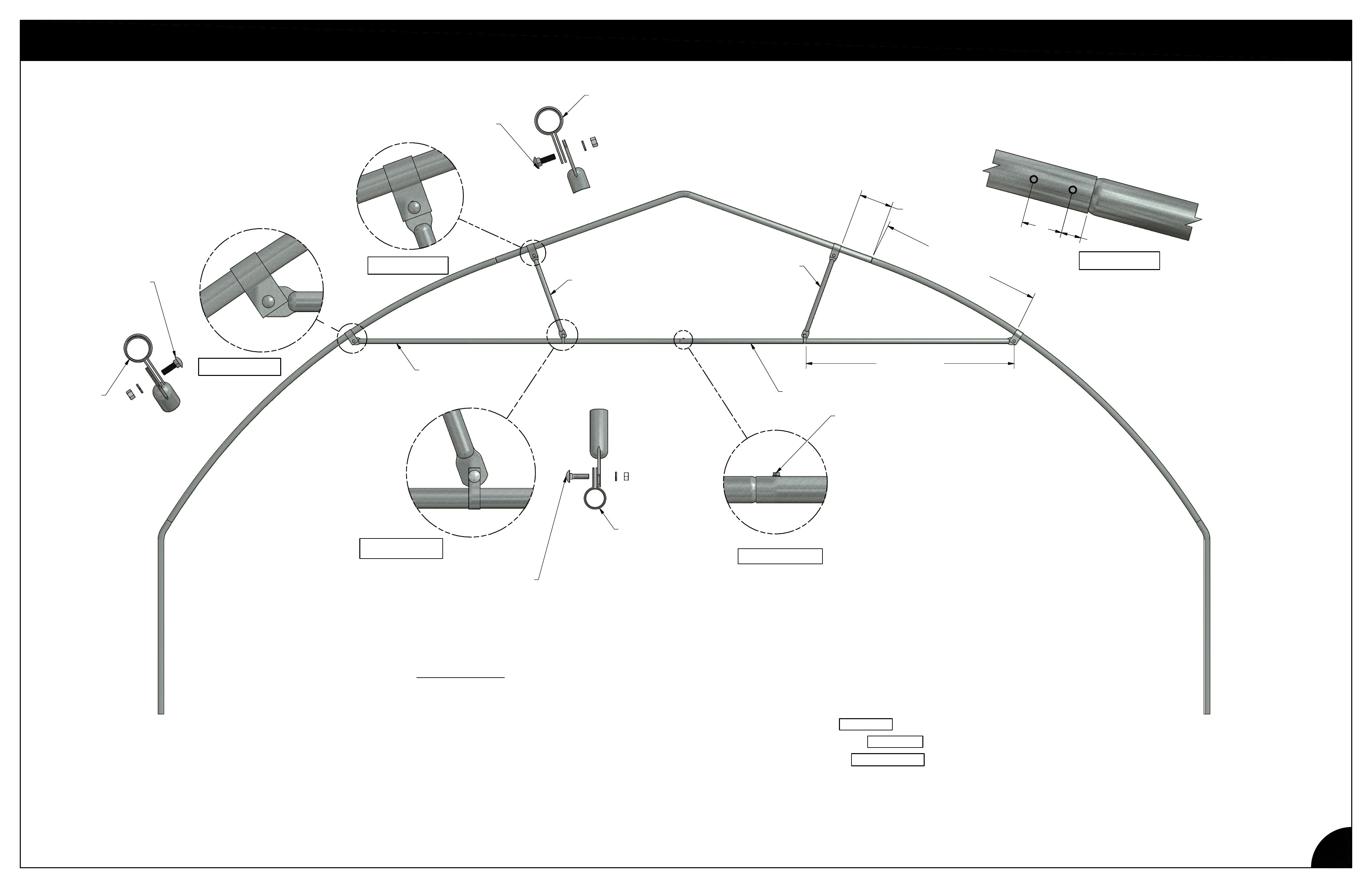

FIGURE 1
OPTIONAL 24ft GOTHIC TRUSS ASSEMBLY
15
REV: AH-120507
INSTRUCTIONS:
1. ASSEMBLE FRAME ON A FLAT SURFACE.
2. SLIDE C-BRACKETS ON FRAME SECTIONS AT DIMENSIONS SHOWN.
3. SECURE HOOP SECTIONS USING (2) 1/4"-14 X 1" SELF DRILLING SCREWS. FIGURE 1
4. FASTEN BOTTOM CHORD TOGETHER WITH #12-14 x 1" SELF DRILLING SCREW. FIGURE 2
5. SECURE STRUTS AND BOTTOM CHORD WITH C-BRACKETS ACCORDING TO FIGURES 3-5
6. PROCEED WITH FRAME INSTALLATION ON PAGE 5.
FIGURE 2
FIGURE 3
FIGURE 5
FIGURE 4
1"
2"
9 1/8"
BOTH ENDS
44 9
/16"
BO
TH E
ND
S
3/8" x 1 1/4"
CARRIAGE BOLT,
3/8" LOCK WASHER, &
HEX NUT
C-BRACKET
92 3/4" CHORD SWD
92 3/4" CHORD
25" STRUT
25" STRUT
3/8" x 1 1/4"
CARRIAGE BOLT,
3/8" LOCK WASHER, &
HEX NUT
C-BRACKET
5/16" x 1 1/4"
CARRIAGE BOLT,
5/16" LOCK WASHER, &
HEX NUT
1.375" BRACE
BAND
#12-14 x 1" SELF
DRILLING SCREW
57 5/16"
BOTH ENDS
