Poly-Tex FieldPro Gothic - Manual (Page 5)

CN
CN
STRING

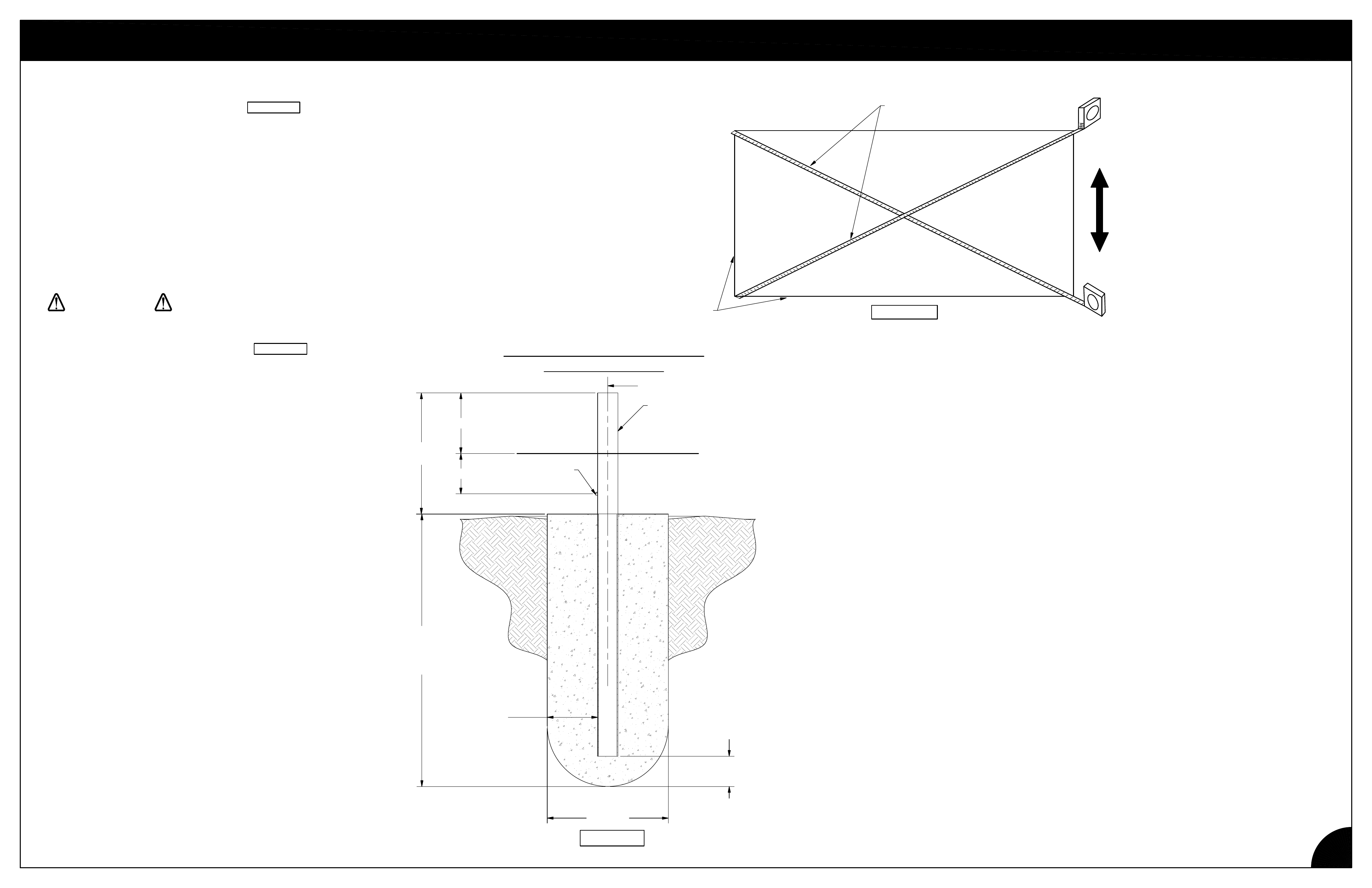

1. LAY OUT THE FOUR SIDES OF THE BUILDING ACORDING
TO THE PLAN DIMENSIONS PROVIDED. DRIVE A TEMPORARY
STAKE FIRMLY IN EACH CORNER. FIGURE 1
2. TO SQUARE UP THE STRUCTURE, MEASURE DIAGONALLY.
THESE MEASUREMENTS SHOULD BE THE SAME. ADJUST
THE POSITIONS OF ONE PAIR OF END STAKES, WHILE
MAINTAINING THE PROPER SPACING, UNTIL THE DIAGONALS
ARE EQUAL. ONCE THIS IS COMPLETE, CHECK ALL FOUR
SIDES OF THE LAYOUT FOR CORRECT MEASUREMENTS.
3. FOR DRIVEN GROUND STAKES OR GROUND STANDS, SKIP
TO STEP 7.
4. DETERMINE WHETHER THE BUILDING WILL BE INSTALLED
LEVEL OR TO A DEFINED SLOPE. SET UP ELEVATION
REFERENCE MARKERS OUTSIDE EACH CORNER.
5. WHEN LOCAL WIND OR SOIL CONDITIONS WARRANT
CONCRETE PIERS FOR POST ANCHORS, INSTALL THE
GROUND STAKES ACCORDING TO FIGURE 2 .
6. USE A TIGHT STRING LINE BETWEEN CORNER
POSTS AND PLACE A MARK ON EACH GROUND
STAKE 4" BELOW THE STRING. FOR LONGER
STRUCTURES, SIGHT ALONG STRING AND
SUPPORT IT EVERY 50' AT AN ELEVATION THAT
APPEARS VISUALLY STRAIGHT. INSTALL A SELF
DRILLING SCREW ON THE INSIDE PORTION OF
THE POST AT EACH MARK.
INSTALLING GROUND STAKES
IN AUGERED PIER
FIGURE 2
FIGURE 1
TOP OF
FOOTING
TOP OF
GROUND
STAKE
GROUND STAKE INSTALLATION
* * * CONCRETE PIER OPTION * * *
2
REV: AH-120507
1/4"-14 x 1" SELF
DRILLING SCREW
GROUND STAKE
DEPTH OF FOOTING
TO CONFORM TO
LOCAL BUILDING CODES.
PROVIDE 27" MINIMUM.
12" MIN
3" MIN
BOTTOM
COVER
4" MIN
SIDE COVER
12"
MAXIMUM
GROUND STAKE, FOOTING
6"
4"
MEASURED LENGTHS
SHOULD MATCH
SEE LAYOUTS
FOR DIMENSIONS
IMPORTANT
