Poly-Tex KOOL HOUSE - Manual (Page 7)

SIDE HOOP SIDE HOOP
TOP HOOP
#12-14 x 3/4" SELF
DRILLING SCREW
4'
6'
#12-14 x 3/4" SELF
DRILLING SCREW
AFTER HOOPS ARE RAISED, SECURE THEM TO THE GROUND
STAKES WITH (2) - #12-14 x 3/4" SELF DRILLING SCREWS.
PURLIN FASTENER
OPTIONAL SIDE PURLIN
#12-14 x 3/4" SELF
DRILLING SCREW
HOOP
HOOP
GROUND STAKE
RIDGE PURLINS
4'
OPTIONAL SIDE PURLINS
LONG SPEED
HOOK
DIAGONAL
BRACE
HOOP

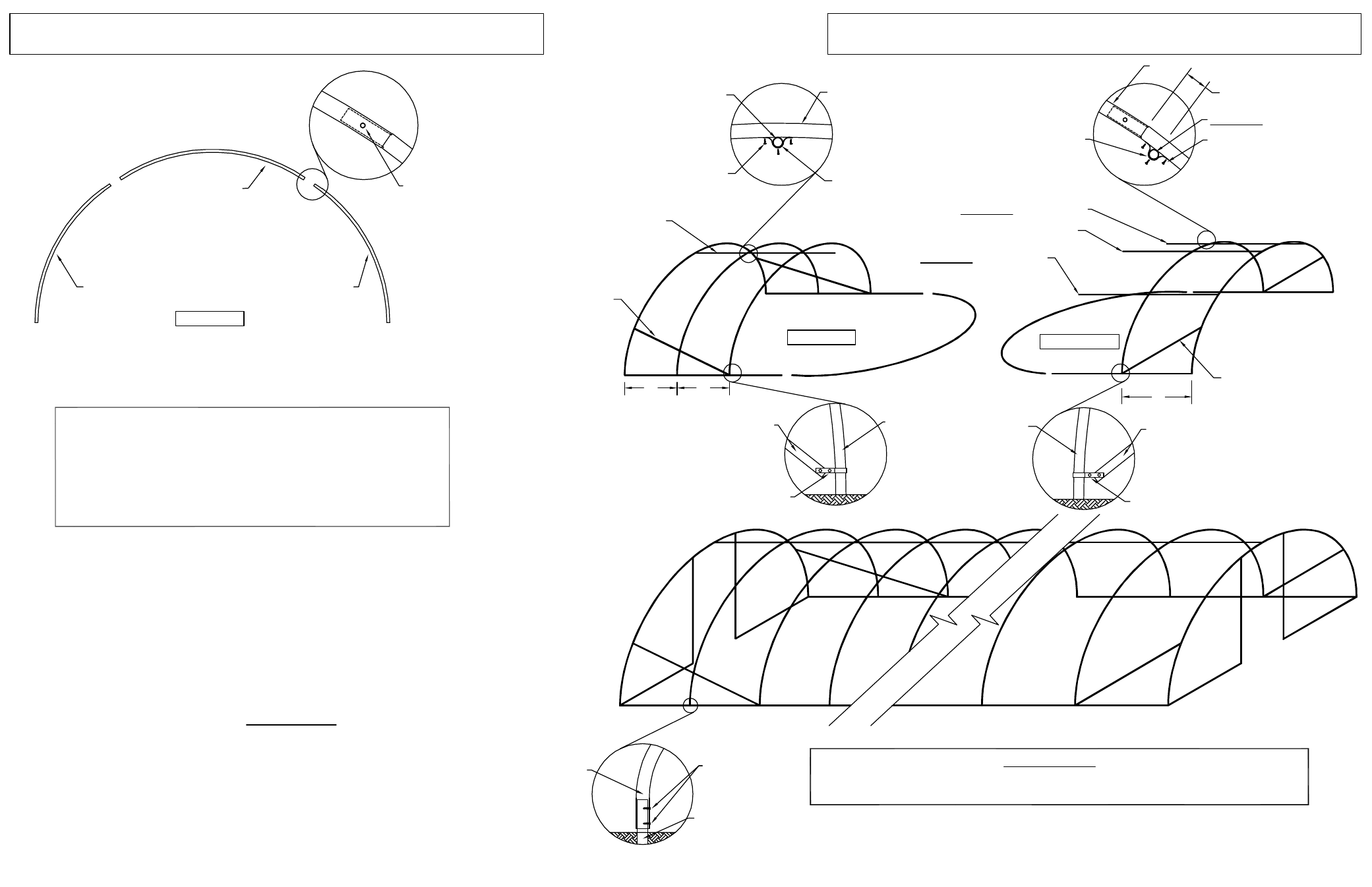

ASSEMBLE THE HOOP SECTIONS NEAR THE GROUND STAKES
THE FRAMES WILL STAND ON. (FIGURE ONE)
NOTE: 20' KOOL HOUSE IS CONSTRUCTED WITH
A FOUR PIECE HOOP.
IT MAY BE NECESSARY TO PUSH HOOP
ENDS TOGETHER TO SLIDE OVER GROUND
STAKES.
IF OPTION INCLUDES 4' HOOP SPACING, RAISE THREE HOOPS
THEN ATTACH DIAGONAL BRACES TO THE FIRST AND
THIRD HOOPS USING LONG SPEED HOOKS. (FIGURE TWO)
IF OPTION INCLUDES 6' SPACING, RAISE TWO HOOPS THAN
ATTACH DIAGONAL BRACES USING LONG SPEED HOOKS.
(FIGURE THREE)
ATTACH THE RIDGE PURLIN JUST BELOW THE CENTER OF THE
TOP HOOP USING PURLIN FASTENERS. (FIGURE TWO) FOR
ADDITIONAL SIDE PURLINS (OPTIONAL) REFER TO (FIGURE
THREE).
CONTINUE RAISING HOOPS AND ATTACHING PURLINS UNTIL
DESIRED LENGTH OF HOUSE IS REACHED. ATTACH DIAGONAL
BRACES TO OPPOSITE END OF HOUSE AS DIRECTED ABOVE.
FIGURE ONE
FIGURE TWO
FIGURE THREE
IMPORTANT
EVENLY SPACED ON
BOTH SIDE HOOPS
LONG SPEED
HOOK
HOOP
DIAGONAL
BRACE
DIAGONAL BRACE
PURLIN FASTENER
RIDGE PURLIN
#12-14 x 3/4" SELF
DRILLING SCREW
HOOP
RIDGE PURLINS
OPTIONAL SIDE PURLINS
GM2950
DIAGONAL BRACE
GM2940
HOOP ASSEMBLY
FIVE
REV: AC-120529 35345-0
KOOL HOUSE
