Layout & ground stake installation four, Kool house, 16' with 4' hoop spacing – Poly-Tex KOOL HOUSE User Manual
Page 6: 16' with 6' hoop spacing, 18' with 4' hoop spacing, 18' with 6' hoop spacing, 20' with 4' hoop spacing, 20' with 6' hoop spacing
18'-0"
20'-0"
16'-0"
4'-0" C TO C
16'-0"
6'-0" C TO C
18'-0"
4'-0" C TO C
20'-0"
6'-0" C TO C
4'-0" C TO C
6'-0" C TO C
18"
6"
LENGTH OF GREENHOUSE CENTER
TO CENTER OF GROUND STAKES.
16' WITH 4' HOOP SPACING
5'-11"
4'-2"
5'-11"
5'-11"
4'-2"
5'-11"
16' WITH 6' HOOP SPACING
LENGTH OF GREENHOUSE CENTER
TO CENTER OF GROUND STAKES.
LENGTH OF GREENHOUSE CENTER
TO CENTER OF GROUND STAKES.
18' WITH 4' HOOP SPACING
6'-11"
4'-2"
6'-11"
6'-11"
4'-2"
6'-11"
LENGTH OF GREENHOUSE CENTER
TO CENTER OF GROUND STAKES.
18' WITH 6' HOOP SPACING
LENGTH OF GREENHOUSE CENTER
TO CENTER OF GROUND STAKES.
20' WITH 4' HOOP SPACING
7'-11"
4'-2"
7'-11"
7'-11"
4'-2"
7'-11"
20' WITH 6' HOOP SPACING
LENGTH OF GREENHOUSE CENTER
TO CENTER OF GROUND STAKES.
GROUND STAKE
STRING LINE
LINE LEVEL
NOTE: ALL MEASUREMENTS CENTER-TO-CENTER OF GROUND STAKES.
STRING LINES
STAKES
GROUND
ONE OF THE FASTEST AND EASIEST
WAYS TO SQUARE UP THE STRUCTURE
IS TO MEASURE DIAGONALLY. THESE
MEASUREMENTS SHOULD BE THE SAME.
ONCE THIS IS COMPLETE, CHECK ALL
FOUR SIDES OF THE LAYOUT FOR
CORRECT MEASUREMENTS.
L
L
L
L
L
L
L
L
L
L
L
L
6"
18"
USE THE DRIVING TOOL TO DRIVE THE GROUND STAKES 18 INCHES INTO THE GROUND
LEAVING APPROXIMATELY 6 INCHES ABOVE GROUND FOR SECURING HOOP.
POLY-TEX RECOMMENDS CONCRETE FOOTINGS TO BE USED IN LOOSE SOIL OR
EXTREMELY WINDY CONDITIONS.
FOR MODERATE WIND AND SOIL CONDITIONS, INSTALL GROUND STANDS. DIG AND SET
GROUND STANDS APPROXIMATELY 18 INCHES IN THE GROUND LEAVING APPROXIMATELY
6 INCHES ABOVE THE GROUND FOR SECURING THE HOOP. COMPACT FILL.
OPPOSITE END
DIMENSIONS
ARE IDENTICAL
OPPOSITE END
DIMENSIONS
ARE IDENTICAL
OPPOSITE END
DIMENSIONS
ARE IDENTICAL
OPPOSITE END
DIMENSIONS
ARE IDENTICAL
OPPOSITE END
DIMENSIONS
ARE IDENTICAL
OPPOSITE END
DIMENSIONS
ARE IDENTICAL
GROUND
STAKE
GROUND
STAKE
GROUND
STAND
6"
18"
COMPACTED
FILL
DRIVING
TOOL

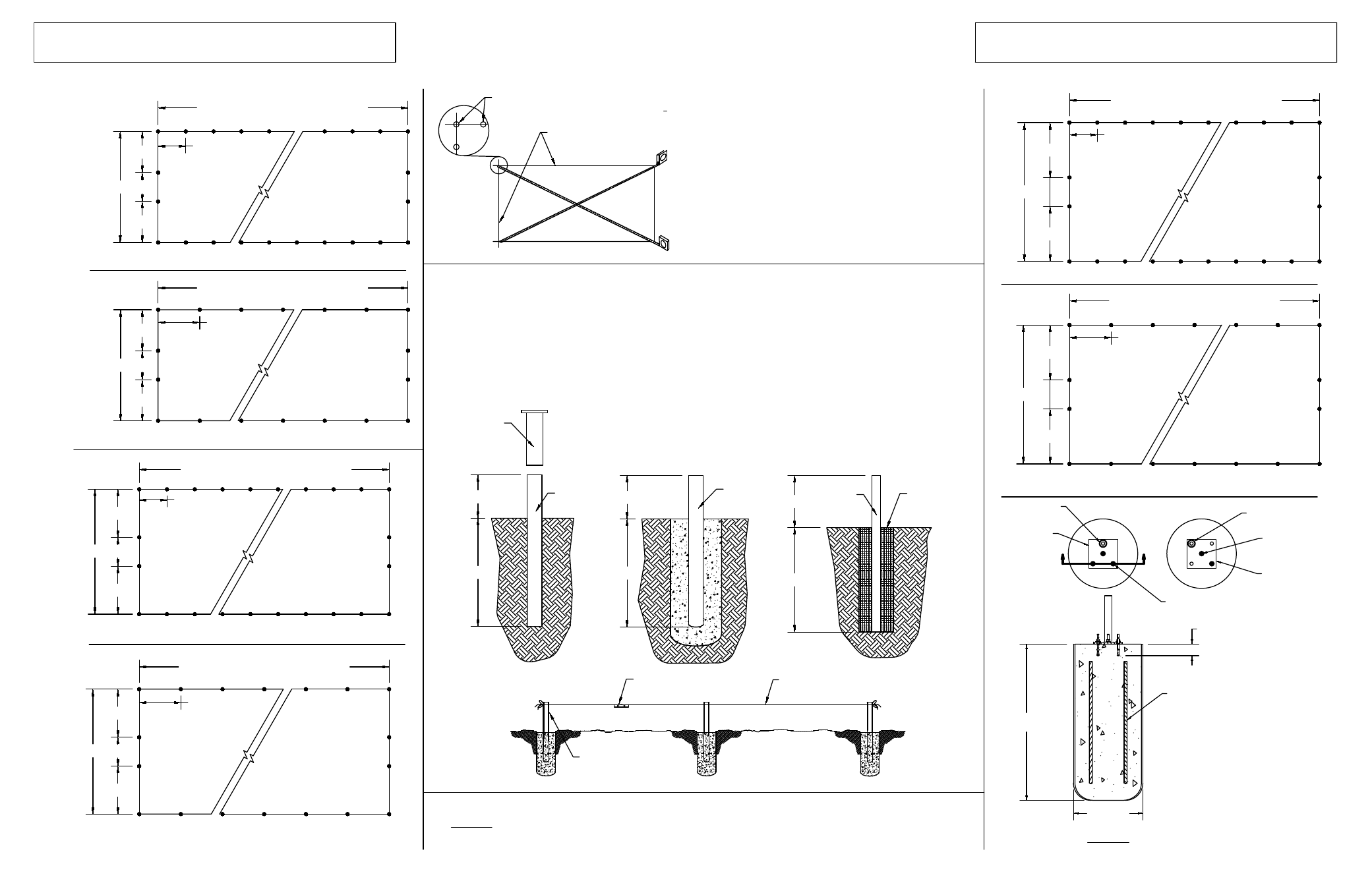

LAYOUT & GROUND STAKE INSTALLATION
FOUR
REV: AC-120529
KOOL HOUSE
#4 VERTICAL
REBAR (3)
"24"
MINIMUM
"1-3/4" MINIMUM EMBEDMENT
A
A
KH1012
1.315"x3/8"
CORNER LEG STAND
NB1929
EXPANSION ANCHOR
3/8 x 3 3/4" (2)
NB1929 EXPANSION ANCHOR 3/8 x 3 3/4" (3)
KH1011
1.315"x3/8" LEG STAND
(4 HOLE)
FT1562
BASE PLATE
5"x5"X3/8" (9/16') 4H
FT1558
BASE PLATE
5"x5"X3/8" (9/16') 4H
12'-0"
CONCRETE
PIER
ALTERNATELY: PLATE MAY BE ANCHORED TO A
5" MINIMUM CONCRETE SLAB.
SECTION A-A
