Poly-Tex KOOL HOUSE - Manual (Page 14)

1 1/2" VERTICAL
DOOR FRAME
DOOR
#12-14 x 3/4" SELF
DRILLING SCREW
HINGE WIGGLE
WIRE BASE
DOOR CATCH
#12-14 x 3/4" SELF
DRILLING SCREW
#12-14 x 3/4" SELF
DRILLING SCREW
WIGGLE WIRE
BASE (OPTIONAL)
1/4"
CLEARANCE
1/4"
CLEARANCE
DOOR
HEADER
DOOR
STOP
DOOR
(SHADED)
DRIP EDGE OF
DOOR HEADER
GROUND
LEVEL
ROLL FORM
END BASE
ROLL FORM
END BASE
WIGGLE
WIRE
POLY
POLY-FASTENER
OVERLAP
ONE SECTION
SECOND
WIGGLE
WIRE
SECTION
FIRST WIGGLE
WIRE SECTION
RIGHT
FIGURE 2
SIDE VIEW OF
END WALL DOOR
TOP VIEW OF END WALL DOOR
FIGURE 1
SECOND WIGGLE
WIRE SECTION
FIRST WIGGLE
WIRE SECTION
WRONG
FIGURE 3
8"-12" WIGGLE
WIRE

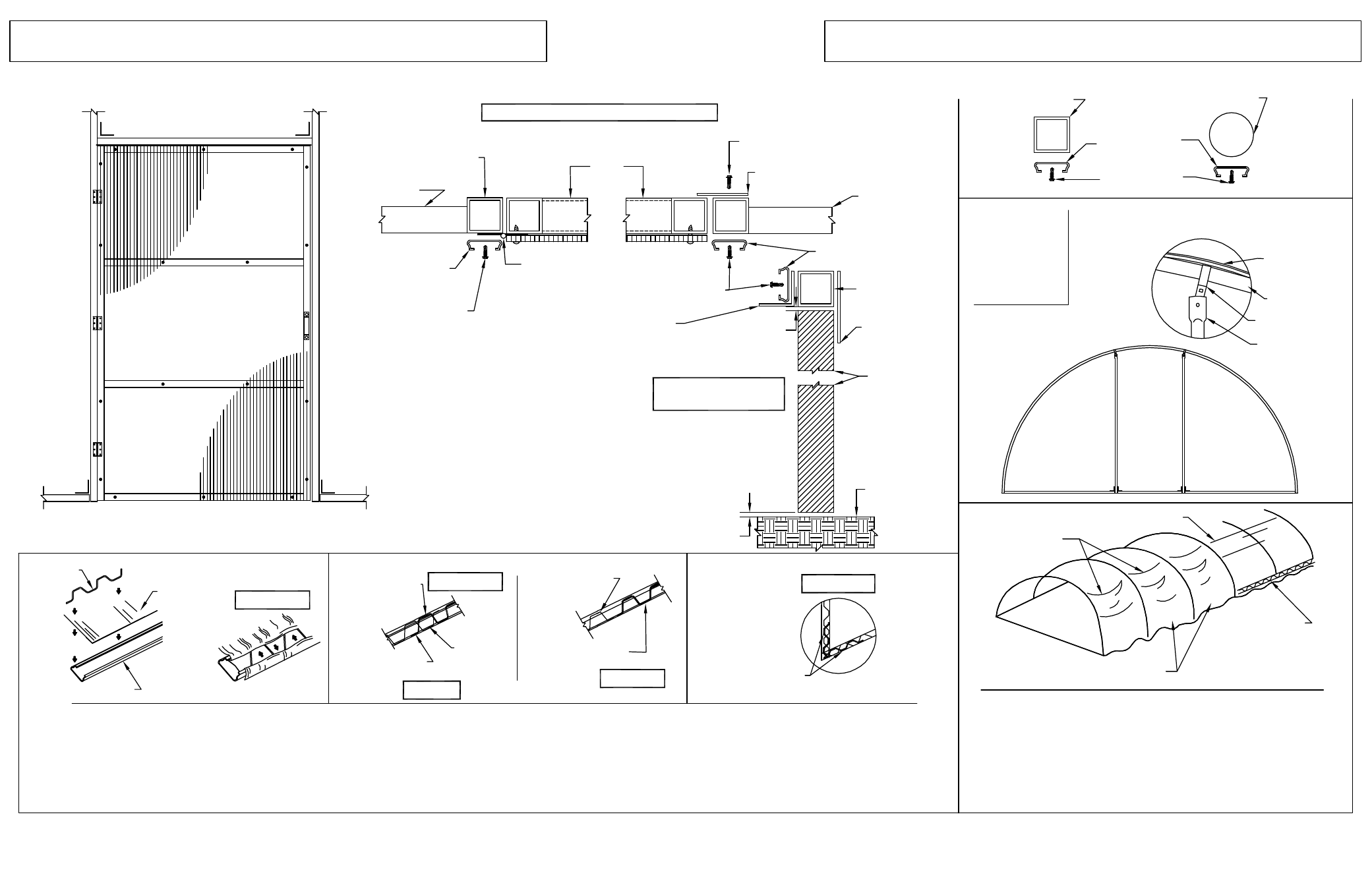

NOTE: AFTER THE WIGGLE WIRE BASE IS ATTACHED, POSITION THE POLY FILM OVER THE KOOL HOUSE FRAME (BEING SURE TO
HAVE EQUAL EXCESS FILM ON ALL SIDES) THEN INSTALL THE WIGGLE WIRE. USE AN UP & DOWN MOTION WHILE SEATING THE
WIRE INTO THE BASE. (SEE FIGURE 1) WHEN INSTALLING WIGGLE WIRE BE SURE TO OVERLAP ONE SECTION. (SEE FIGURE 2)
AFTER ALL WIGGLE WIRE IS INSTALLED, CUT REMAINING WIRES INTO 8"-12" PIECES AND USE TO REINFORCE ALL CORNERS.
(SEE FIGURE 3)
1 1/2" VERTICAL
WIGGLE WIRE
BASE (OPTIONAL)
#12-14 x 3/4" SELF
DRILLING SCREW
KOOL HOUSE
FRAME SECTION
POLY DROOP
WIGGLE WIRE
INSTALLED
WIGGLE WIRE
NOT INSTALLED
TENSIONED POLY
NOTE: IF THE ROOF POLY IS INSTALLED ON A COOL
DAY, IT MAY EXPAND AS THE TEMPERATURE WARMS.
IT MIGHT BE NECESSARY TO RETENTION THE SHEET
OF PLASTIC. ALSO, AFTER THE WIGGLE WIRE HAS
BEEN INSTALLED, USING A BLUNT OBJECT, PRESS ALL
WIGGLE WIRE FIRMLY INTO BASE TO ENSURE IT HAS
BEEN SEATED PROPERLY.
WIGGLE WIRE
BASE
KOOL HOUSE
FRAME SECTION
LONG SPEED HOOK
1 1/2" VERTICAL
TO INSTALL
WIGGLE WIRE
BASE, BEND
BASE OVER
THE LONG
SPEED HOOKS
OPTIONAL PARTS
TWELVE
REV: AC-120529 57089-3
