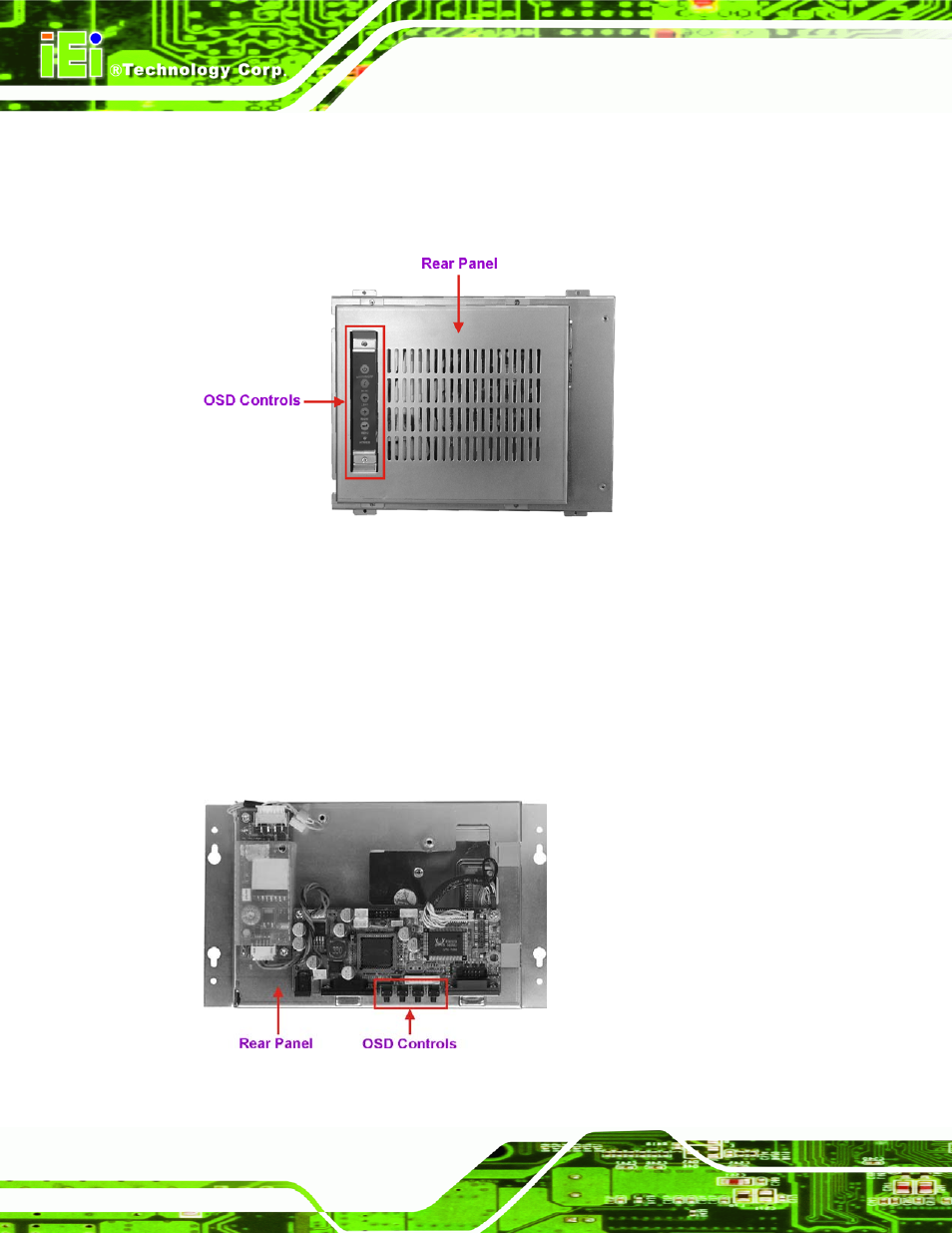

Figure 2-1 shows the location of the rear panel variant 1 OSD controls.
Figure 2-1: Rear Panel Variant 1
2.2.3 Rear Panel Variant 2
The following model of the LCD-KIT series LCD monitor has OSD control buttons located
on the bottom of the rear panel:
LCD-KIT65GH
Figure 2-2 shows the location of the rear panel variant 2 OSD controls.
Figure 2-2: Rear Panel Variant 2
