LCD-KIT
Page 4

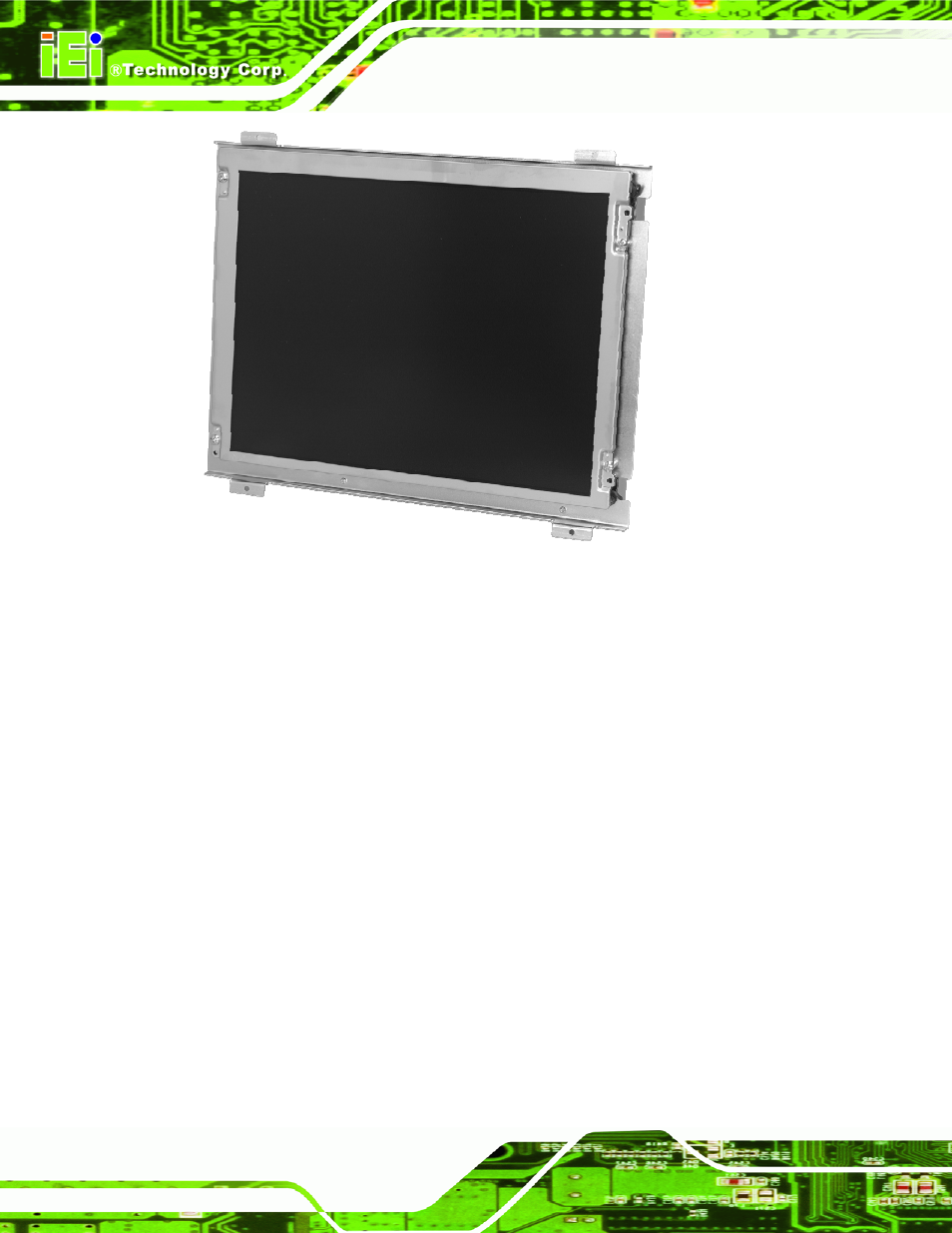

Figure 1-1: Typical LCD-KIT Front View
1.3.2 Rear View
The rear of the LCD-KIT series LCD monitor is a metal chassis. An on screen display
(OSD) control button panel, if present, is located vertically on the left side of the chassis
with the following control buttons:
ƒ LCD On/Off
ƒ Auto
ƒ Left
ƒ Right
ƒ Menu
The OSD panel also has one power LED.
3
Figure 1-2 shows a typical LCD-KIT rear panel.
