LCD-KIT
Page 6
1.3.4 AD Board
The LCD-KIT series LCD monitor AD boards provide a wide variety of control interfaces,
receiving and managing signals from a CPU card through cabling.
AV-6600 AD board as a sample of a typical AD board for the LCD-KIT series LCD monitor.
Refer to Chapter
for a complete description of AD boards and their connectors.

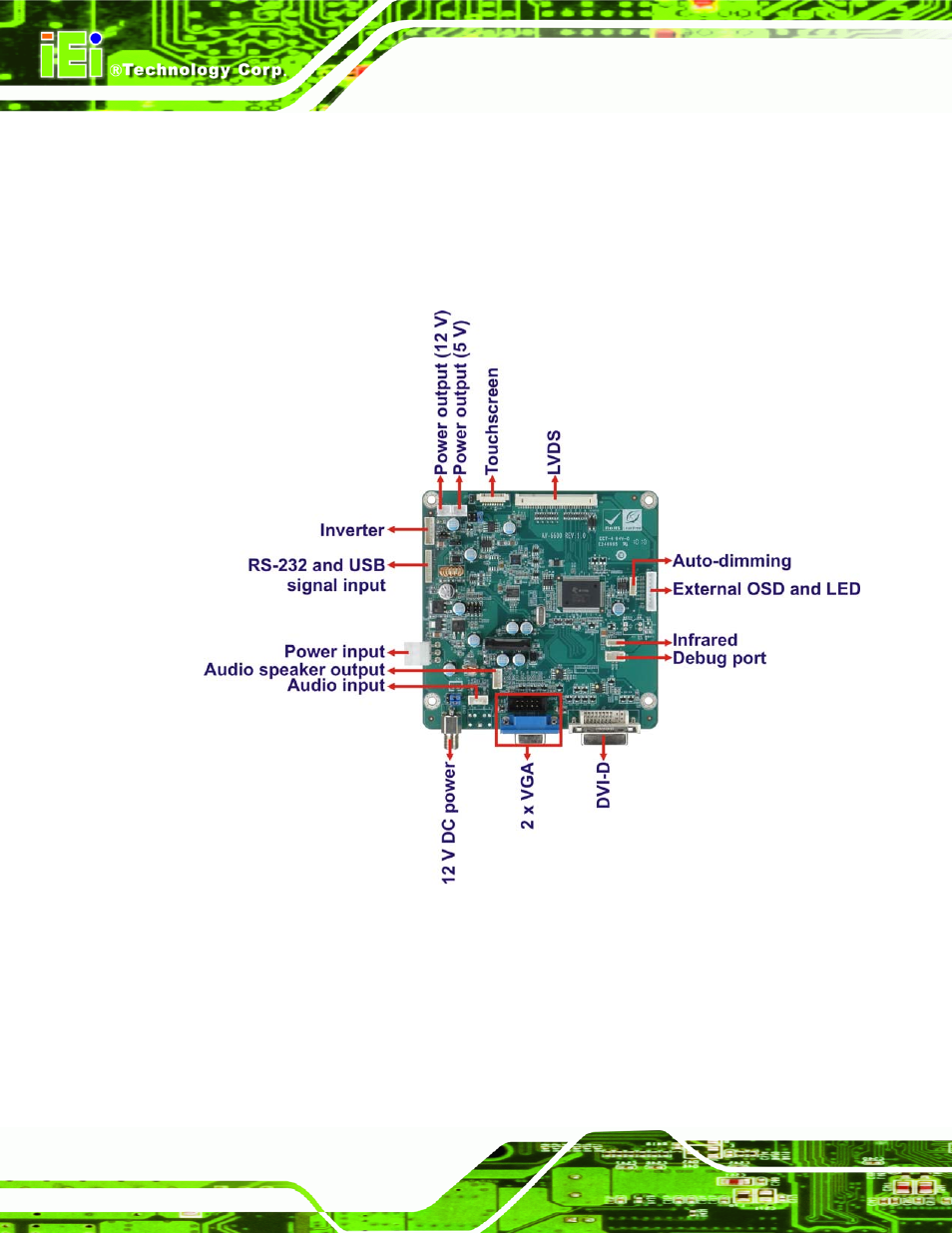

Figure 1-4: AV-6600 AD Board
