AFL2-W19A/AB-H61

P a g e 65

5.13.2 P a n e l Mo u n tin g

To mount the AFL2-W19A/AB-H61 flat bezel panel PC into a panel, please follow the

steps below.

S te p 1:

Select the position on the panel to mount the flat bezel panel PC.

S te p 2:

Cut out a section from the panel that corresponds to the rear panel dimensions

of the flat bezel panel PC. Take care that the panel section that is cut out is

smaller than the overall size of the frame that surrounds the flat bezel panel PC

but just large enough for the rear panel of the flat bezel panel PC to fit through

S te p 3:

Slide the flat bezel panel PC through the hole until the frame is flush against the

panel.

S te p 4:

Insert the panel mounting clamps into the pre-formed holes along the edges of

the chassis, behind the frame.

S te p 5:

Tighten the screws that pass through the panel mounting clamps until the plastic

caps at the front of all the screws are firmly secured to the panel (Figure 5-19).

S te p 0:

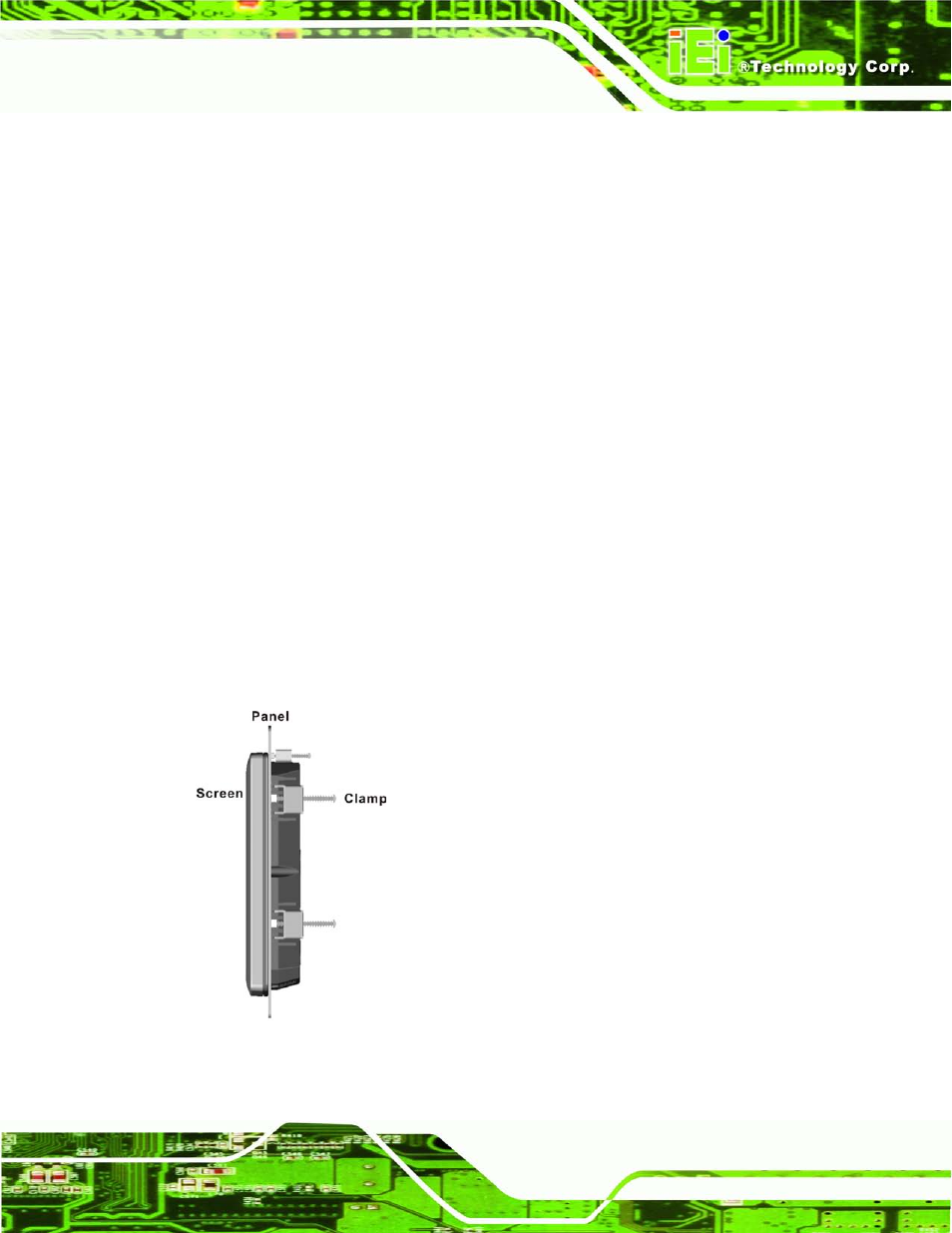

Figure 5-19: Tighten the Panel Mounting Clamp Screws
