AFL2-W19A/AB-H61

P a g e 10

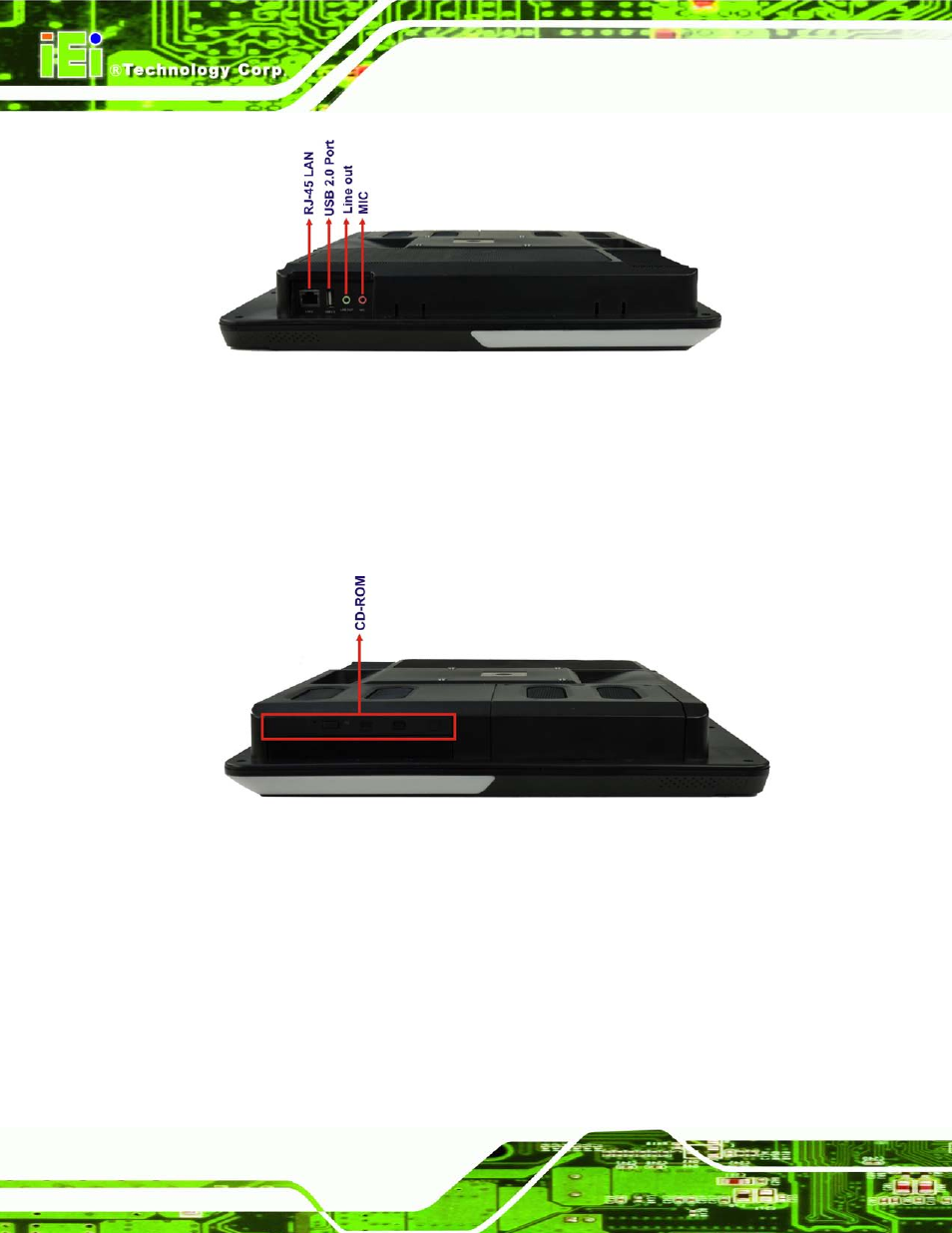

Figure 1-7: AFL2-W19A/AB-H61 Left Side Panel

1.2.5 Rig h t S id e P a n e l

The right side panel of the AFL2-W19A/AB-H61 provides access to the CD-ROM (optional)

(Figure 1-8):

Figure 1-8: AFL2-W19A/AB-H61 Right Side Panel

1.3 In te rn a l Ove rvie w

The AFL2-W19A/AB-H61 has the following components installed internally:

 1 x Motherboard

 2 x 2.0 GB 1333 MHz DDR3 SO-DIMMs
