AFL2-W19A/AB-H61

P a g e 42

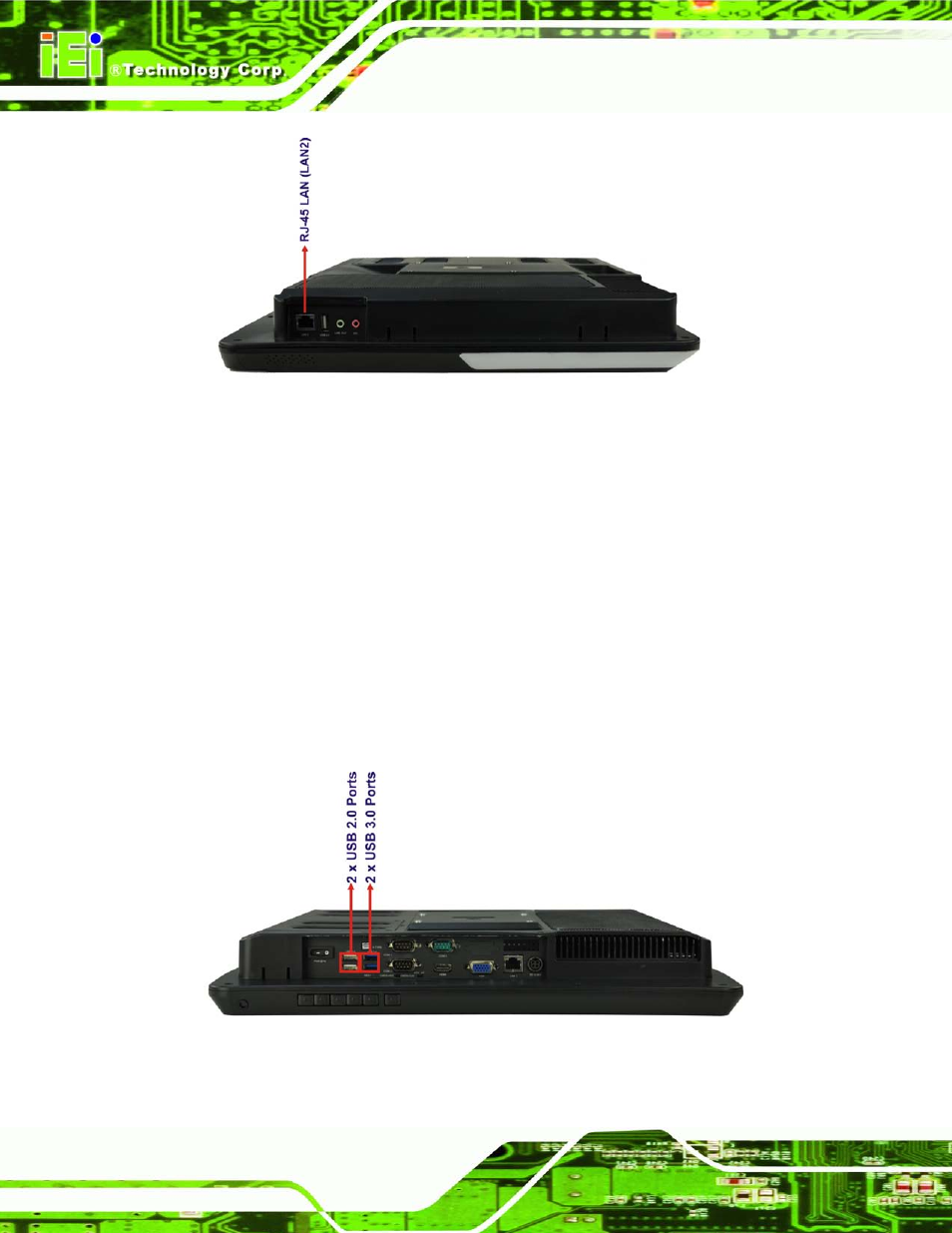

Figure 3-4: RJ-45 Ethernet Connector (Left Side Panel)

The PCIe LAN from the Intel® H61 chipset of the AFL2-W19A/AB-H61 is interfaced to the

Realtek RTL8111E PCIe gigabit Ethernet (GbE) controllers. The RTL8111E controllers

are connected directly to the RJ-45 connectors and provide external GbE connectivity.

3.4.3 Exte rn a l US B Co n n e c to rs

There are two USB 2.0 connectors and two USB 3.0 connectors on the bottom panel and

one USB 2.0 connector on the left side panel of the AFL2-W19A/AB-H61. All USB

connectors are fully compliant with USB specification Revision 2.0 and USB specification

Revision 1.1 and can be interfaced to both USB 1.1 and USB 2.0 compliant devices. Only

USB 3.0 connectors are compatible with USB 3.0 devices.

Figure 3-5: External USB Ports (Bottom Panel)
