AFL2-W19A/AB-H61

P a g e 41

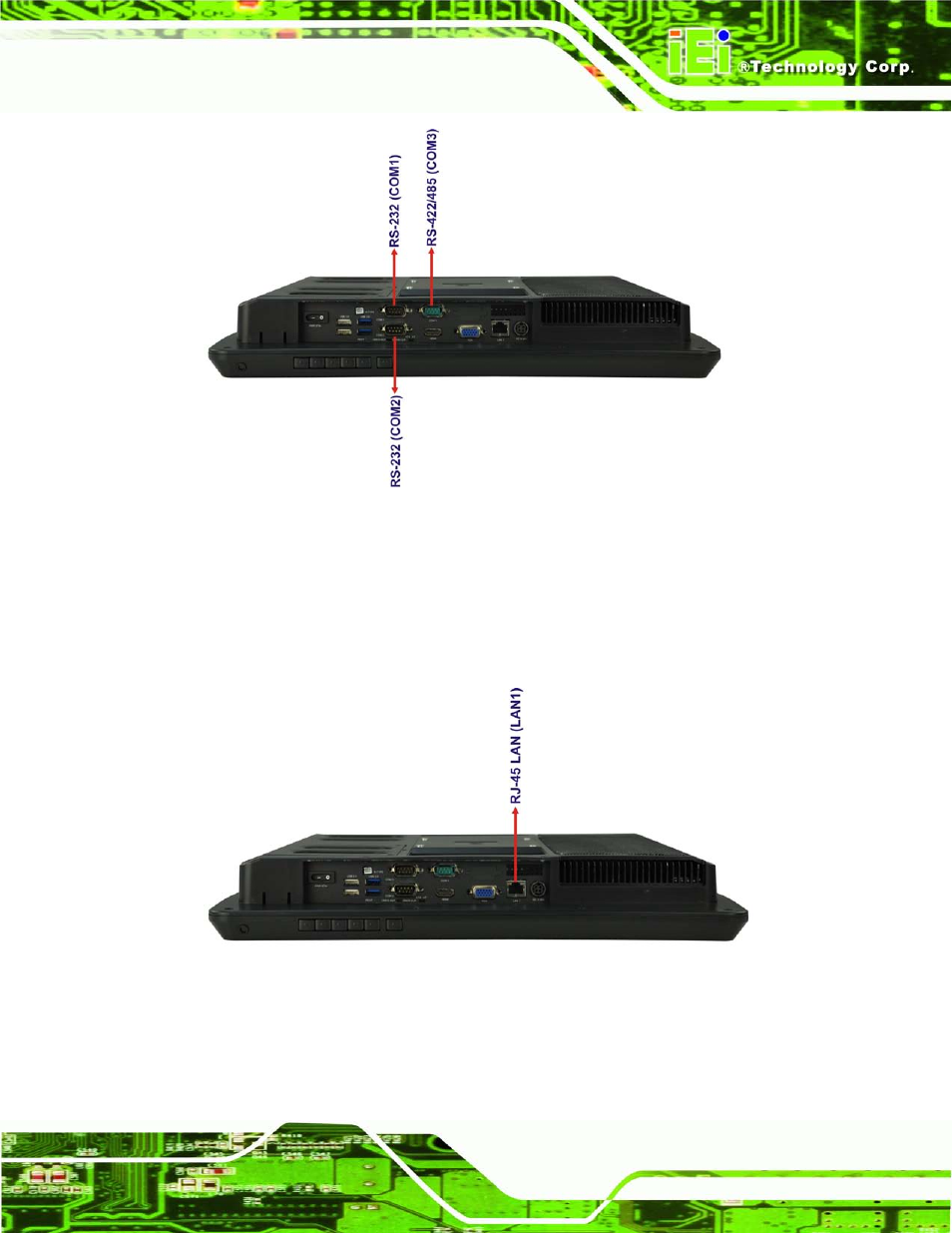

Figure 3-2: Serial Ports

3.4.2 LAN Co n n e c tivity

The AFL2-W19A/AB-H61 has one RJ-45 LAN connector on the bottom panel and one

RJ-45 LAN connector on the left side panel.

Figure 3-3: RJ-45 Ethernet Connector (Bottom Panel)
