PPC-5152-D525 Falt-bezel Panel PC

Page 111

6.7.1 Calibrating the Touch Screen

To calibrate the touch screen cursor with the motion of the touch screen pen (or finger),

please follow the steps below:

Step 1:

Make sure the touch screen driver is properly installed.

Step 2:

Locate the PenMount Monitor icon in the bottom right corner of the screen.

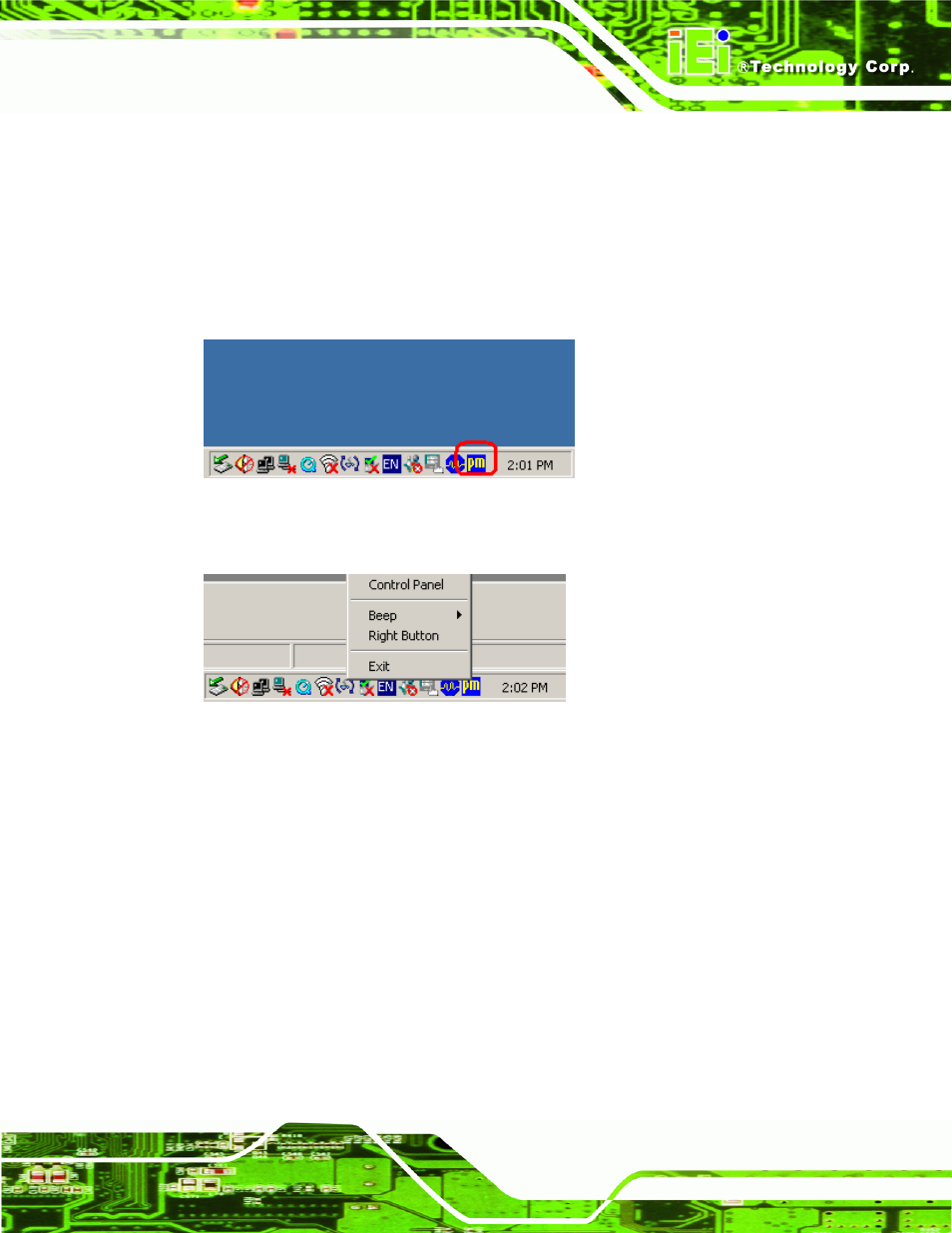

Figure 6-26: PenMount Monitor Icon

Step 3:

Click the icon. A pop up menu appears. See

7

Figure 6-27

.

Figure 6-27: PenMount Monitor Popup Menu

Step 4:

Click Control Panel in the pop up menu shown in

7

Figure 6-27.

Step 5:

The configuration screen in

7

Figure 6-28

appears.
