IOPS-Q67/H61 Pluggable Module PC

Page 42

Step 5:

Push down until the card clips into place

. Push the other end of the card

down until it clips into place on the plastic connector.

Step 0:

5.2.2 SO-DIMM Replacement

WARNING:

Using incorrectly specified SO-DIMM may cause permanently damage

the IOPS-Q67/H61. Please make sure the purchased SO-DIMM

complies with the memory specifications of the IOPS-Q67/H61.

To replace a SO-DIMM memory module into a SO-DIMM socket, please follow the steps

below.

Step 1:

Remove the SO-DIMM access panel.

Place the IOPS-Q67/H61 on an

anti-static pad with the bottom panel facing up. Remove the SO-DIMM access

panel retention screw shown in Figure 5-4.

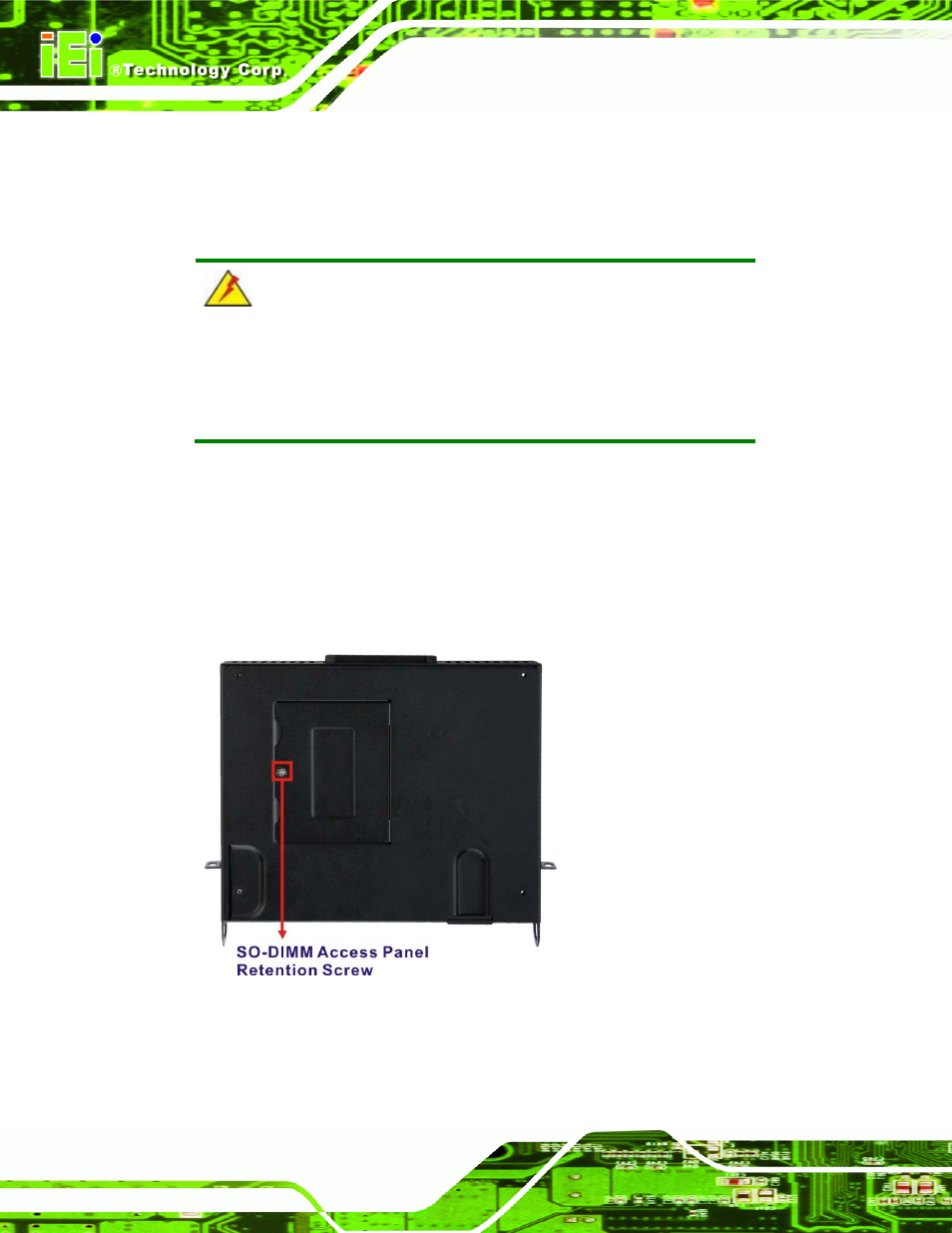

Figure 5-4: SO-DIMM Access Panel Retention Screw

Step 2:

Remove the SO-DIMM access panel

and locate the SO-DIMM.
