IOPS-Q67/H61 Pluggable Module PC
Page 14
The equipment is intended for installation in a RESTRICTED ACCESS LOCATION.
ƒ Access can only be gained by SERVICE PERSONS or by USERS who have
been instructed about the reasons for the restrictions applied to the location
and about any precautions that shall be taken.
ƒ Access is through the use of a TOOL or lock and key, or other means of
security, and is controlled by the authority responsible for the location.
3.2 SD Card Installation
The IOPS-Q67/H61 series has a SDHC card slot on the front panel. To install the SDHC
card into the system, please follow the steps below.
Step 1: Locate the SDHC card slot on the front panel. Remove the SDHC slot cover
retention screw (Figure 3-1).

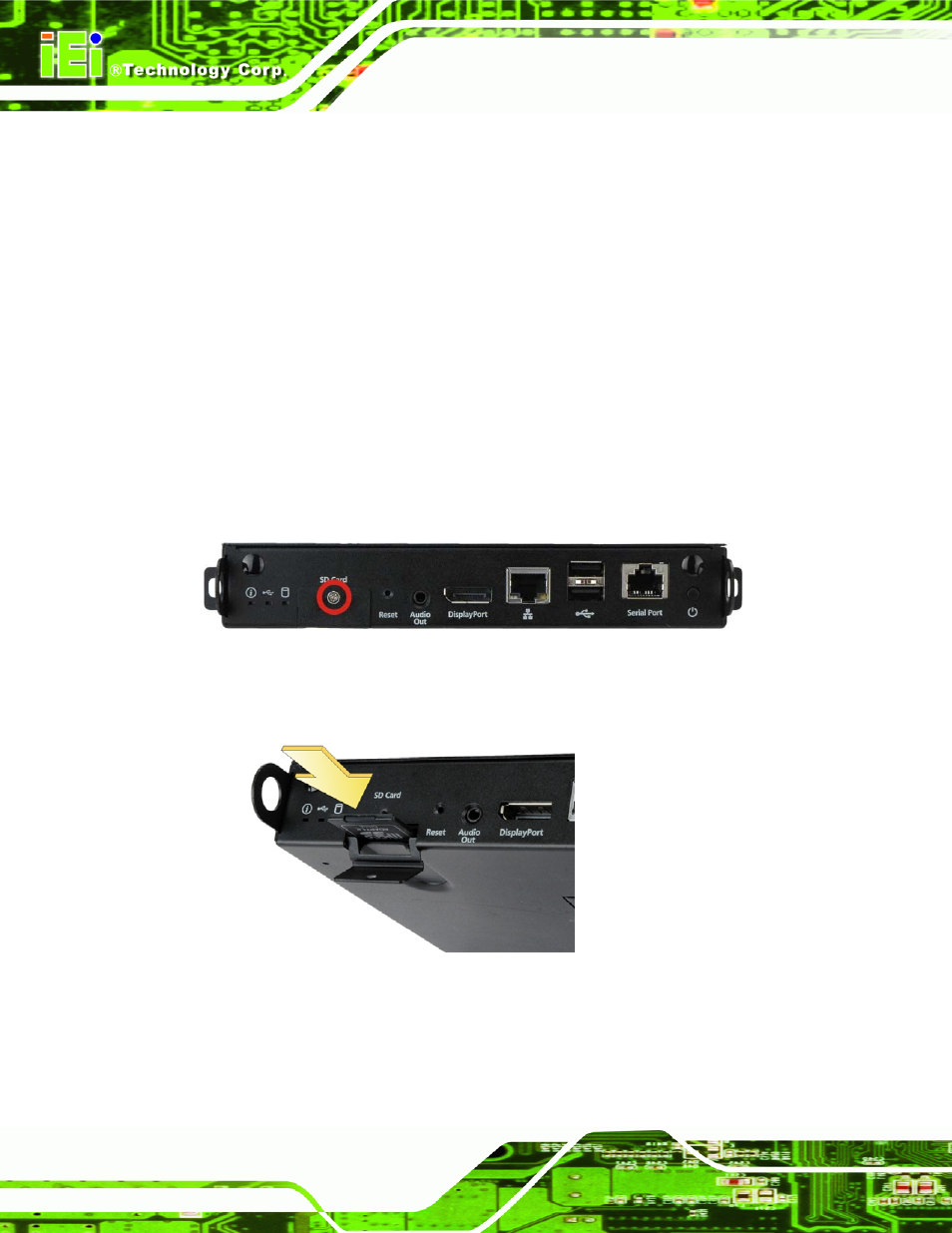

Figure 3-1: SDHC Slot Cover Retention Screw
Step 2: Open the slot cover and insert a SDHC card into the slot. (
72
Figure 3-2 )
Figure 3-2: SDHC Card Installation
Step 3: Secure the SDHC card with the slot cover by fastening the previously removed
retention screw.
