Page 36

TANK-600 Em b e d d e d S ys te m

P a g e 25

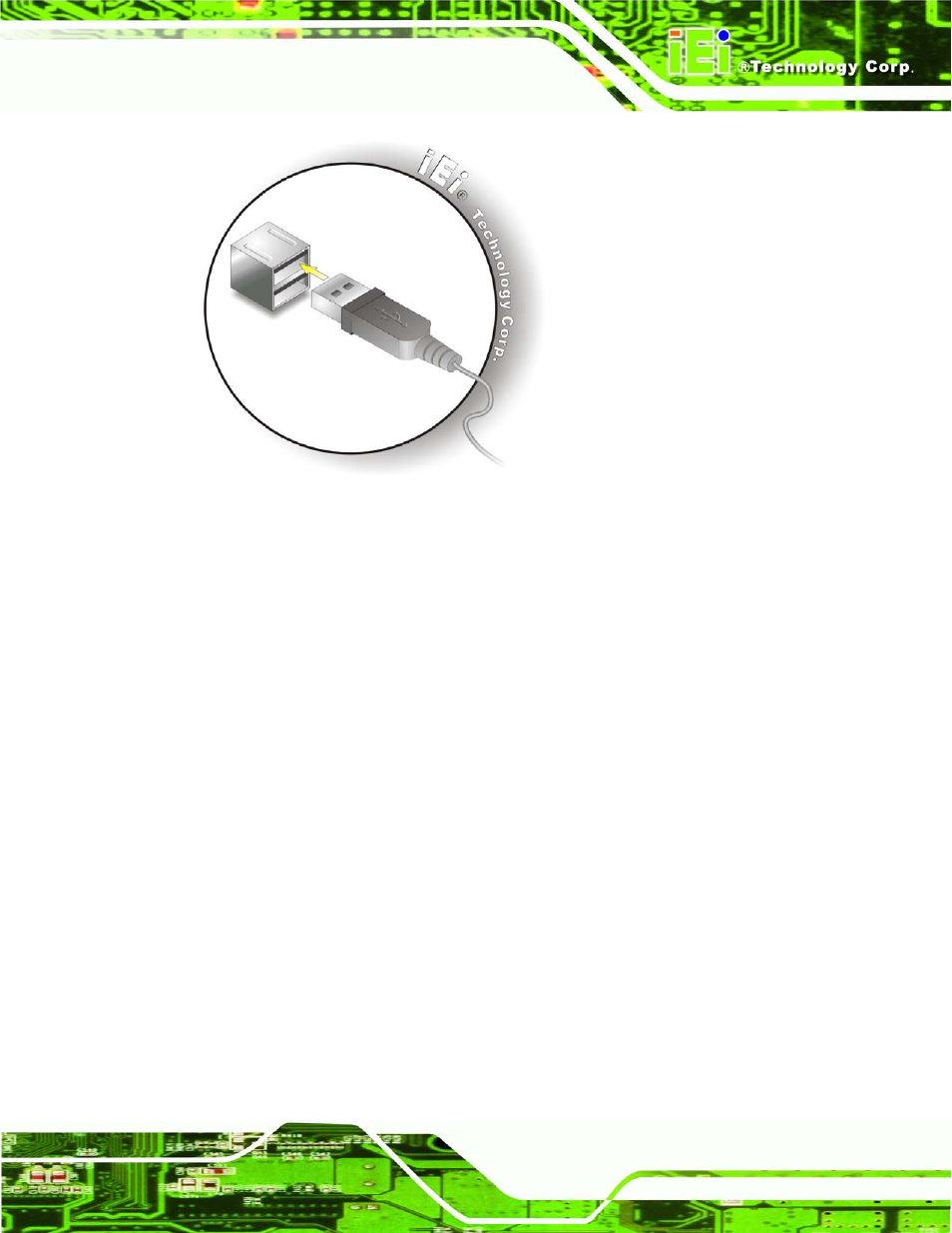

Figure 3-15: USB Device Connection

S te p 3:

Insert the device connector. Once aligned, gently insert the USB device

connector into the onboard connector.

S te p 0:

3.8.5 VGA Mo n ito r Co n n e c tio n

The TANK-600 has a single female DB-15 connector on the external peripheral interface

panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor

to the TANK-600, please follow the instructions below.

S te p 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 1.

S te p 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

S te p 3:

Insert the VGA connector. Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the
