TANK-600 Em b e d d e d S ys te m
P a g e 24
S te p 1: Locate the DB-78 serial port. The location of the DB-78 serial port is shown in
Chapter 1.
S te p 2: Connect the DB-78 to COM port cable to the system. Insert the DB-78
connector end of cable into the DB-78 serial port. See Figure 3-14.

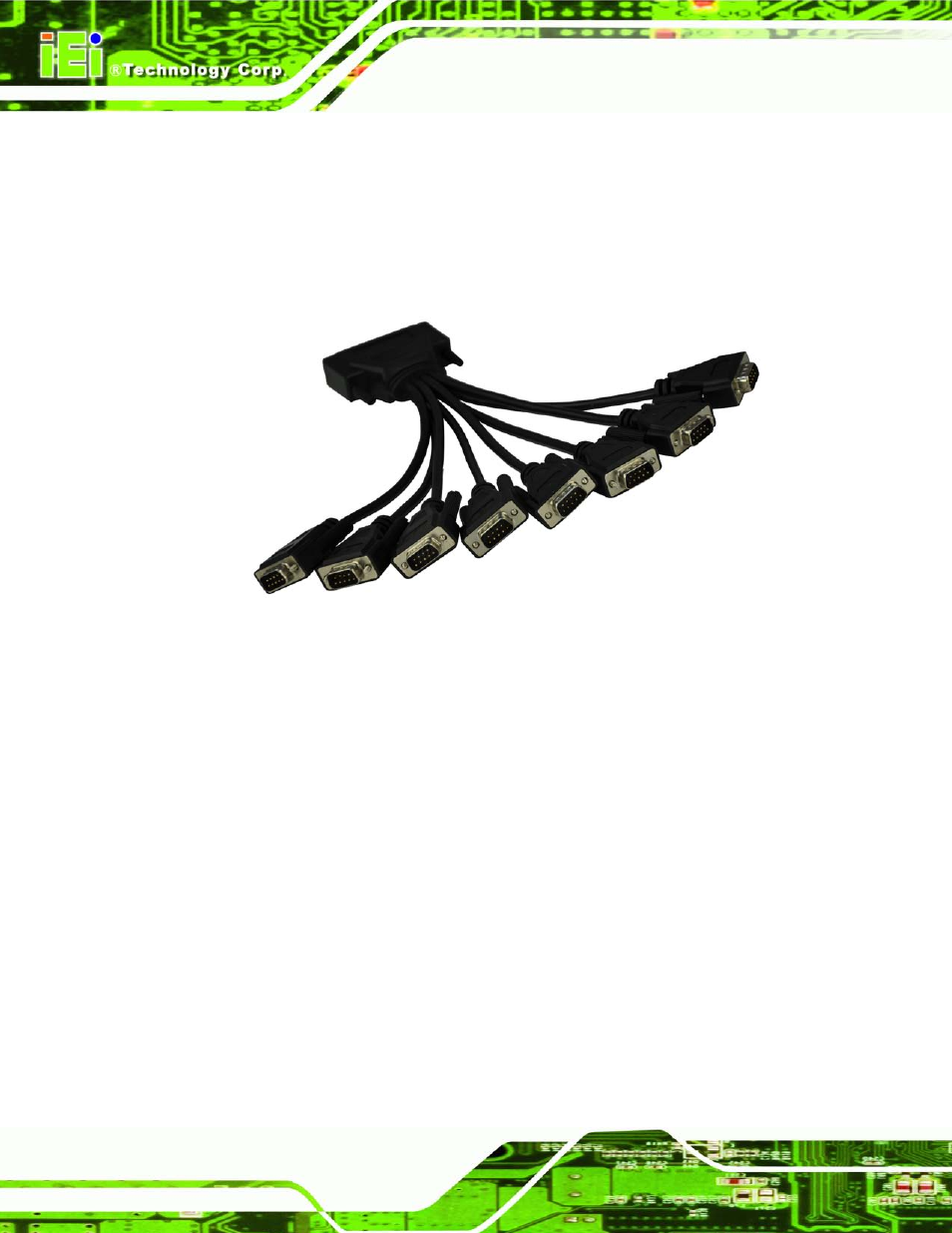

Figure 3-14: DB-78 to COM port cable
S te p 3: Connect the serial device. Connect a serial device to the DB-9 connector end
of the cable. See Figure 3-13.
S te p 4: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
S tep 0:
3.8.4 US B De vic e Co n n e c tio n
There are six USB 2.0 connectors on the TANK-600. To connect a USB device, please
follow the instructions below.
S te p 1: Locate the USB connectors. The locations of the USB connectors are shown
in Chapter 1.
S te p 2: Align the connectors. Align the USB device connector with one of the
connectors on the TANK-600. See Figure 3-15.
