WAFER-945GSE2 User Manual

Page 13

2.4.3.1 Analog CRT Graphics Mode

The analog CRT bus is interfaced to an external DB-15 interface connector. The

connector is shown below.

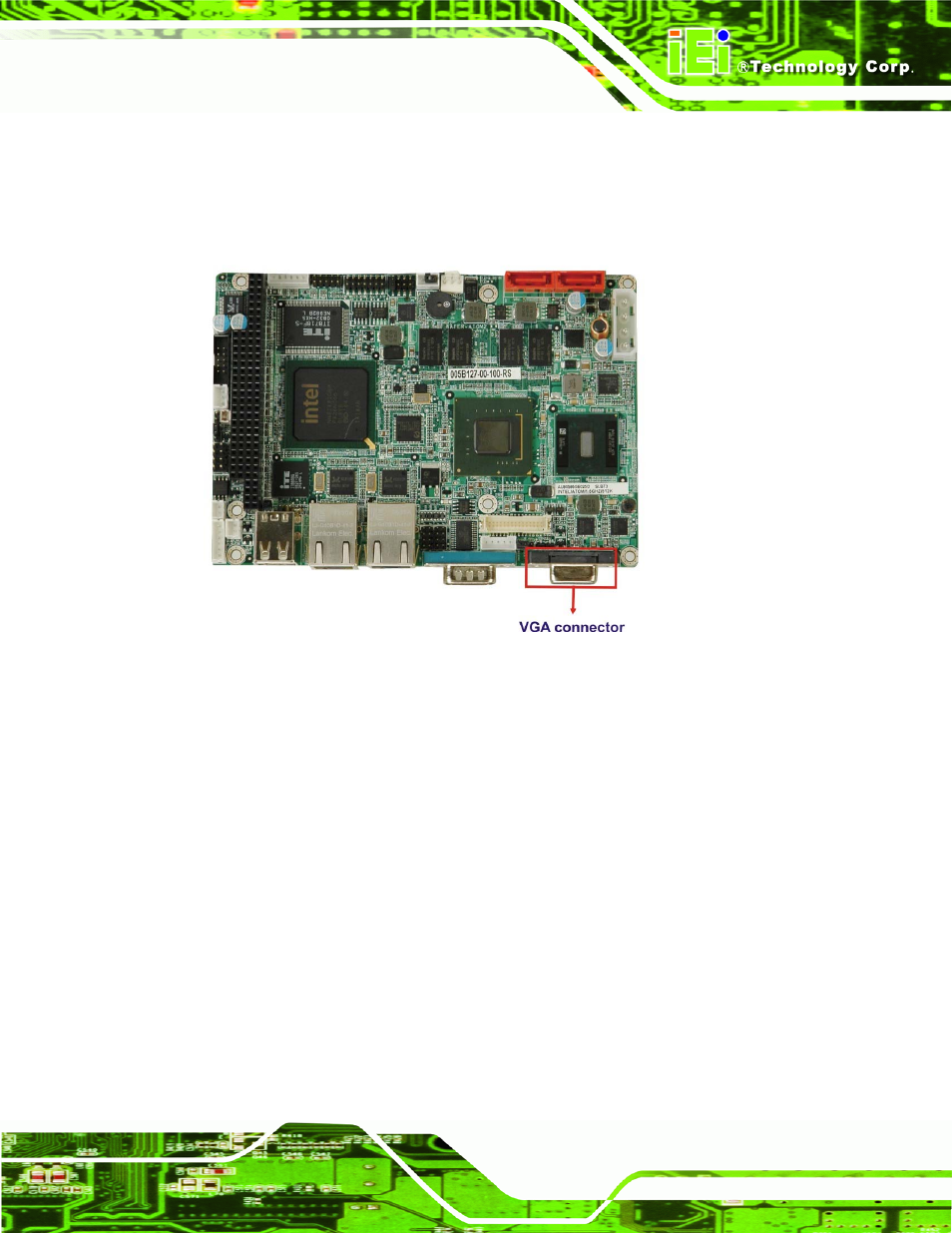

Figure 2-7: VGA Connector

Some of the features of the CRT include:

Integrated

400-MHz

RAMDAC

Analog Monitor Support up to QXGA

Support for CRT Hot Plug

2.4.3.2 LVDS Interface

The LVDS interface is connected directly to one of the LVDS connectors on the board.
