WAFER-945GSE2 User Manual
Page 2
1.1 Overview

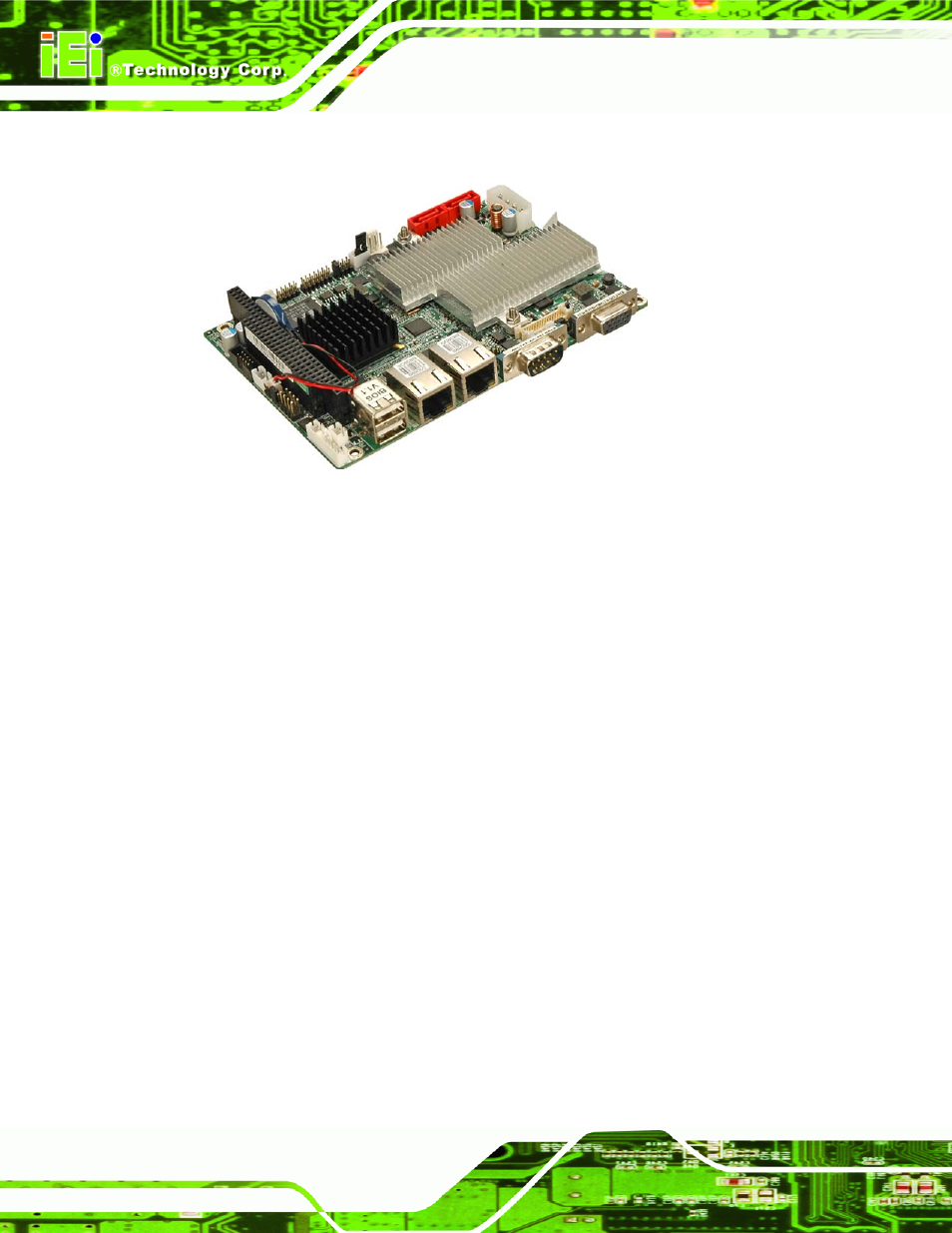

Figure 1-1: WAFER-945GSE2
1.1.1 WAFER-945GSE2 Introduction
WAFER-945GSE2 3.5” motherboards are embedded 45 nm Intel® Atom™ processor
platforms. The Intel® Atom™ processor N270 embedded on the WAFER-945GSE2 has
a 1.60 GHz clock speed, a 533 MHz FSB and a 512 KB L2 cache. The WAFER-945GSE2
also includes onboard 1.0 GB DDR2 SDRAM. The board comes with an LVDS connector
and supports both 18-bit and 36-bit single channel LVDS screens. The WAFER-945GSE2
also comes with two PCI Express (PCIe) Gigabit Ethernet (GbE) connectors, a
CompactFlash® socket on the solder side, and a PC/104 slot for expansion and increased
connectivity.
1.2 WAFER-945GSE2 Overview
1.2.1 WAFER-945GSE2 Overview Photo
The WAFER-945GSE2 has a wide variety of peripheral interface connectors.
7
Figure 1-2
is a labeled photo of the peripheral interface connectors on the WAFER-945GSE2.
