properly aligned with the connector on the adapter board. Make sure the pin 1

on the adapter board connector and the cable connector are aligned. See

Figure 4-13.

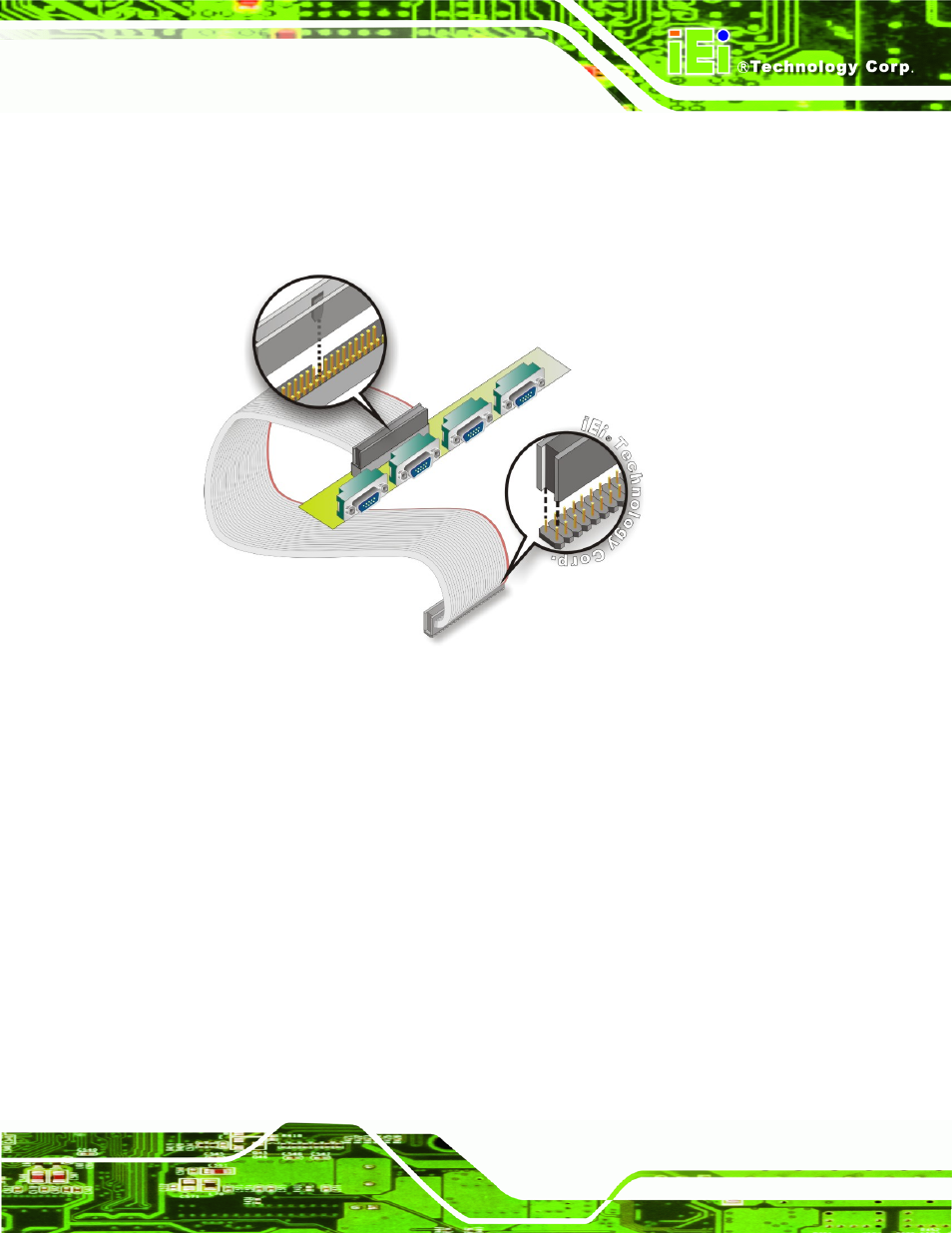

Figure 4-13: 4-COM Port Adapter Board

Step 4:

Secure the adapter board to the chassis. Make sure the retention screws on

either side of each COM port DB-9 connector are firmly secured to the chassis

enclosure.

Step 5:

Insert the serial connector.

Insert the DB-9 connector of a serial device into

the DB-9 connector on the external peripheral interface. See Figure 4-14.
