WAFER-945GSE 3.5" Motherboard
Page 52

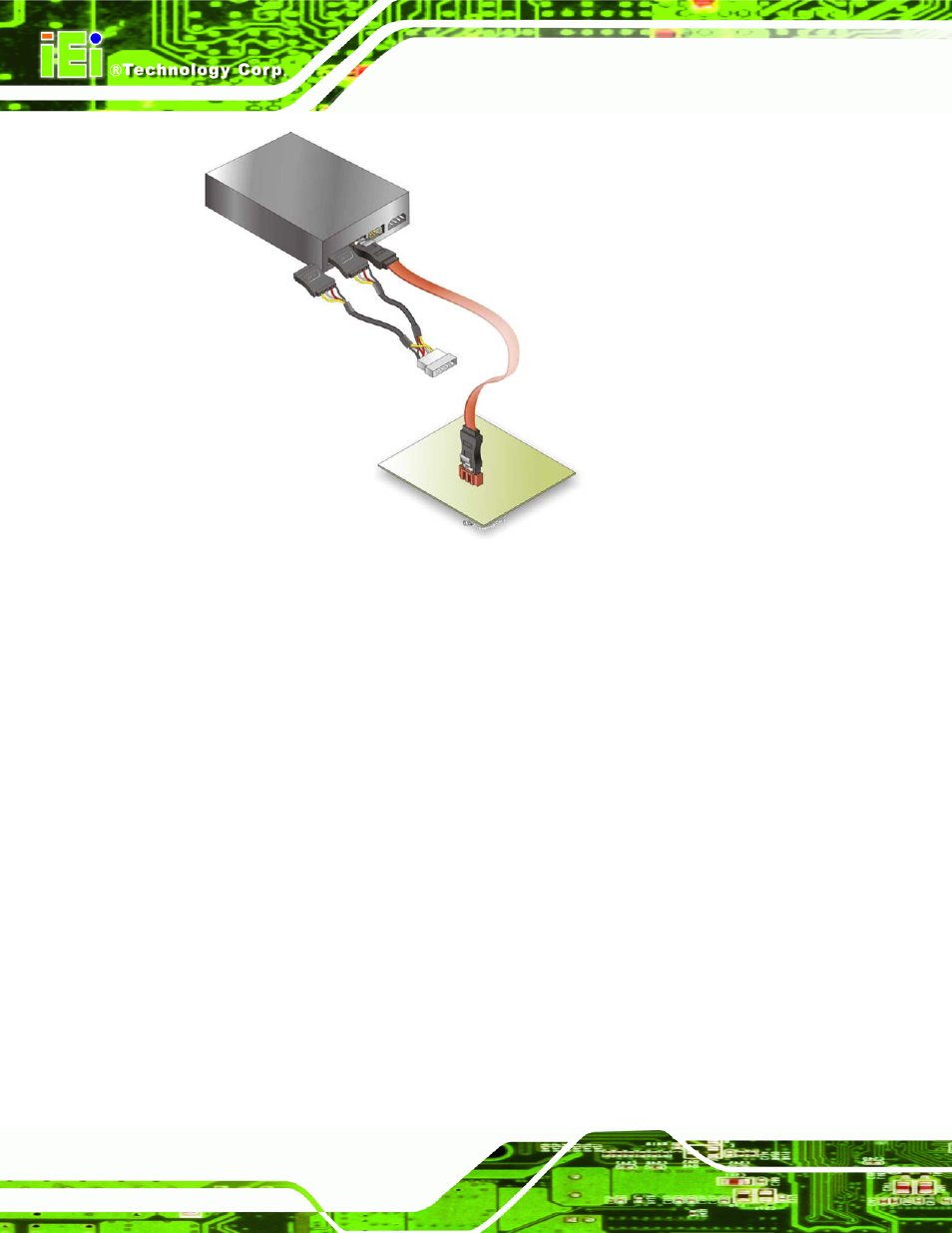

Figure 4-10: SATA Power Cable Connection
The SATA power cable can be bought from IEI. See Optional Items in Section 2.4.
4.6.2 Serial Port Connector Cable (Four Ports) Cable Connection
The WAFER-945GSE is shipped with one four serial port connector cable. The four serial
port connector cable connects four serial port connectors on the cable to the 40-pin serial
port connector on the WAFER-945GSE. To connect the four serial port connector cable,
please follow the steps below.
Step 1:
Locate the serial port connector. The location of the 40-pin serial port
connector is shown in Chapter 3.
Step 2:
Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
the WAFER-945GSE 40-pin serial port connector. See Figure 4-11.
Step 3:
Insert the cable connectors
.
Once the cable connector is properly aligned with
the 40-pin serial port connector on the WAFER-945GSE, connect the cable
connector to the on-board connectors. See Figure 4-11.
