WAFER-945GSE 3.5" Motherboard

Page 51

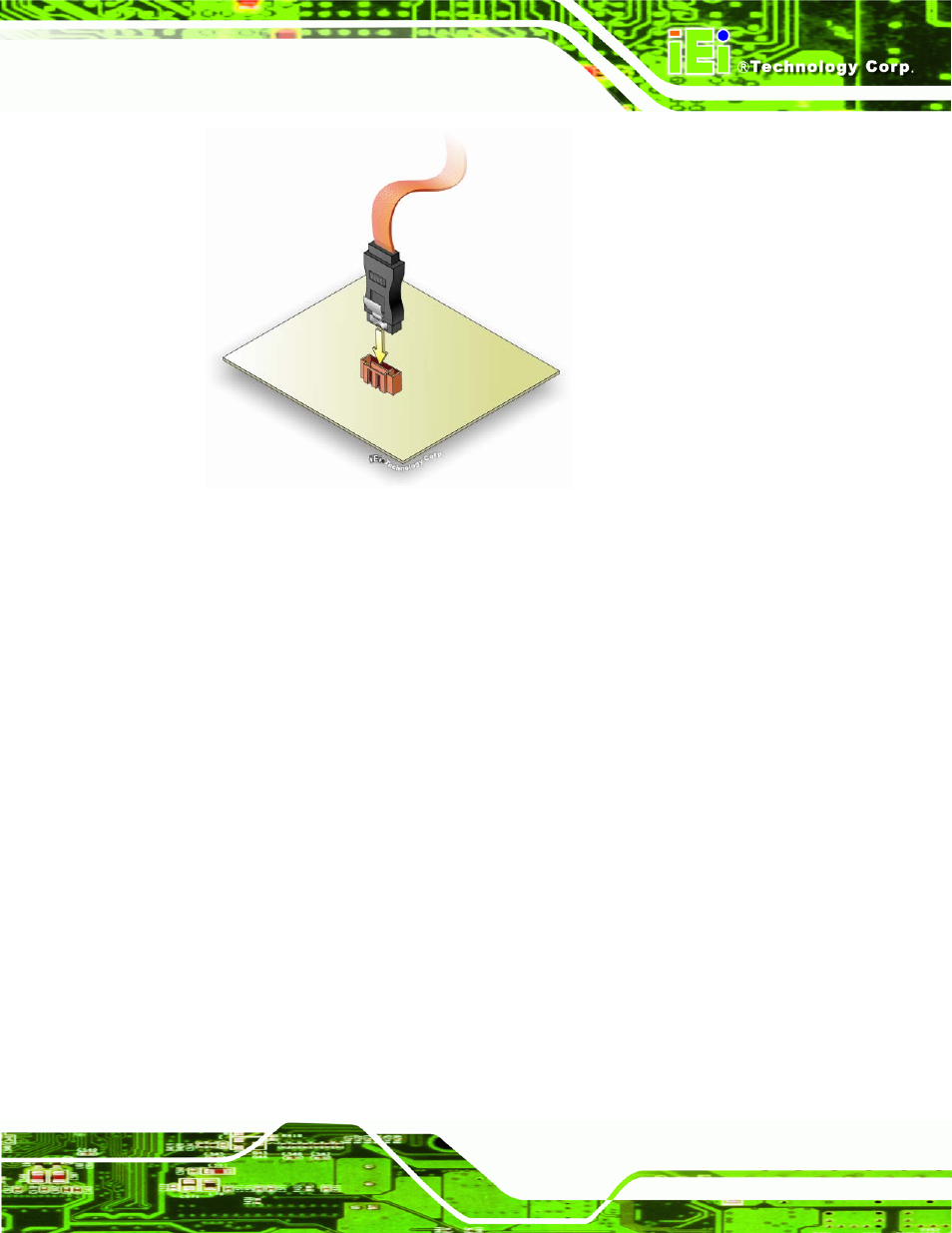

Figure 4-9: SATA Drive Cable Connection

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See Figure 4-10.

Step 4:

Connect the SATA power cable (optional). Connect the SATA power

connector to the back of the SATA drive. See Figure 4-10.
