WAFER-945GSE 3.5" Motherboard
Page 43

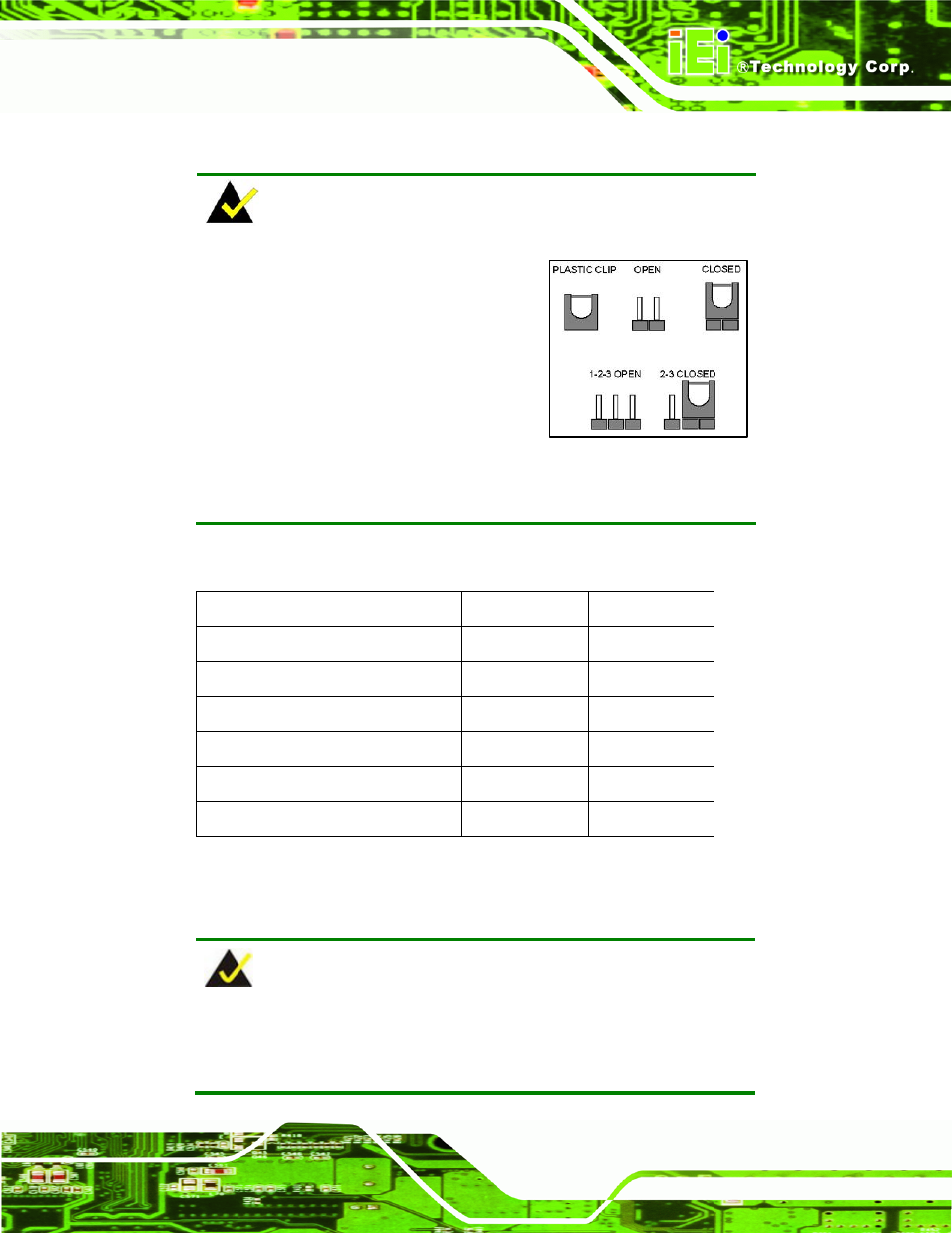

4.4 Jumper Settings
NOTE:
A jumper is a metal bridge used to close
an electrical circuit. It consists of two or
three metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
The hardware jumpers must be set before installation. Jumpers are shown in Table 4-1.
Description Label Type
AT Power Mode Setting ATXCTL1 3-pin header
CF Card Setting JCF1 2-pin header
Clear CMOS J_CMOS1 3-pin header
COM2 Mode Setting JP1 8-pin header
LVDS1 Panel Resolution J_LCD_TYPE1 8-pin header
LVDS1 Voltage Select J_VLVDS1 3-pin header
Table 4-1: Jumpers
4.4.1 AT Power Select Jumper
NOTE:
The AT Power Select Jumper is the same as the ATX Enable
connector.
