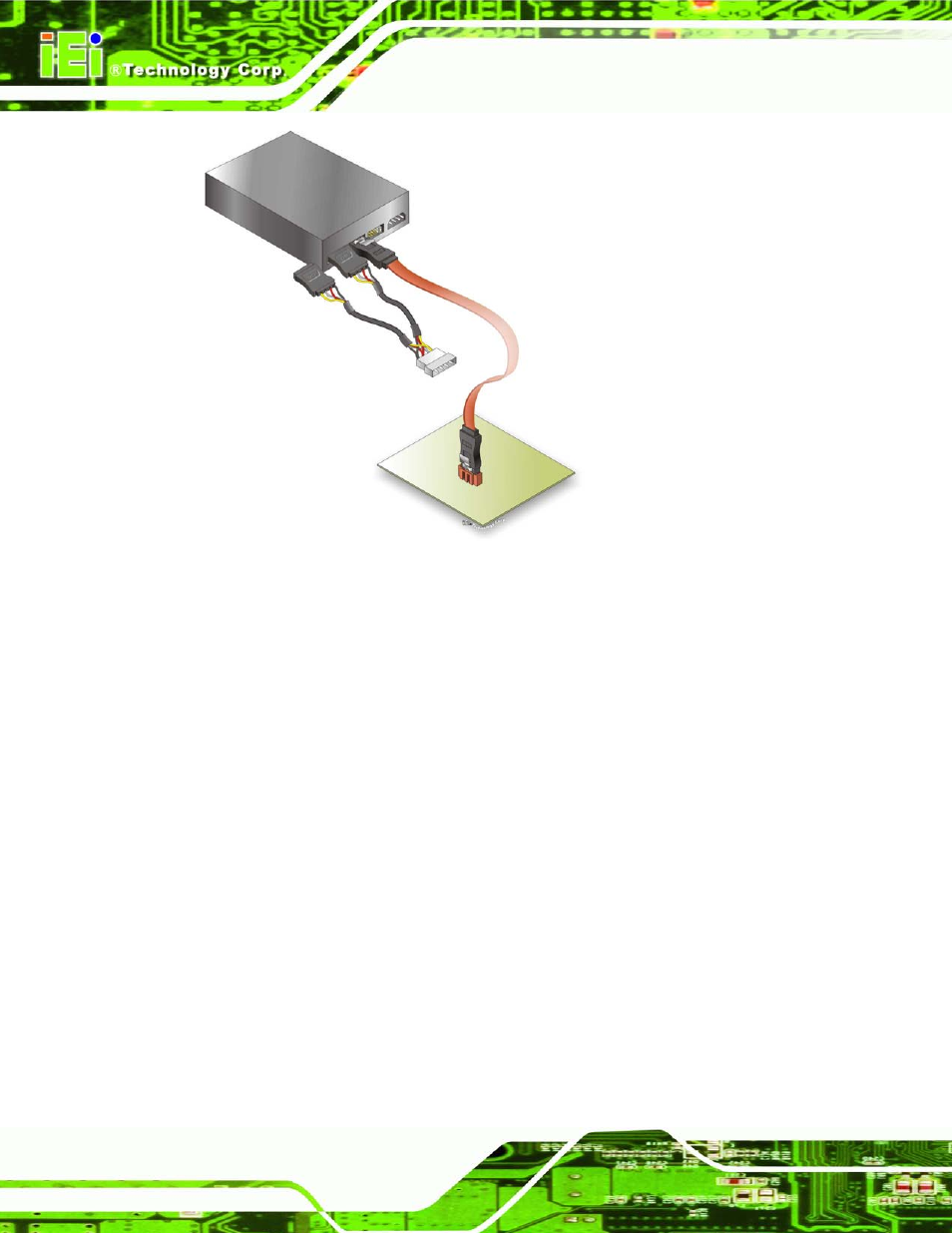

Figure 4-11: SATA Power Drive Connection
The SATA power cable can be bought from IEI. See Optional Items in Section 2.4.
4.5 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c tio n
This section describes connecting devices to the external connectors on the
IMBA-C604EN.
4.5.1 Au d io Co n n e c tio n
The audio jacks on the external audio connector enable the IMBA-C604EN to be
connected to a stereo sound setup. To install the audio devices, follow the steps below.
S te p 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel. If audio plugs are plugged into the
wrong jacks, sound quality will be very bad.
S te p 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.
