IMBA-C604EN ATX Mo th e rb o a rd
P a g e 27
3.2.11 I2C Co n n e c to r
CN La b e l: I2C_1
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 3-12
CN P in o u ts : See Table 3-12
The I2C connector is for system debug.

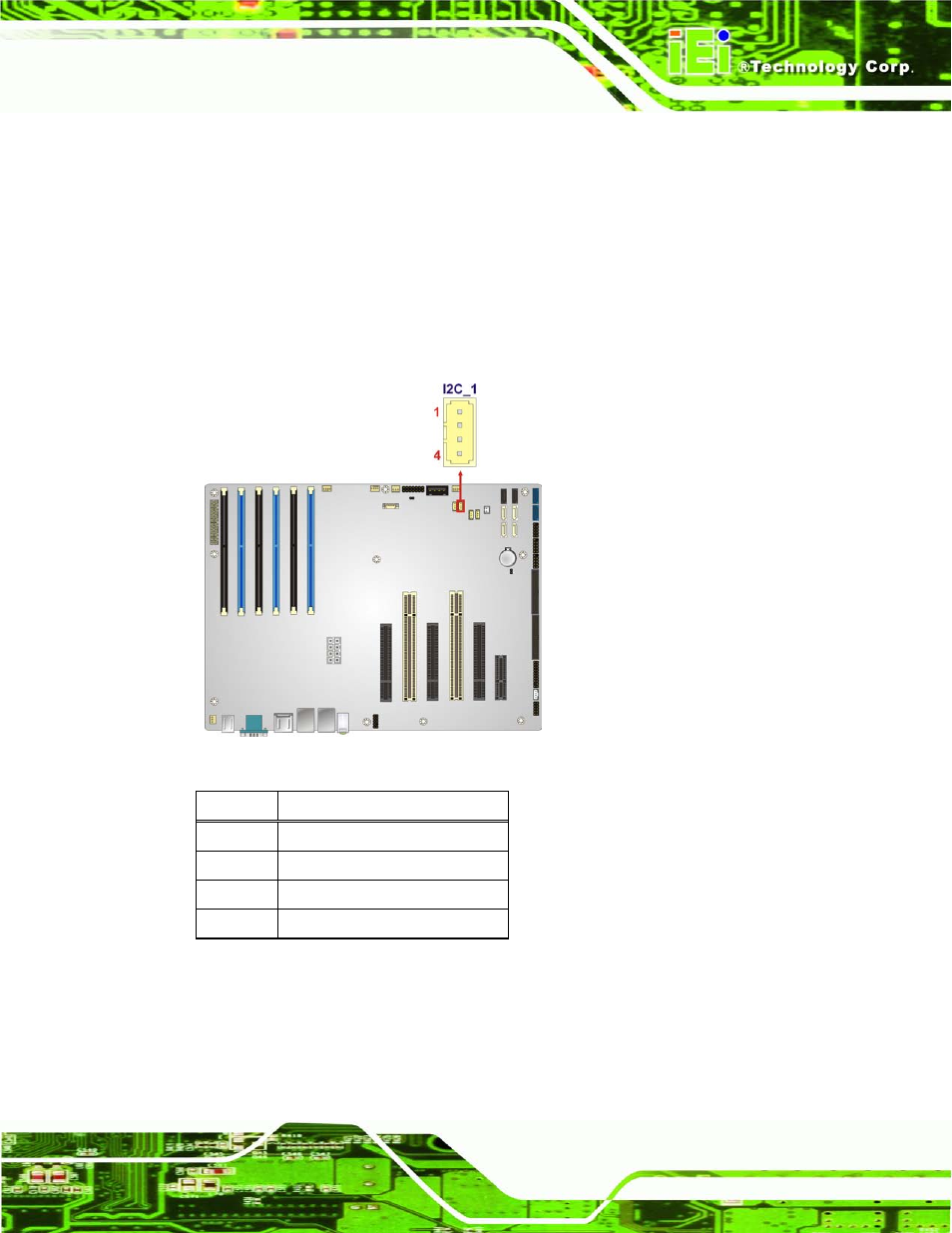

Figure 3-12: I2C Connector Location
Pin Description
1 +5V_DUAL
2 I2C_DATA_GPIO
3 I2C_CLK_GPIO
4 GND
Table 3-12: I2C Connector Pinouts
