4.3 J u m p e r S e ttin g s

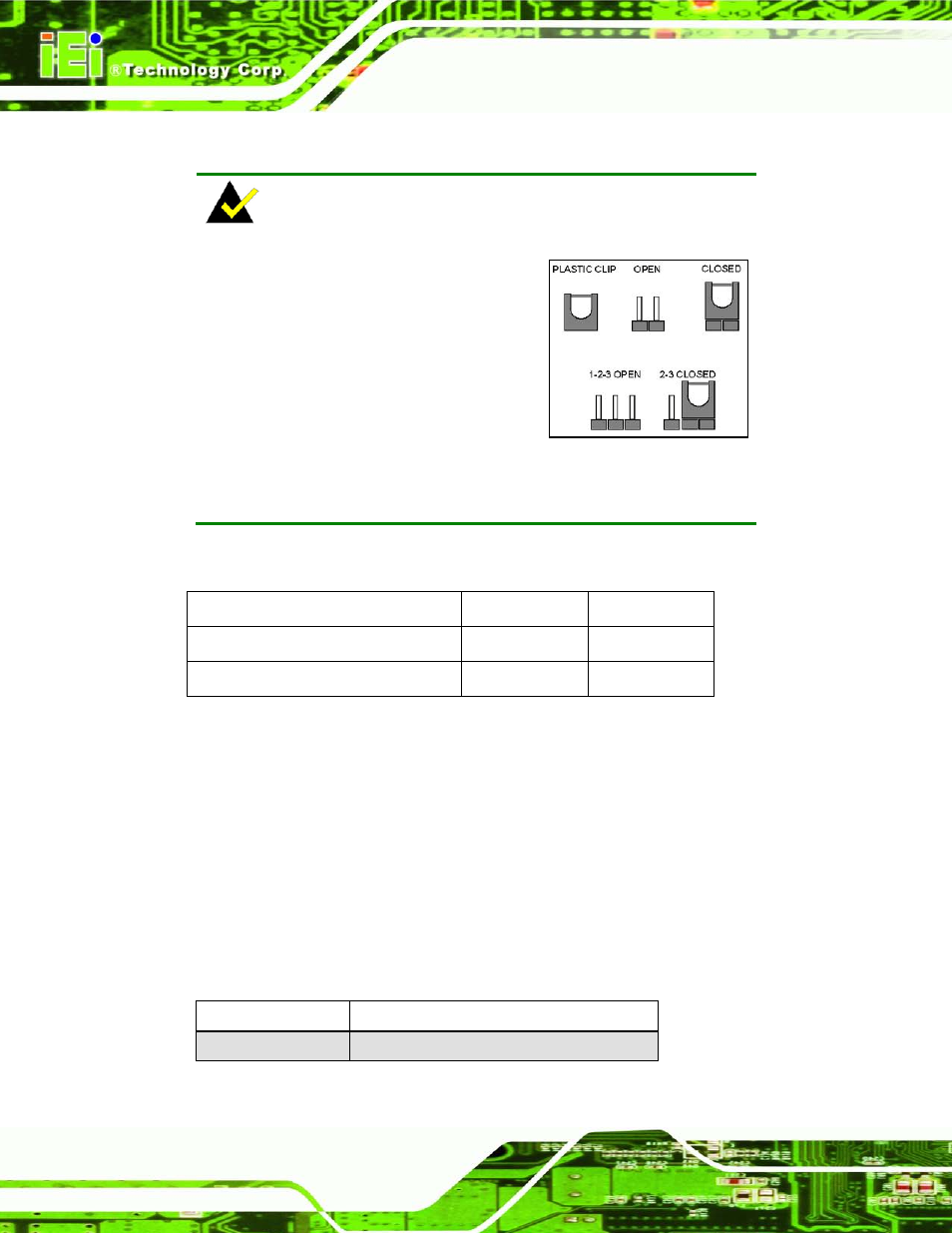

NOTE:
A jumper is a metal bridge used to close
an electrical circuit. It consists of two or
three metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
The hardware jumpers must be set before installation. Jumpers are shown in Table 4-1.
De s c rip tio n La b e l Typ e
AT/ATX power select JATX_AT1 2-pin header
Clear CMOS jumper JP1 2-pin header
Table 4-1: Jumpers
4.3.1 AT/ATX P o we r S e le c t J u m p e r
J u m p e r La b e l: J ATX_AT1
J u m p e r Typ e : 2-pin header
J u m p e r S e ttin g s : See Table 4-2
J u m p e r Lo c a tio n : See Figure 4-8
The AT/ATX Power Select jumper specifies the systems power mode as AT or ATX.
Setting Description
Short ATX power (Default)
