IMBA-C604EN ATX Mo th e rb o a rd
P a g e 40

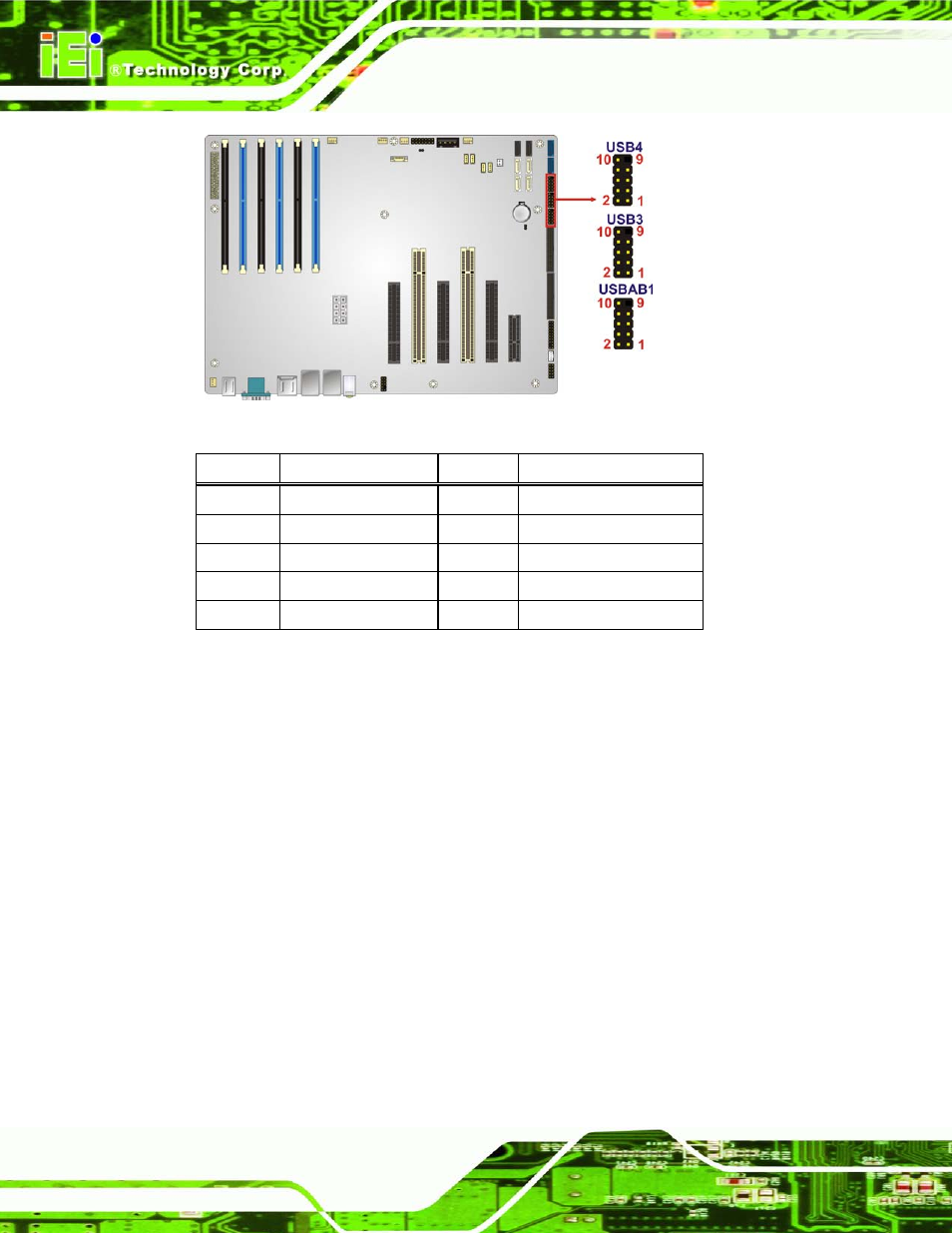

Figure 3-26: USB Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 FUSEVCC67/89/AB 2 FUSEVCC67/89/AB
3 P6/8/10- 4 P7/9/11-
5 P6/8/10+ 6 P7/9/11+
7 GND 8 GND
9 NC 10 NC
Table 3-23: USB Port Connector Pinouts( USB3, USB4, USBAB1)
3.2.26 US B Co n n e c to r (Typ e A)
CN La b e l: US B12
CN Typ e : Type A connector
CN Lo c a tio n : See Figure 3-27
CN P in o u ts : See Table 3-24
The USB connector can be connected to a USB device.
