IMBA-C604EN ATX Mo th e rb o a rd
P a g e 29

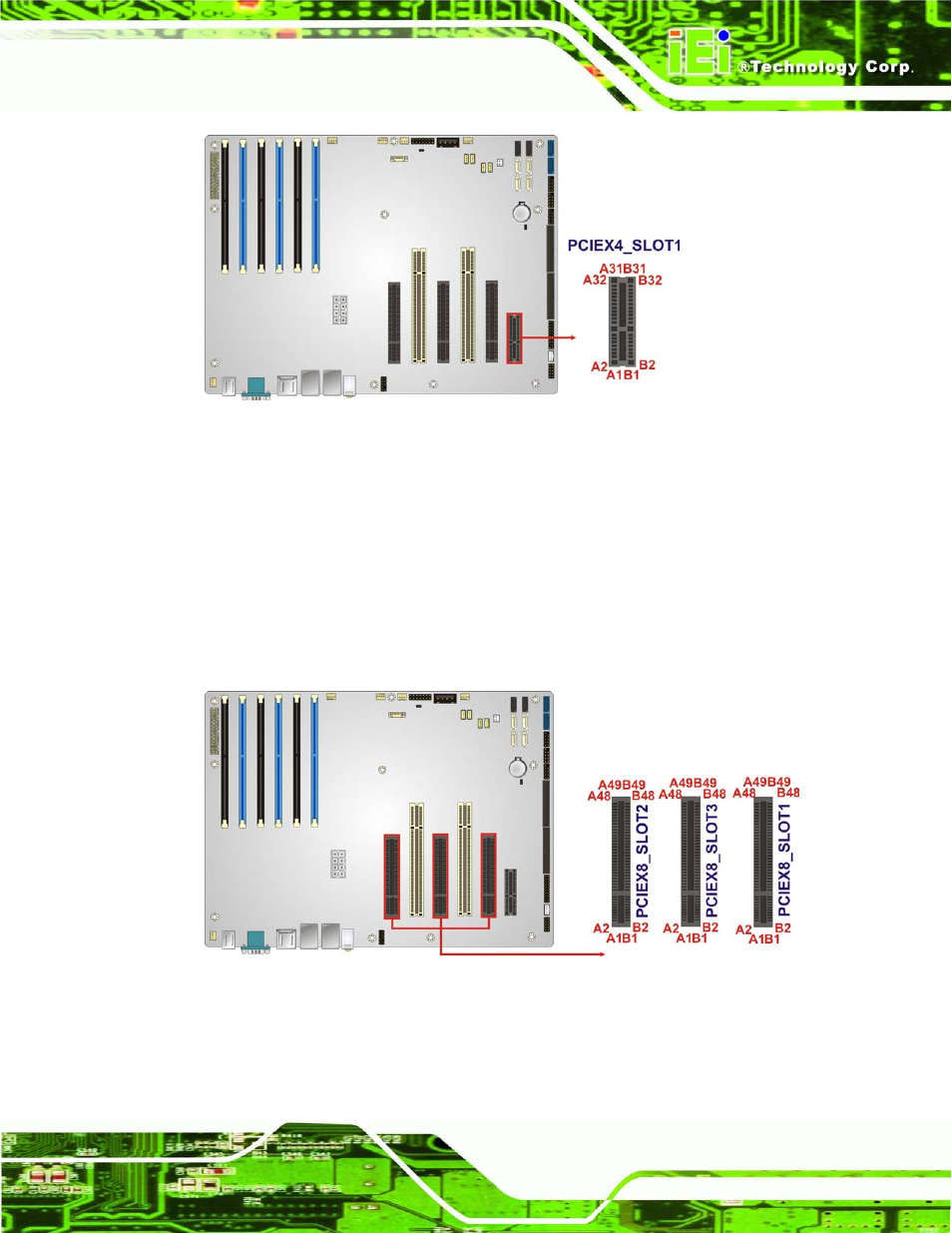

Figure 3-14: PCIe x4 Slot Locations
3.2.14 P CIe x8 S lo t
CN La b e l: P CIEX8_S LOT1, P CIEX8_S LOT2, P CIEX8_S LOT3
CN Typ e : PCIe x16 slot
CN Lo c a tio n : See Figure 3-15
The PCIe x8 slot provide PCIe x8 signal for PCIe expansion cards.
Figure 3-15: PCIe x8 Slot Location
3.2.15 S AS 3Gb /s Drive Co n n e c to rs
CN La b e l: S AS 1, S AS 2, S AS 3, S AS 4
