IMB-C2160 Mic ro -ATX Mo th e rb o a rd
P a g e 28

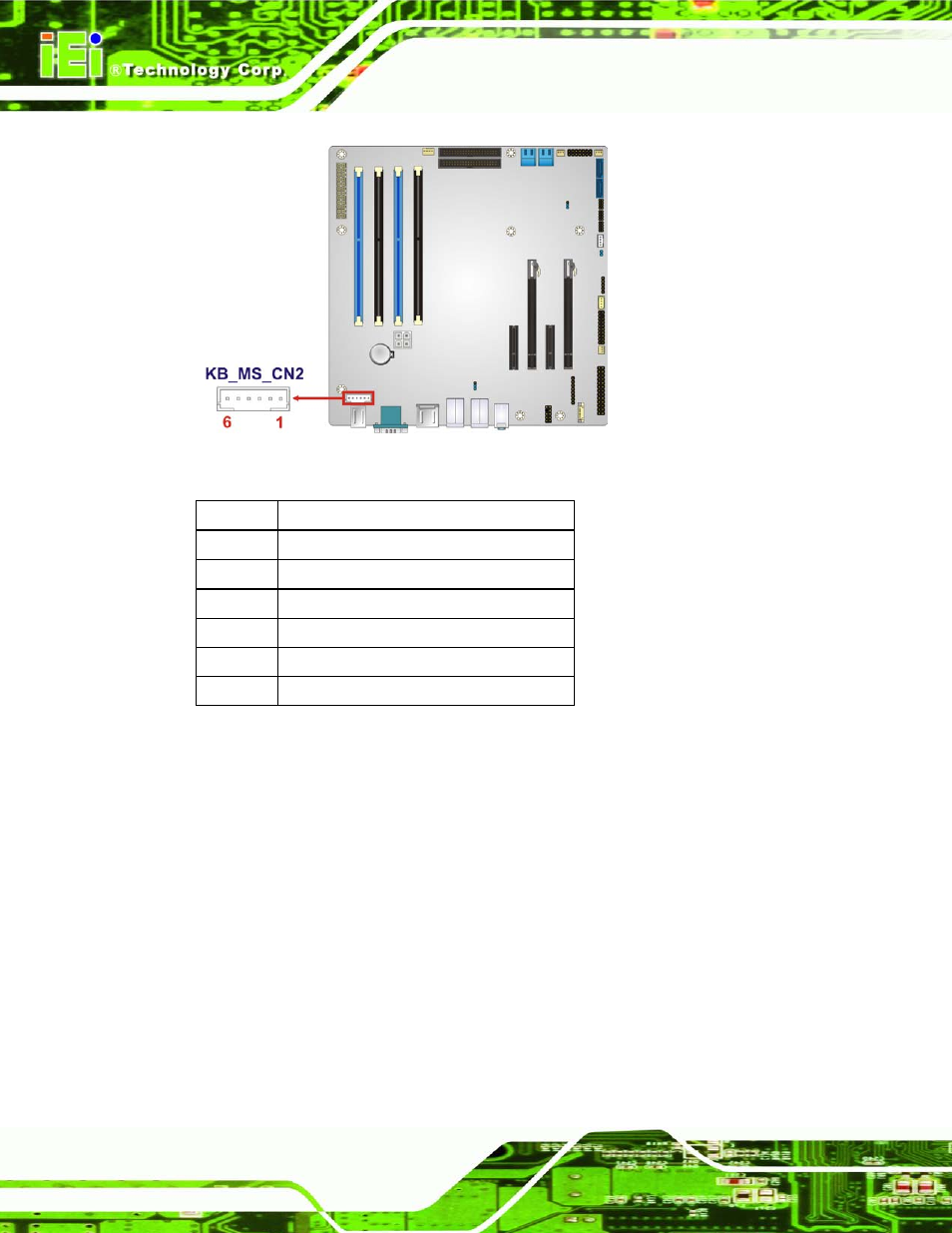

Figure 3-12: Keyboard/Mouse Connector Location
Pin Description
1 +5V
2 MS DATA
3 MS CLK
4 KB DATA
5 KB CLK
6 GND
Table 3-11: Keyboard/Mouse Connector Pinouts
3.2.12 P CH Fa n Co n n e c to r
CN La b e l: P CH_FAN1
CN Typ e : 3-pin header
CN Lo c a tio n : See Figure 3-13
CN P in o u ts : See Table 3-12
The PCH fan connector attaches to a PCH cooling fan.
