KINO-QM670 Mini-ITX SBC

Page 34

The SMBus (System Management Bus) connector provides low-speed system

management communications.

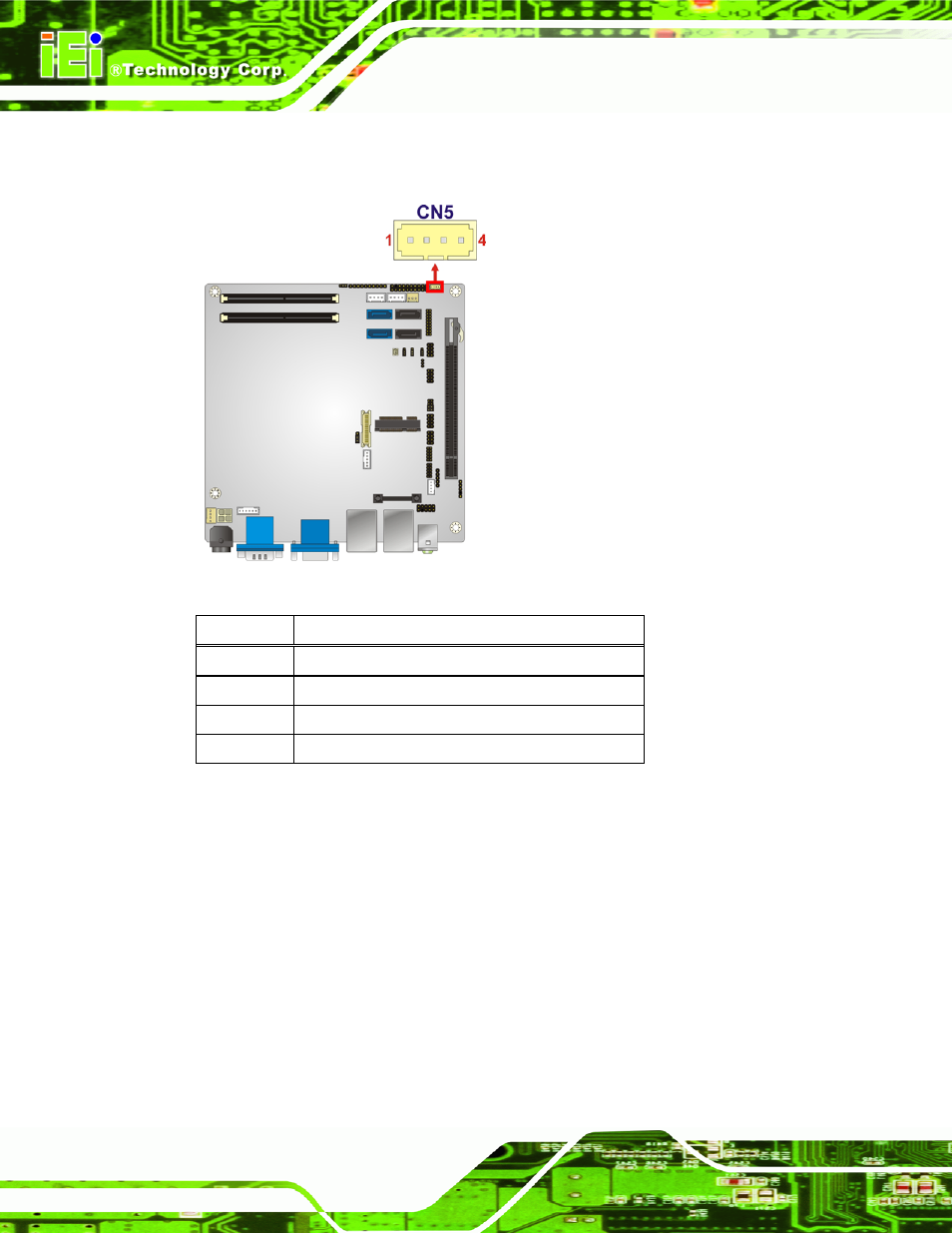

Figure 3-19: SMBus Connector Location

Pin Description

1 GND

2 SMB_DATA

3 SMB_CLK

4 +V5S

Table 3-20: SMBus Connector Pinouts

3.2.19 SPDIF Connector

CN Label:

SPDIF1

CN Type:

5-pin header (1x5)

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-21

Use the SPDIF connector to connect digital audio devices to the system.
