KINO-QM670 Mini-ITX SBC

Page 32

PIN NO. DESCRIPTION

Table 3-17: SATA Power Connector Pinouts

3.2.16 Serial Port Connector (RS-232)

CN Label:

COM2

CN Type:

10-pin header

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-18

Used for RS-232 communications.

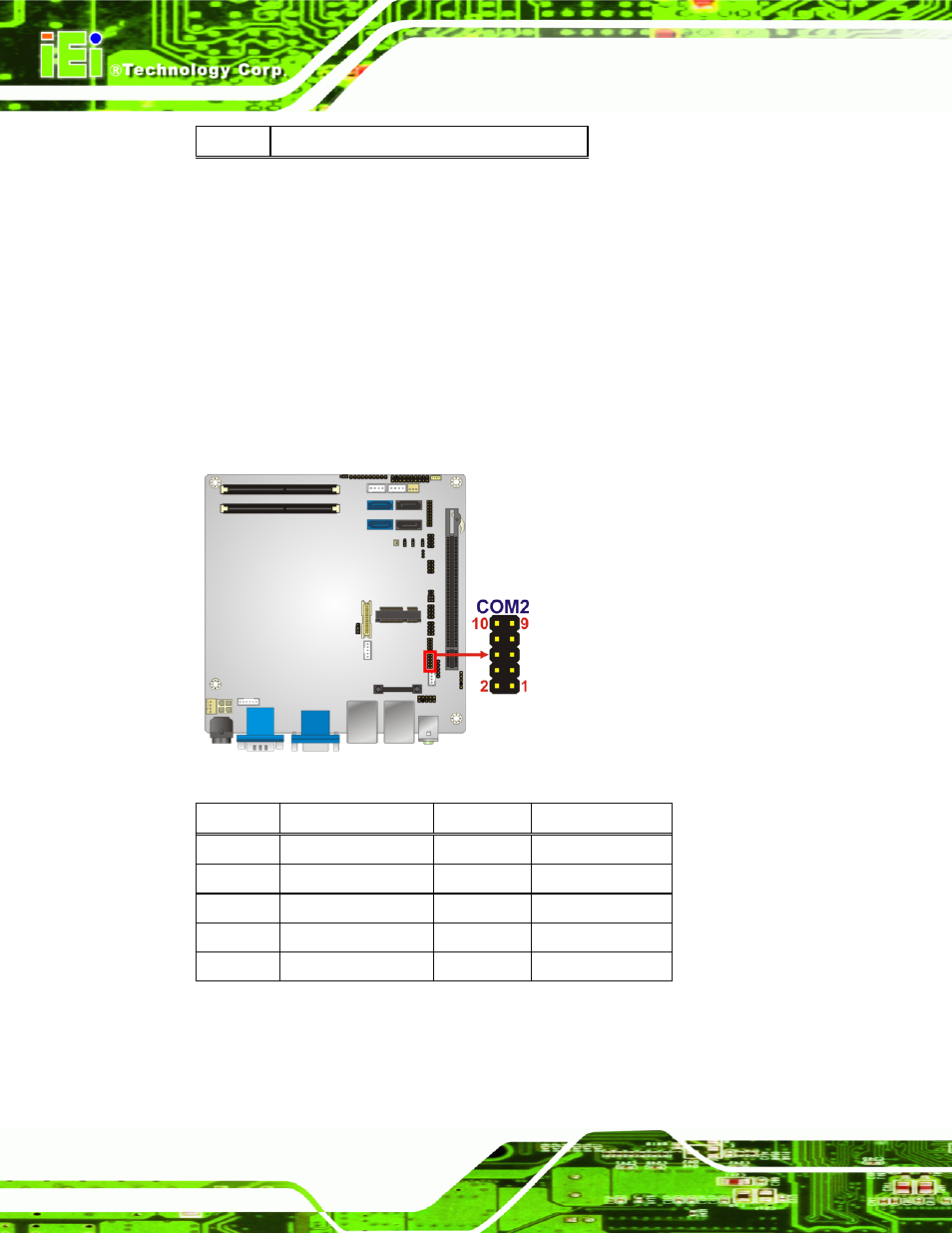

Figure 3-17: Serial Port Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

-NDCD2

2

-NDSR2

3

NSIN2

4

-NRTS2

5

NSOUT2

6

-NCTS2

7

-NDTR2

8

-XRI2

9

GND

10

GND

Table 3-18: Serial Port Connector Pinouts
