KINO-QM670 Mini-ITX SBC
Page 17
3.2.1 Audio Connector
CN Label: FRONT-PANEL1
CN Type: 10-pin header (2x5)
CN Location: See Figure 3-2
CN Pinouts: See Table 3-3
The audio connector is connected to external audio devices including speakers and
microphones for the input and output of audio signals to and from the system.

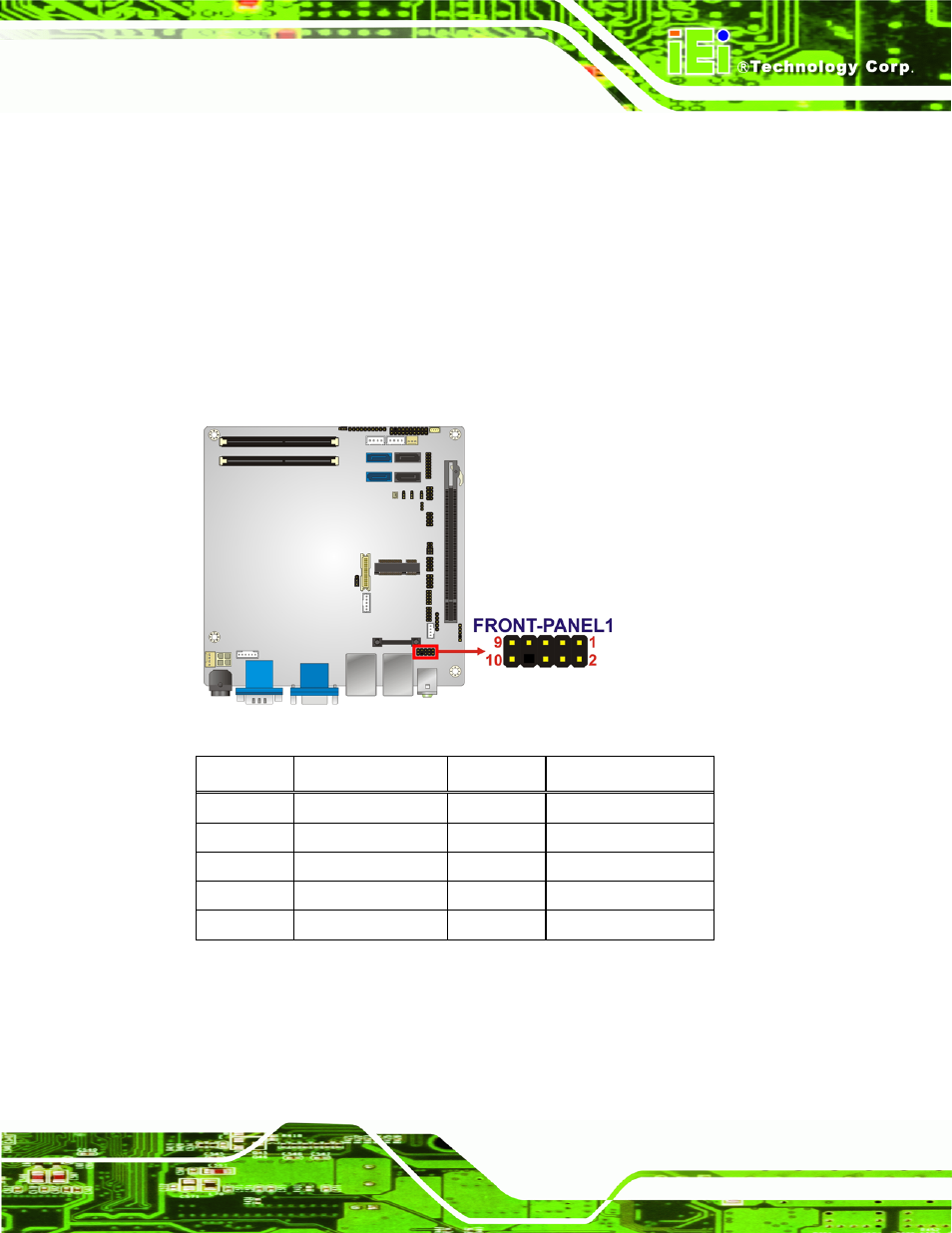

Figure 3-2: Audio Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LMIC2-L 2 ANALOG GND
3 LMIC2-R 4 PRESENCE#
5 LLINE2-R 6 MIC2-JD
7 FRONT-IO 8 NC
9 LLINE2-L 10 LINE2-JD
Table 3-3: Audio Connector Pinouts
3.2.2 Battery Connector
CN Label: BAT1
