Page 34: Table 3-5

KINO-QM670 Mini-ITX SBC

Page 19

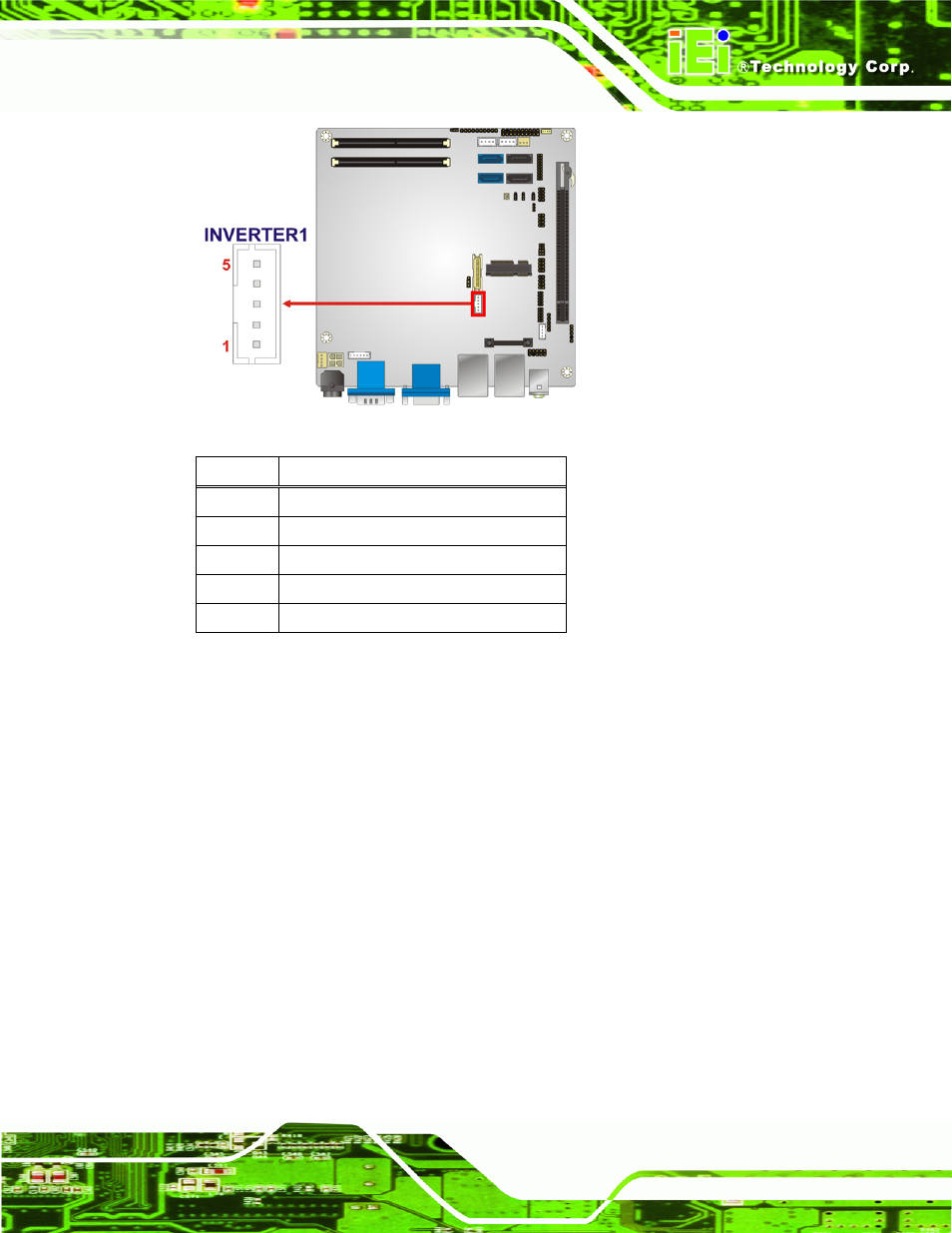

Figure 3-4: Panel Backlight Connector Pinout Location

PIN NO.

DESCRIPTION

1 LCD

BKLTCTL

2 GND

3 +12V

4 GND

5 BACKLIGHT

ENABLE

Table 3-5: Panel Backlight Connector Pinouts

3.2.4 Digital I/O Connector

CN Label:

DIO1

CN Type:

10-pin header (2x5)

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.
