KINO-QM670 Mini-ITX SBC

Page 20

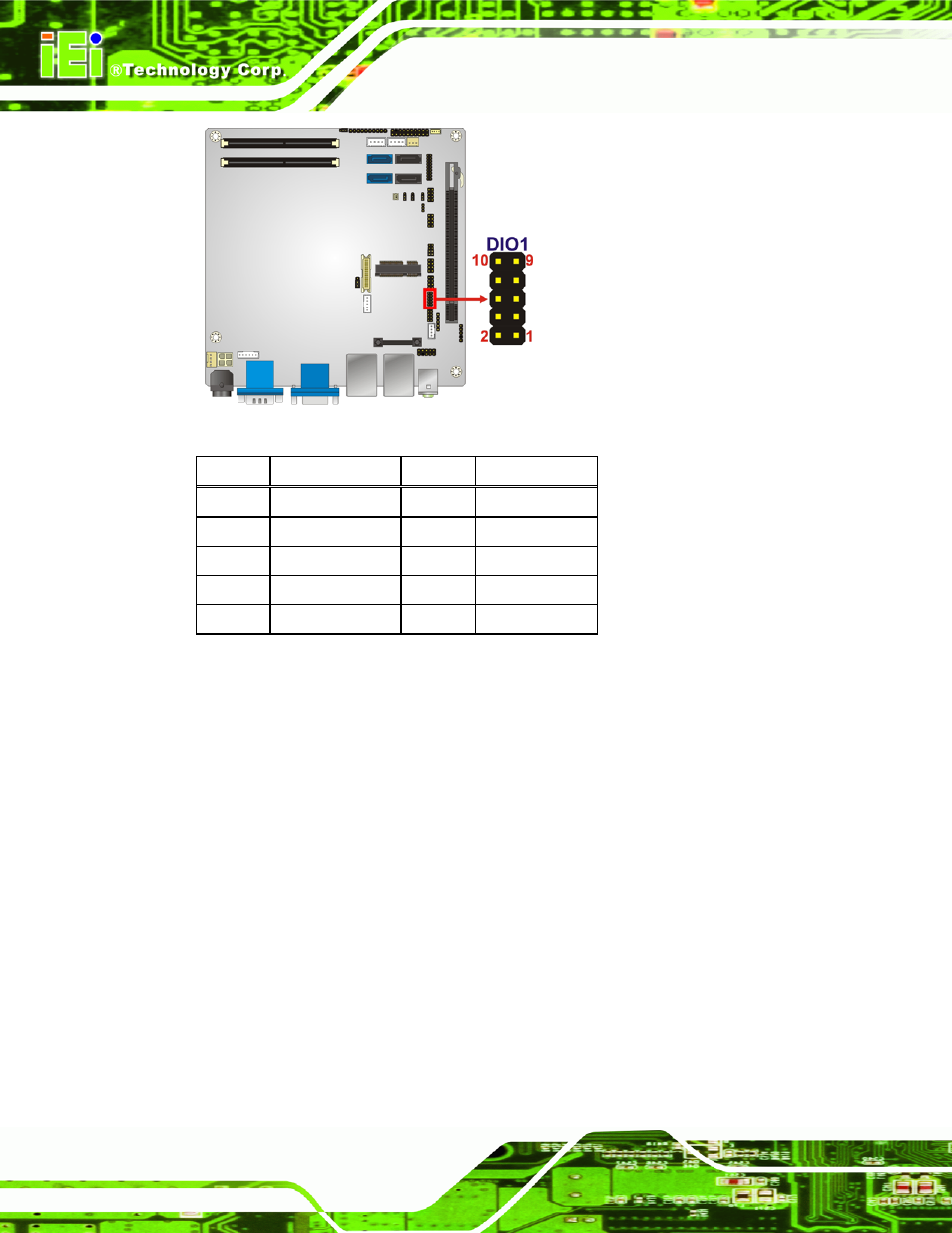

Figure 3-5: Digital I/O Connector Location

Pin Description Pin Description

1 GND

2 VCC

(+5V)

3 Output

3 4 Output

2

5 Output

1 6 Output

0

7 Input

3

8 Input

2

9

Input 1

10

Input 0

Table 3-6: Digital I/O Connector Pinouts

3.2.5 EC Debug Port

CN Label:

CN6

CN Type:

18-pin header

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-7

The connector is for EC debug only.
