6 RX+
7 GND
Table 3-16: SATA Drive Connector Pinouts
3.2.15 SATA Power Connector
CN Label: CN1, CN3
CN Type: 4-pin wafer (1x4)
CN Location: See Figure 3-16
CN Pinouts: See Table 3-17
The SATA Power Connector provides +5V and +12V power output to the SATA
connector.

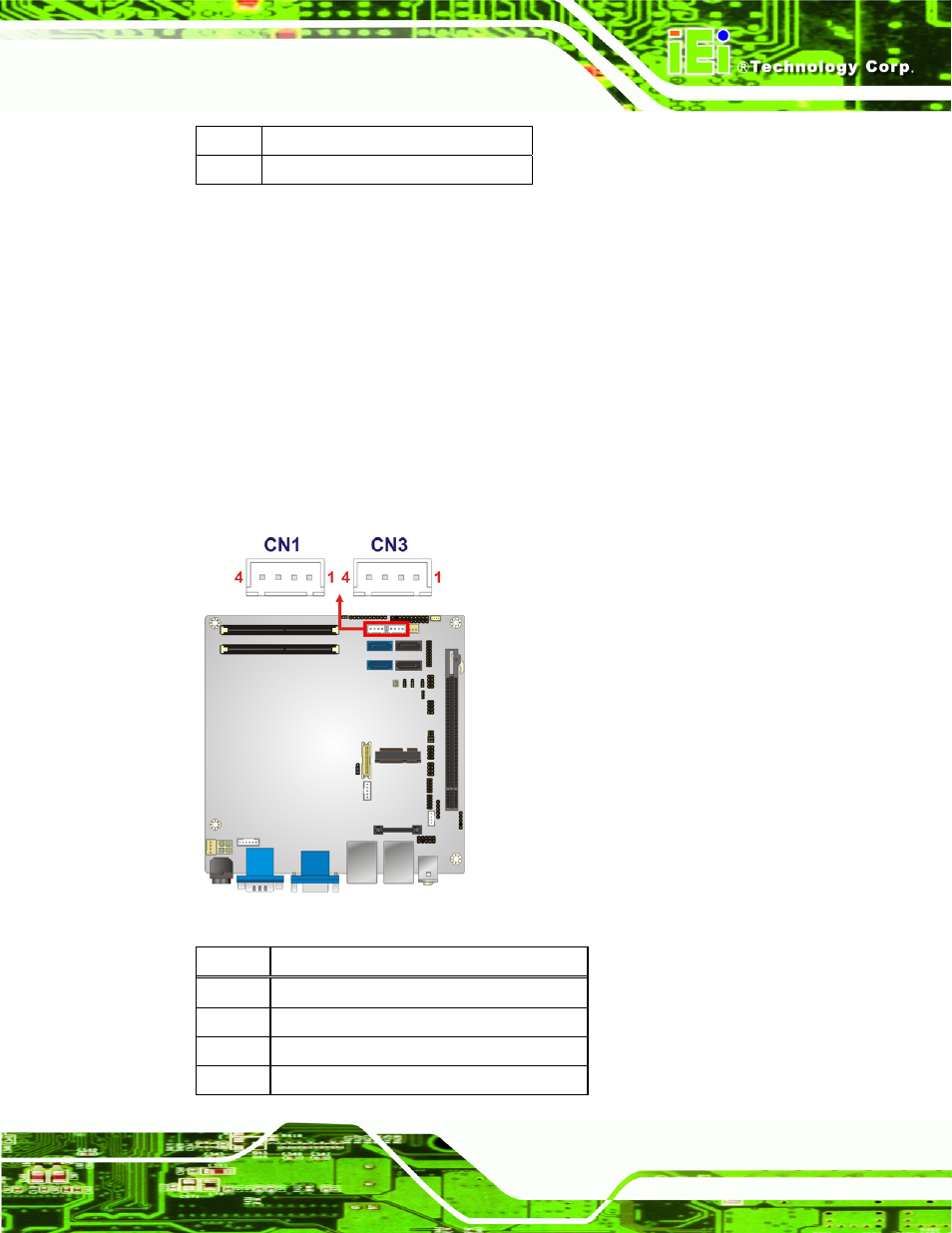

Figure 3-16: SATA Power Connector Location
PIN NO. DESCRIPTION
1 +12V
2 GND
3 GND
4 +5V
