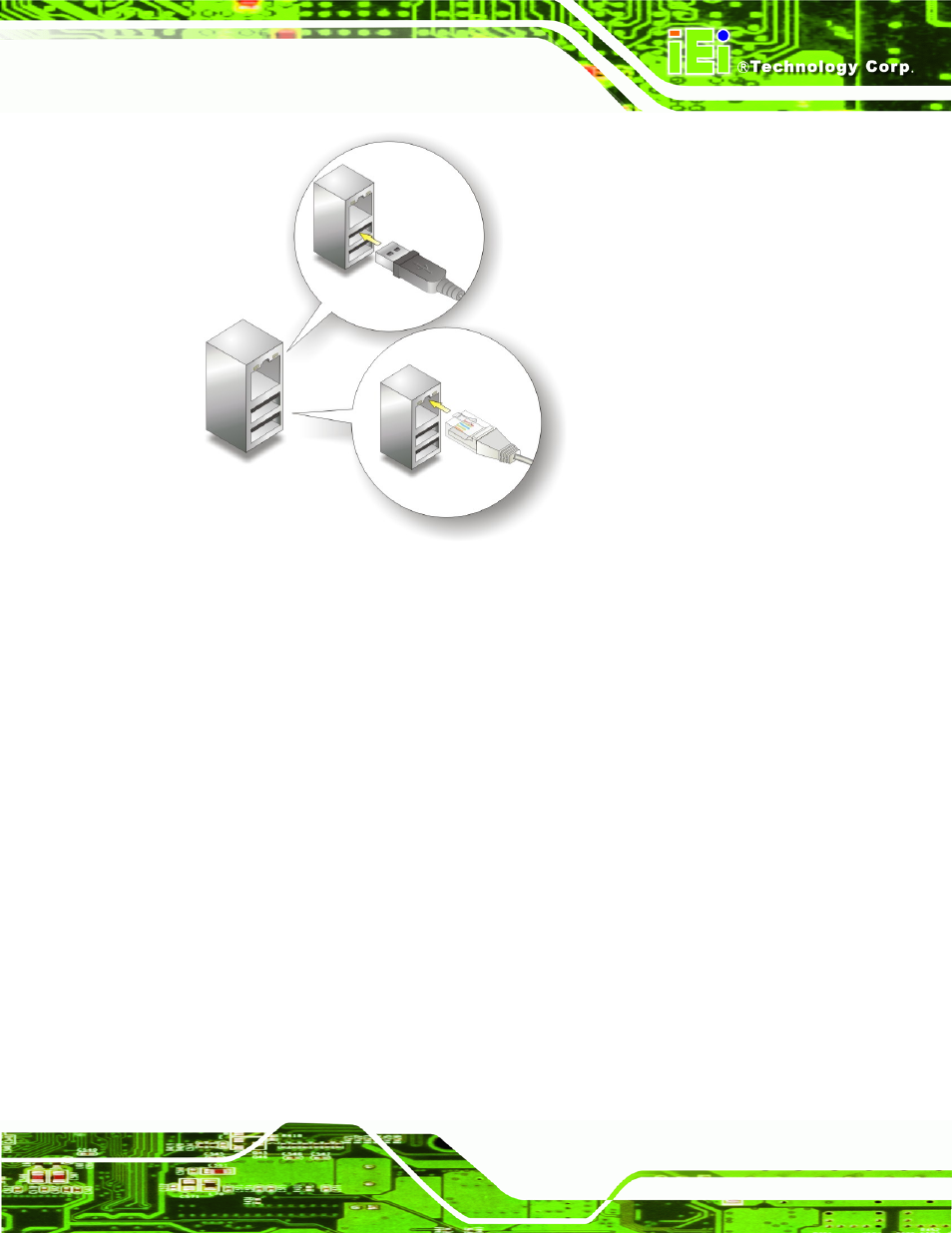

Figure 4-16: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the onboard RJ-45 connector. See

Figure 4-16.

Step 4:

Insert a USB Series "A" plug.

Insert the USB Series "A" plug of a device into

the USB Series "A" receptacle on the external peripheral interface. See

Figure

4-16.

4.8.3 Serial Device Connection

The KINO-QM57A has a single female DB-9 connector on the external peripheral

interface panel for a serial device. Follow the steps below to connect a serial device to the

KINO-QM57A.

Step 1:

Locate the DB-9 connector. The location of the DB-9 connector is shown in

Chapter 3.

Step 2:

Insert the serial connector.

Insert the DB-9 connector of a serial device into

the DB-9 connector on the external peripheral interface. See Figure 4-17.
