KINO-QM57A Mini-ITX SBC

Page 66

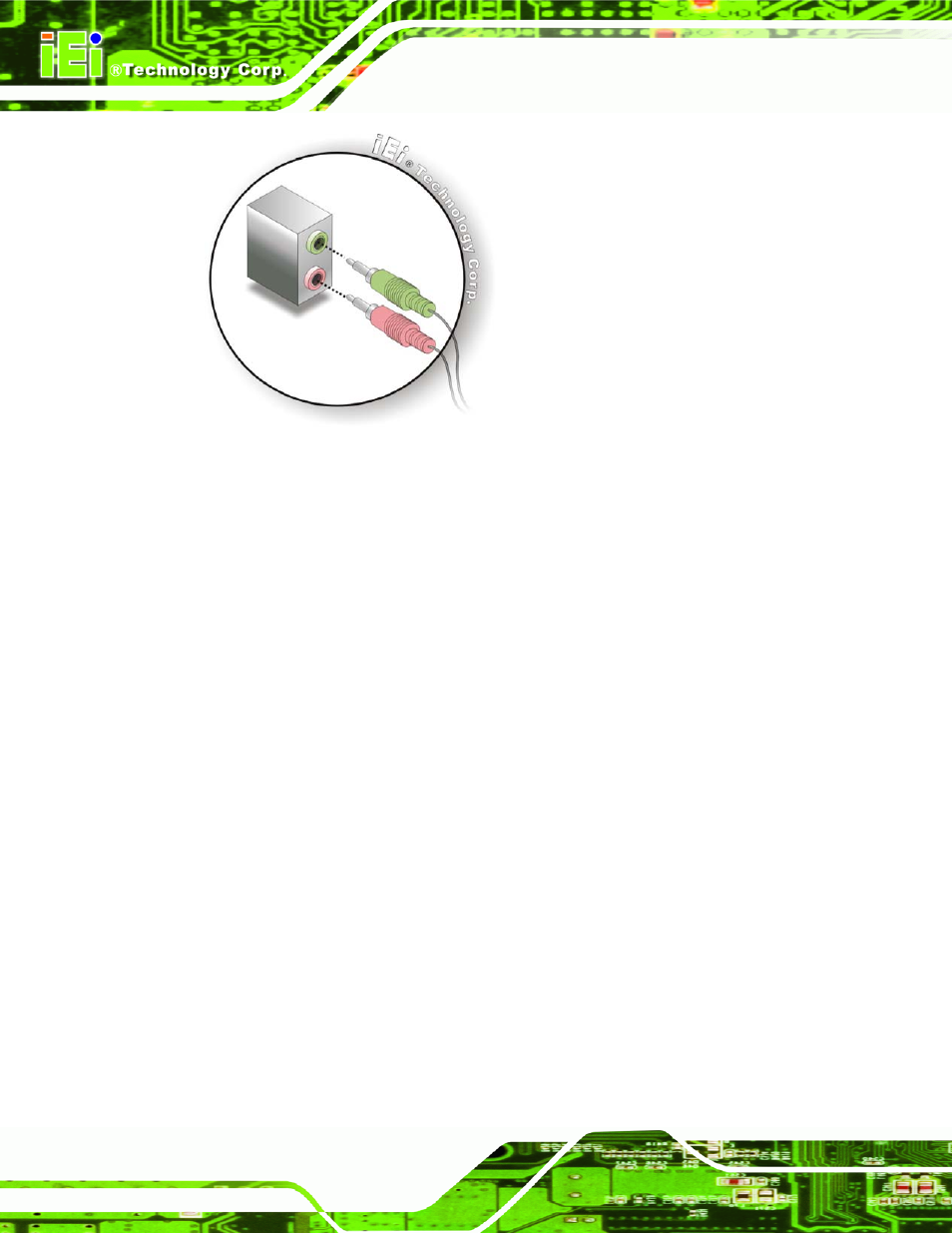

Figure 4-15: Audio Connector

Step 3:

Check audio clarity. Check that the sound is coming through the right speakers

by adjusting the balance front to rear and left to right.

Step 0:

4.8.2 LAN and USB Connection

There are two external RJ-45 LAN connectors and four USB connectors on the

KINO-QM57A. The RJ-45 connectors enable connection to an external network. The

external USB Series "A" receptacle connectors provide easier and quicker access to

external USB devices. Follow the steps below to connect USB devices and LAN cable to

the KINO-QM57A.

Step 1:

Locate the RJ-45 and USB connectors. The locations of the RJ-45 and USB

connectors are shown in Chapter 4.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the KINO-QM57A.
