KINO-QM57A Mini-ITX SBC
Page 124

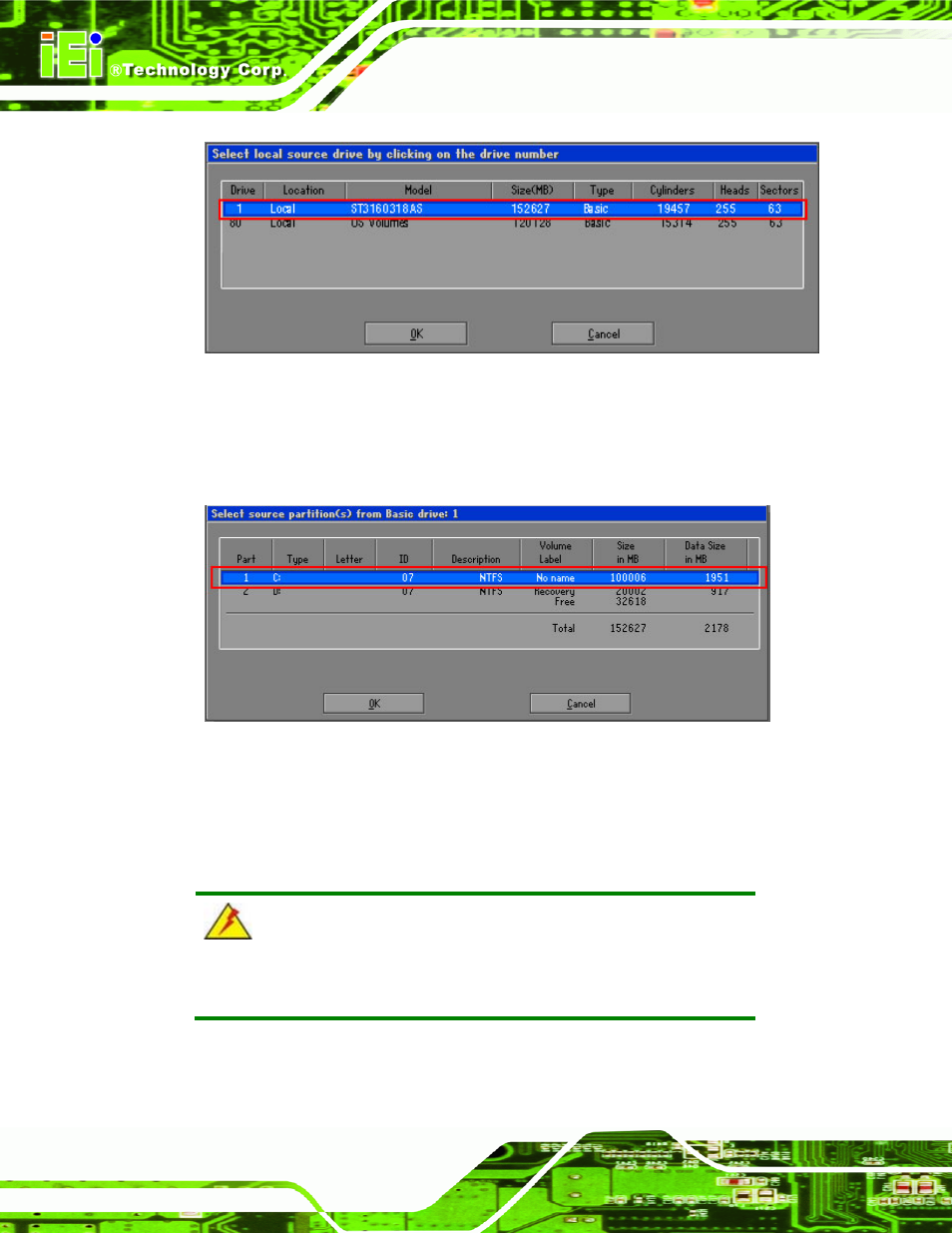

Figure C-14: Select a Local Source Drive
Step 6: Select a source partition (Part 1) from basic drive as shown in
78
Figure A-4. Then
click OK.
Figure C-15: Select a Source Partition from Basic Drive
Step 7: Select 1.2: [Recovery] NTFS drive and enter a file name called iei (
78
Figure A-5).
Click Save. The factory default image will then be saved in the selected
recovery drive and named IEI.GHO.
WARNING:
The file name of the factory default image must be iei.GHO .
