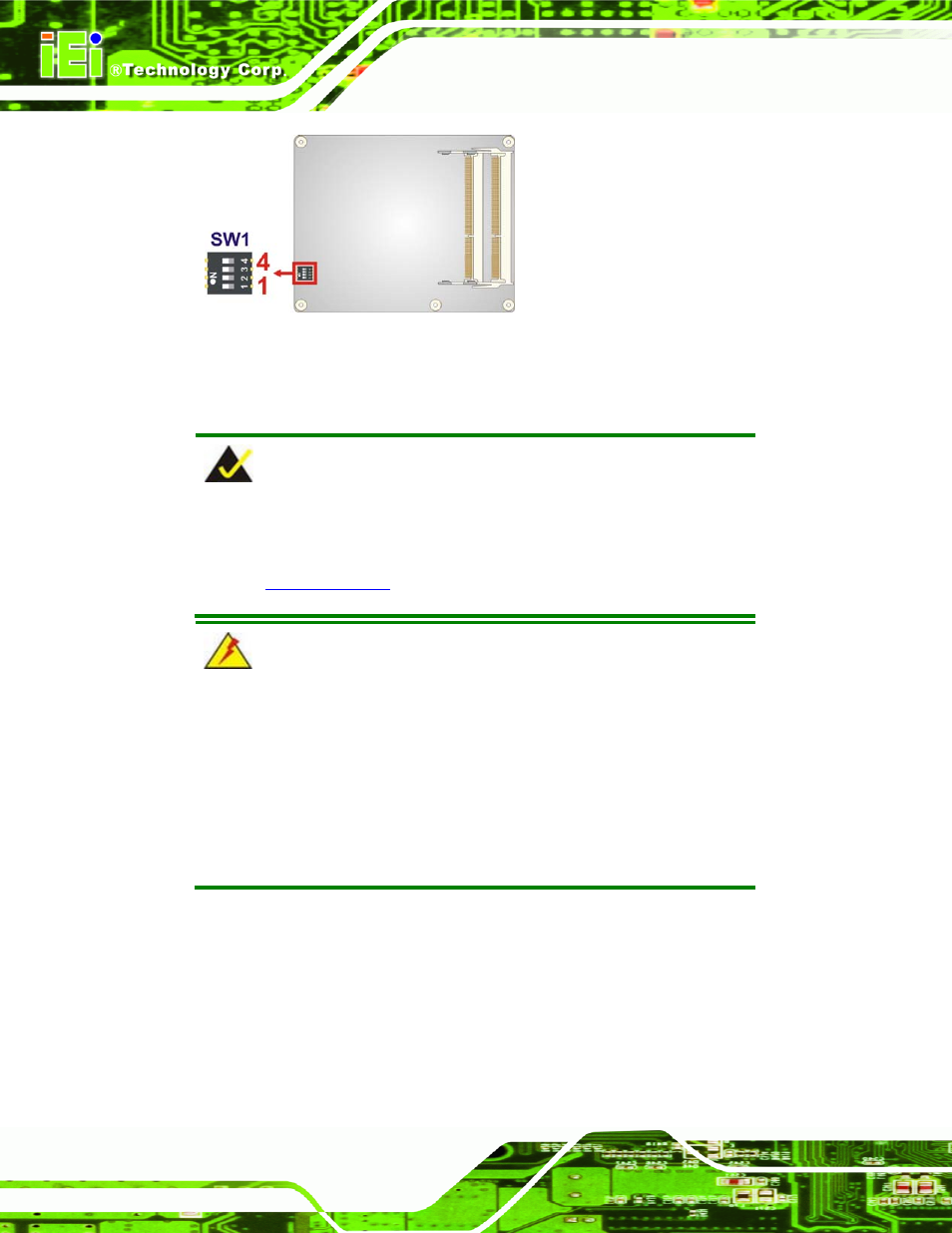

Figure 4-4: LVDS Panel Type Selection Switch Location
4.6 Mounting the ICE-QM770 to an Optional Baseboard
NOTE:
Baseboard can be designed by the end user, customized by IEI, or
purchased from IEI. For more information visit the IEI website
( www.ieiworld.com ) or contact an IEI sales representative.
WARNING:
Never run the COM Express module without the cooling kit. The
heatspreader plate shipped with the ICE-QM770 acts as a thermal
interface between the module and the cooling kit. The cooling kit must
be installed on the heatspreader plate to maintain proper operating
temperatures. Make sure to maintain the heatspreader plate
temperature under 60
°C in operation.
Follow the steps below to install the ICE-QM770 to the optional baseboard.
Step 1: Align the two COM Express connectors on the reverse side of ICE-QM770 with
the corresponding connectors on the baseboard. Gently push the COM Express
module down to ensure the connectors are properly connected (Figure 4-5).
