ICE-QM770 COM Express Module
Page 2
1.1 Introduction

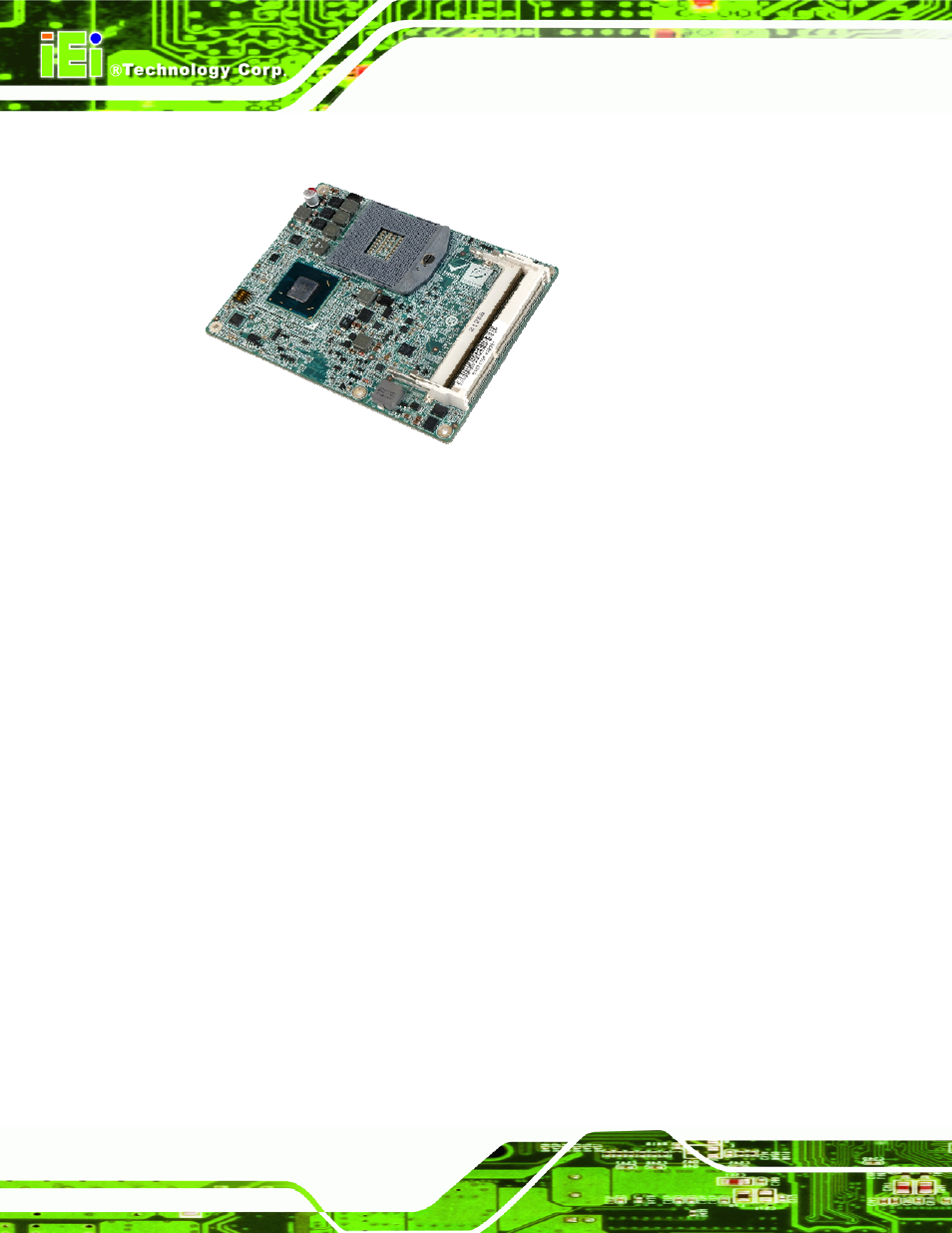

Figure 1-1: ICE-QM770
The ICE-QM770 COM Express module provides the main processing chips and is
connected to a compatible COM Express baseboard. The ICE-QM770 is equipped with
the Intel® QM77 Express Chipset and Socket G2 that supports 2nd and 3rd generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors. The COM Express standard
allows the COM Express baseboard to be designed, while leaving the choice of processor
till the later stages of design. The ICE-QM770 provides a low power option with the full
range of modern I/O options. The ICE-QM770 embedded module is designed for flexible
integration by system developers into customized platform devices.
1.2 Features
Some of the ICE-QM770 COM Express module features are listed below:
Complies with COM Express form factor
Socket G2 supports 2nd and 3rd generation Intel® Core™ i7/i5/i3, Pentium®
and Celeron® processors
Intel® QM77 Express Chipset
Supports DDR3/DDR3L (1.35V) SO-DIMM
Supports 18-/24-bit dual-channel LVDS, analog CRT (VGA) and HDTV
Supports USB 3.0, SATA 6Gb/s and GbE
RoHS compliant
