ICE-QM770 COM Express Module

Page 30

4.3 Socket G2 CPU Installation

WARNING:

CPUs are expensive and sensitive components. When installing the CPU,

please be careful not to damage it in anyway. Make sure the CPU is

installed properly and ensure the correct cooling kit is properly installed.

To install a socket G2 CPU onto the ICE-QM770, follow the steps below:

WARNING:

When handling the CPU, only hold it on the sides. DO NOT touch the

pins at the bottom of the CPU.

Step 1:

Unlock the CPU retention screw. When shipped, the retention screw of the

CPU socket should be in the unlocked position. If it is not in the unlocked

position, use a screwdriver to unlock the screw. See Figure 4-1.

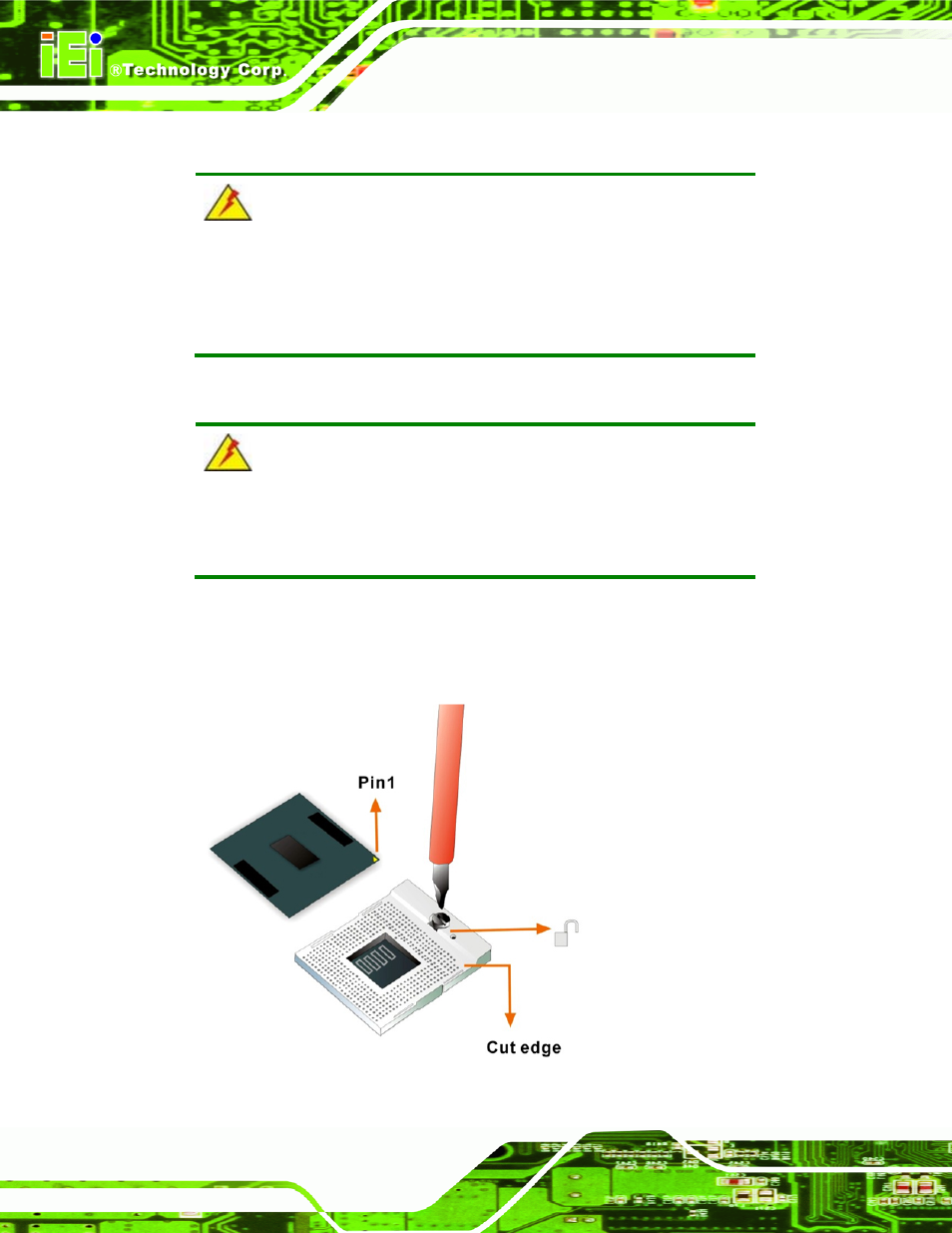

Figure 4-1: Unlock CPU socket retention screw
