4.4 SO-DIMM Installation
WARNING:
Using incorrectly specified SO-DIMM may cause permanent damage to
the ICE-QM770. Please make sure the purchased SO-DIMM complies
with the memory specifications of the ICE-QM770. SO-DIMM
specifications compliant with the ICE-QM770 are listed in Chapter 1.
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 4-3.

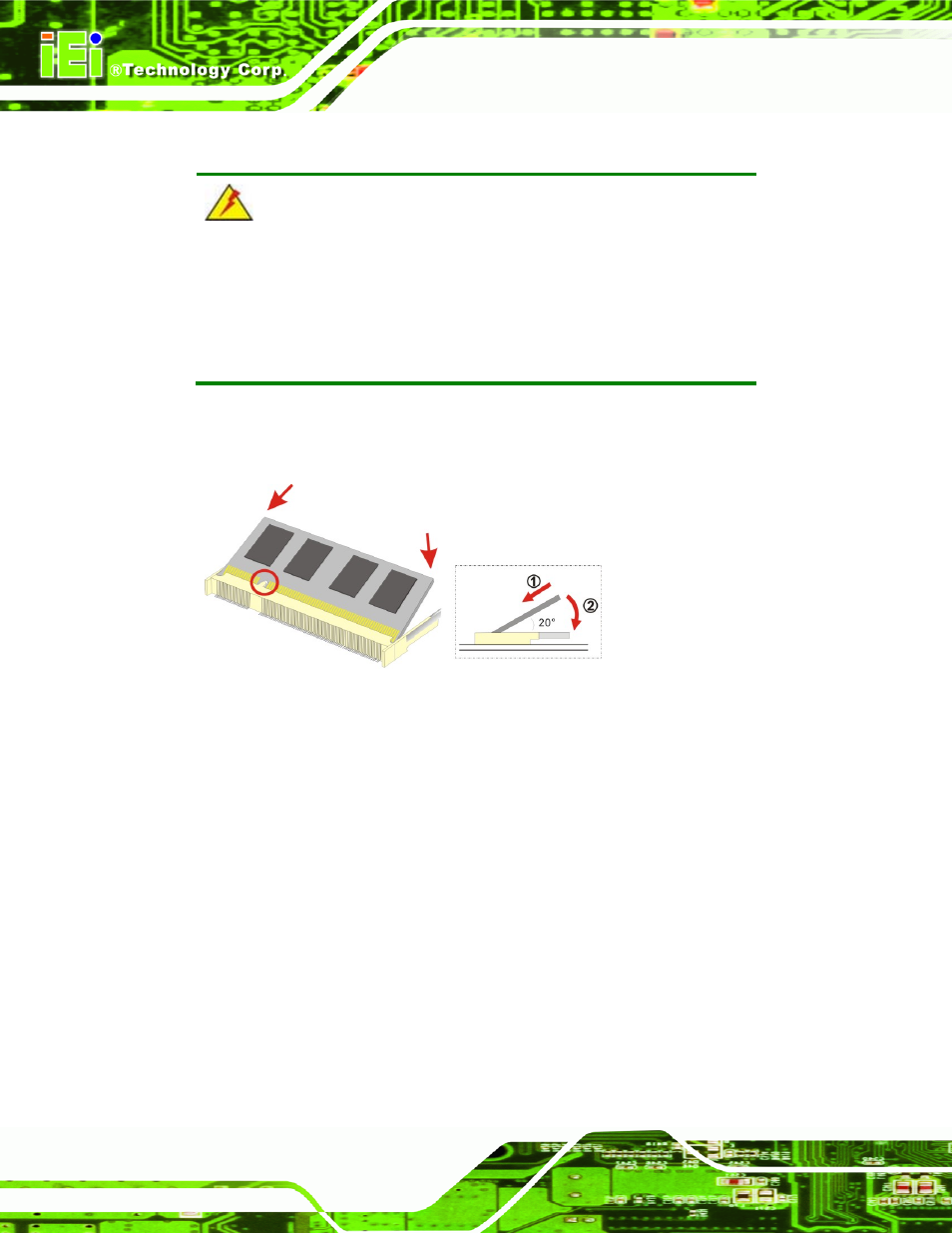

Figure 4-3: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the ICE-QM770 on an anti-static pad with
the solder side facing up.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the plastic
bridge in the socket.
Step 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See
Figure 4-3)
Step 4: Open the SO-DIMM socket arms. Gently pull the arms of the SO-DIMM socket
out and push the rear of the SO-DIMM down. (See Figure 4-3)
Step 5: Secure the SO-DIMM. Release the arms on the SO-DIMM socket. They clip into
place and secure the SO-DIMM in the socket.
