PCISA-945GSE CPU Card

Page 58

Step 5:

Locate the audio connector. The location of the 10-pin audio connector is

shown in Chapter 3.

Step 6:

Align pin 1. Align pin 1 on the on-board connector with pin 1 on the audio kit

cable connector. Pin 1 on the audio kit cable connector is indicated with a white

dot. See Figure 4-5.

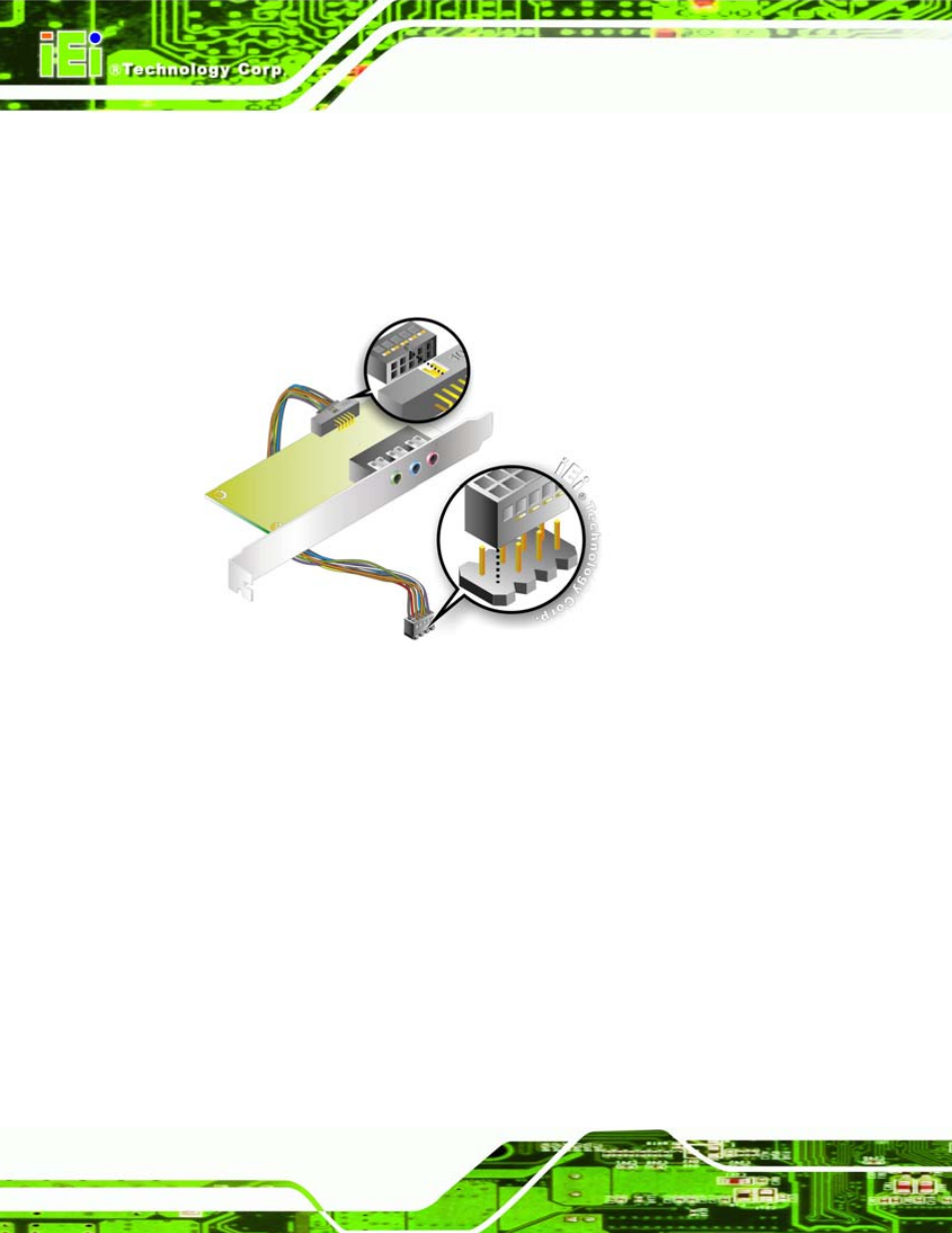

Figure 4-5: 5.1 Channel Audio Kit

Step 7:

Mount the audio kit onto the chassis. Once the audio kit is connected to the

PCISA-945GSE, secure the audio kit bracket to the system chassis.

Step 8:

Connect the audio devices. Connect one speaker to the line-in audio jack, one

speaker to the line-out audio jack and a microphone to the mic-in audio jack.

Step 9:

Install the driver. If the 5.1 channel audio kit is used, the ALC655 Realtek

codec driver must be installed. Refer to Chapter 7 for driver installation

instructions.
