PCISA-945GSE CPU Card

Page 87

5.3.4 Super IO Configuration

Use the Super IO Configuration menu (

7

BIOS

Menu

7) to set or change the

configurations for the FDD controllers, parallel ports and serial ports.

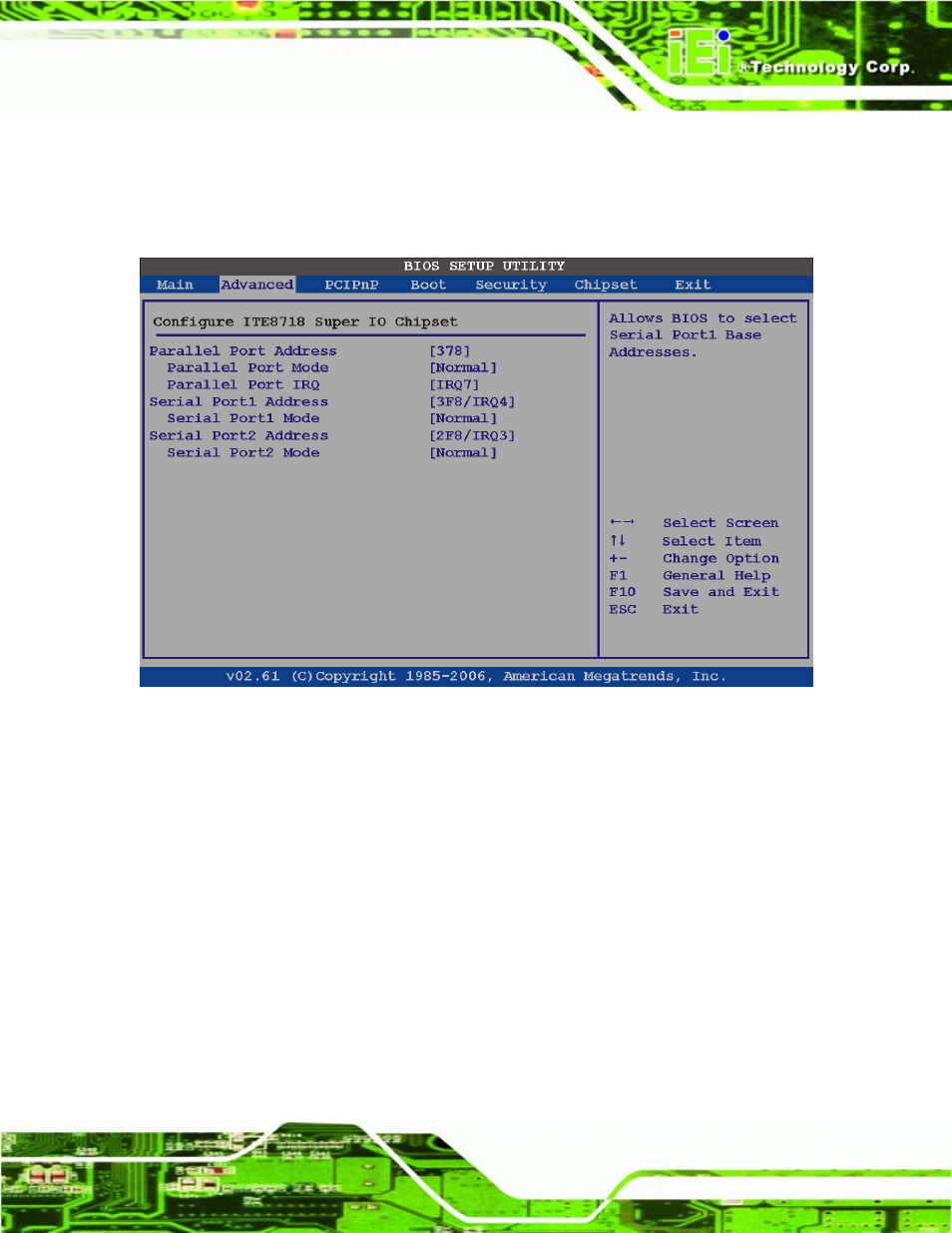

BIOS Menu 7: Super IO Configuration

ƒ

Parallel Port Address [Disabled]

Use the Parallel Port Address option to select the parallel port base address.

Î

Disabled

D

EFAULT

No base address is assigned to the Parallel Port

Î

378

Parallel Port I/O port address is 378

Î

278

Parallel Port I/O port address is 278

Î

3BC

Parallel Port I/O port address is 3BC

ƒ

Parallel Port Mode [Normal]

Use the Parallel Port Mode option to select the mode the parallel port operates in.
