PCISA-945GSE CPU Card

Page 31

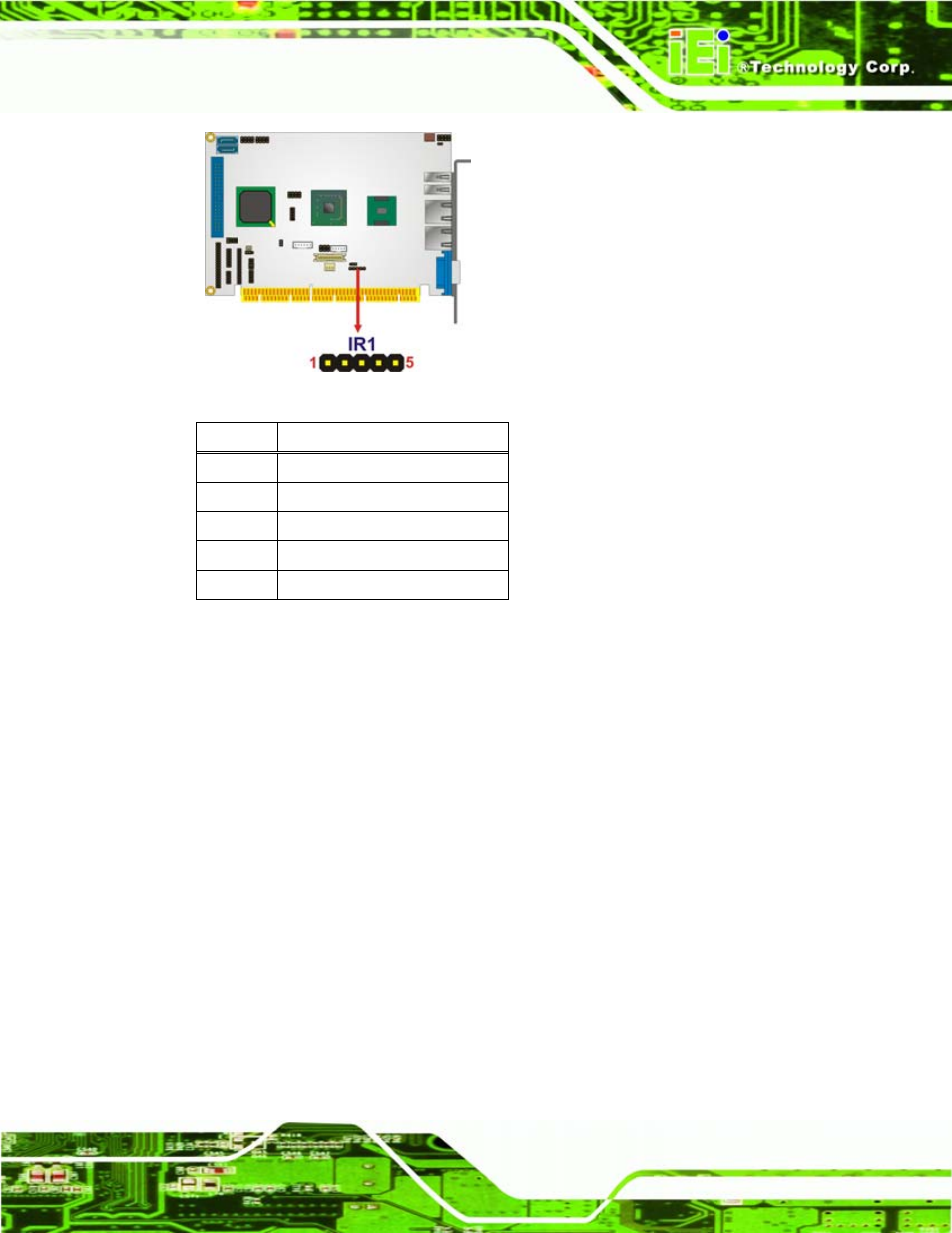

Figure 3-14: Infrared Connector Pinout Locations

PIN NO.

DESCRIPTION

1

VCC

2

NC

3

IR-RX

4

GND

5

IR-TX

Table 3-14: Infrared Connector Pinouts

3.2.13 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin box header (1x6)

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-15

The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2

Y-cable to add keyboard and mouse functionality to the system.
